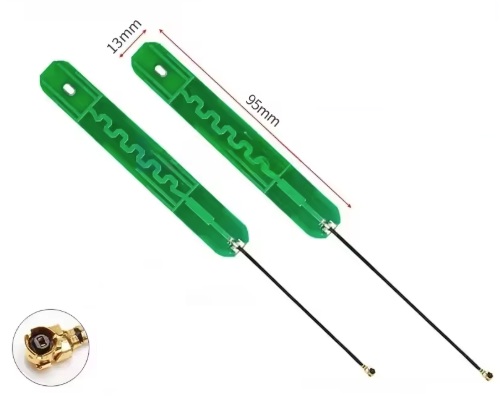

This high-gain PCB antenna supports both 2.4GHz and 5GHz frequency bands, ideal for Wi-Fi and Bluetooth applications. It features an IPEX MHF I (U.FL-compatible) connector and a RG1.13 coaxial cable. The rigid PCB ensures signal consistency.
Specifications
- Antenna Type: PCB (Printed Circuit Board)
- Frequency Bands:
- 2.4GHz: 2400–2500 MHz
- 5GHz: 5150–5850 MHz
- Gain: 8dBi
- Impedance: 50Ω
- VSWR: ≤ 2.0 (typical)
- Antenna Dimensions: 95mm × 13mm
- Cable Type: RG1.13 coaxial
- Cable Length: ~13cm
- Connector: IPEX MHF I (U.FL-compatible, 1st Generation)
- Mounting: Internal mounting (screw, adhesive, or slot-based depending on housing)
- Operating Temperature: -40°C to +85°C
