Works for GSM/GPRS/2G/3G module, Security alarm, Power monitoring, Smart home and so on.
SPECIFICATIONS:

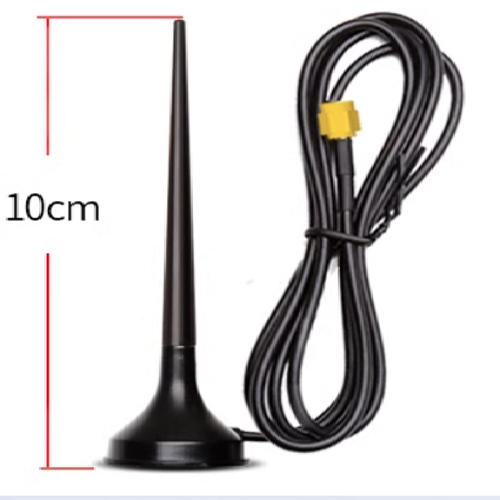

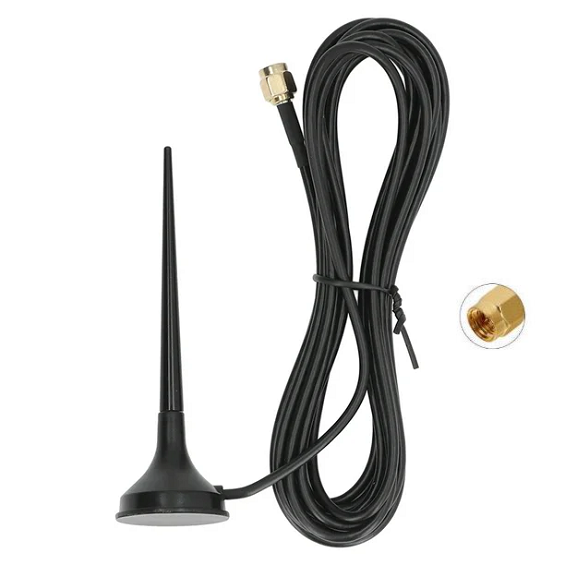

- Item Type: Antenna
- Model: XP-GSM-010
- Material: Copper
- Function: For signal transmission and gain.
- Working Frequency: 700-2700mhz
- Antenna Gain: 5dbi
- Standing Wave Ratio: Less than or equal to .5
- Impedance: 50 Ohm
- Polarization Method: Vertical Polarization
- Maximum Power: 100W
- Antenna Interface: SMA Male Head
- Working Temperature: -40 degrees Celsius ~+85 degrees Celsius
- Storage Temperature: -20~40 degrees Celsius
- Feeder Type: RG174
