The Waveshare 31752 is the Pico-GPS-L76K module which is the L76K GNSS Module for Raspberry Pi Pico, GPS / BeiDou (BDS) / GLONASS / QZSS Support, supports A-GNSS Function.
Part: Pico-GPS-L76K (Raspberry Pi Pico 2 is NOT included)
Package Contents:
1. Pico-GPS-L76K x1
2. GPS Antenna x1
L76K GNSS module for Pico
GNSS module based on L76K, designed for Raspberry Pi Pico
Features
The Pico-GPS-L76K is a GNSS module designed for Raspberry Pi Pico, supports GPS, BeiDou (BDS), GLONASS and QZSS systems, allows multi-system combined or single-system independent positioning. Supports AGNSS function, and offers advantages such as fast positioning, high accuracy, and low power consumption. Combined with the Raspberry Pi Pico / , it's easy to use global navigating function.

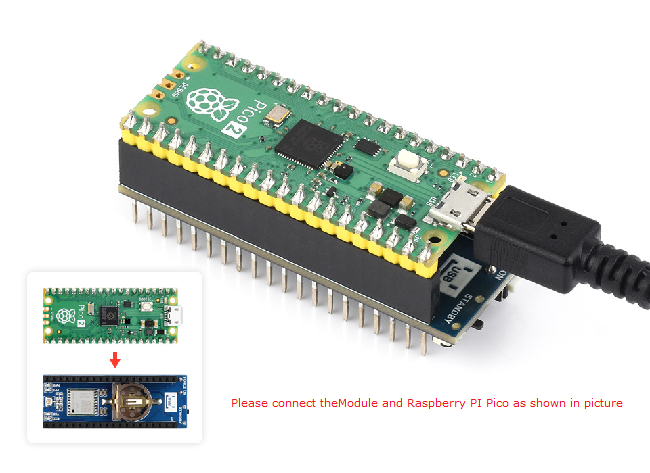

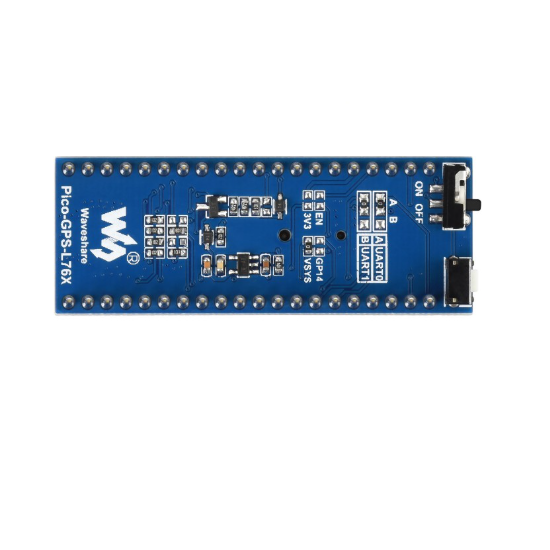

- Standard Raspberry Pi Pico header, supports Raspberry Pi Pico series boards
- Supports Multi-GNSS systems: GPS, BeiDou (BDS), GLONASS and QZSS
- Built-in Low-Noise Amplifier (LNA) for improved reception sensitivity
- Built-in SAW Filter for enhanced noise reduction performance
- Supports AGNSS
- UART communication baud rate: 4800~115200bps (9600bps by default)
- Onboard battery holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
- 4x LEDs for indicating the module operating status
- Comes with online development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
|
GNSS parameters |
|
|
GNSS |
GPS/GLONASS/BDS/QZSS |
|
Chip Platform |
AT6558R |
|
L1 Band Receiver |
32 tracking ch/ 72 acquisition ch |
|
L1 Band Receiver |
N/A |
|
A-GNSS |
Support |
|
Sensitivity |
-148dBm |
|
Sensitivity |
-160dBm |
|
Sensitivity |
-162dBm |
|
TTFF (Time to first fix) |
30s, Autonomous |
|
TTFF (Time to first fix) |
2s |
|
Position accuracy |
2.0m CEP |
|
Speed accuracy |
0.1m/s |
|
Acceleration accuracy(Max) |
0.1m/s² |
|
Timing accuracy |
30ns |
|
Others |
|
|
Communication interface |
UART |
|
Baudrate |
4800~115200bps (9600bps by default) |
|
Update rate |
1Hz (default), 5Hz (max) |
|
Protocols |
NMEA 0183, CASIC Proprietary Communication Protocol |
|
Power supply voltage |
5V |
|
Overall current consumption |
< 40mA@5V (Continue mode) |
|
Operating temperature |
-40℃ ~ 85℃ |
|
Dimensions |
55.95 × 21.00 (mm) |

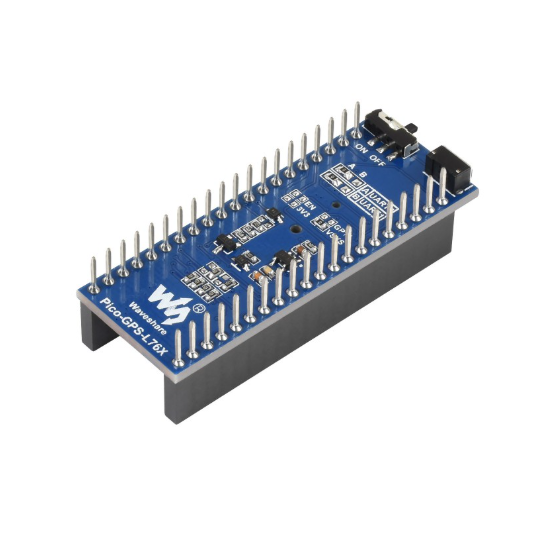

Raspberry Pi Pico header compatibility
Onboard female pin header for direct attaching to Raspberry Pi Pico 2
Augment systems support
Augment system is aimed at improving the accuracy, integrity, reliability,
and availability of positioning and navigation
Supports A-GNSS augment system4

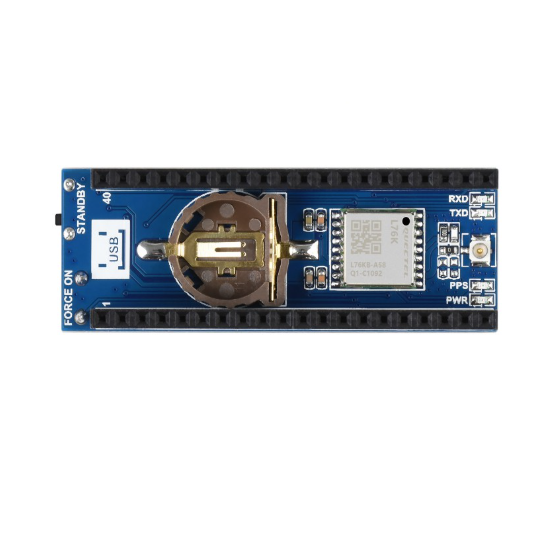

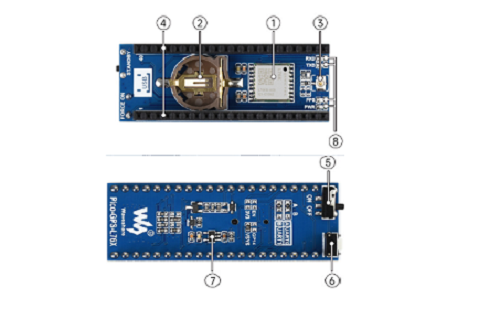

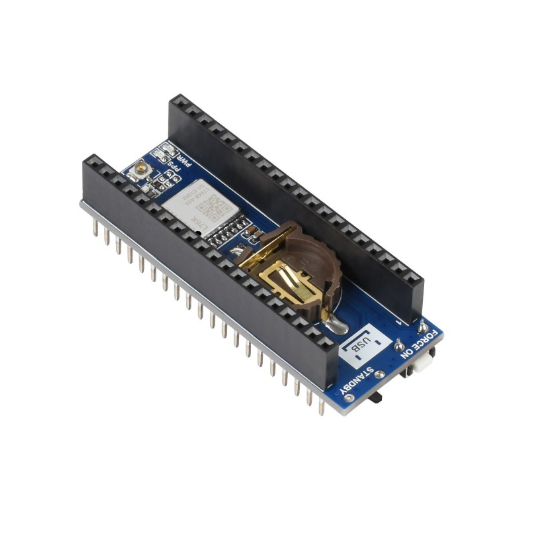

What's on board
1. L76K module
2. Battery holder
supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
3. GNSS antenna connector
4. Raspberry Pi Pico header
5. Standby mode switch
6. GNSS configuration button
7. RT9193-33
power chip
8. Status indicators
RXD/TXD: UART TX/RX indicator
PPS: GPS status indicator
PWR: power indicator

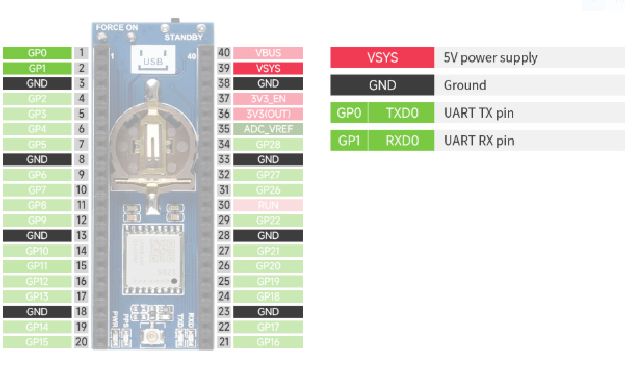

Pinout definition

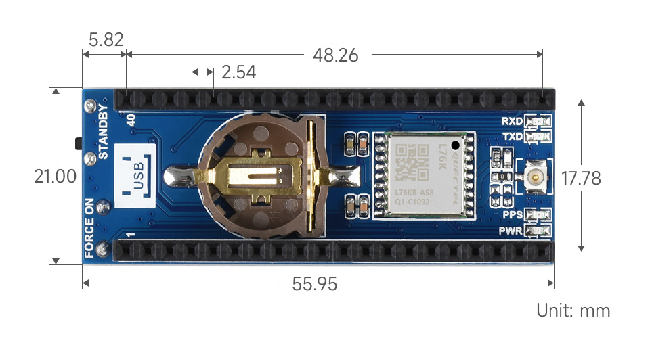

Outline dimensions
Wiki: Pico-GPS-L76K
