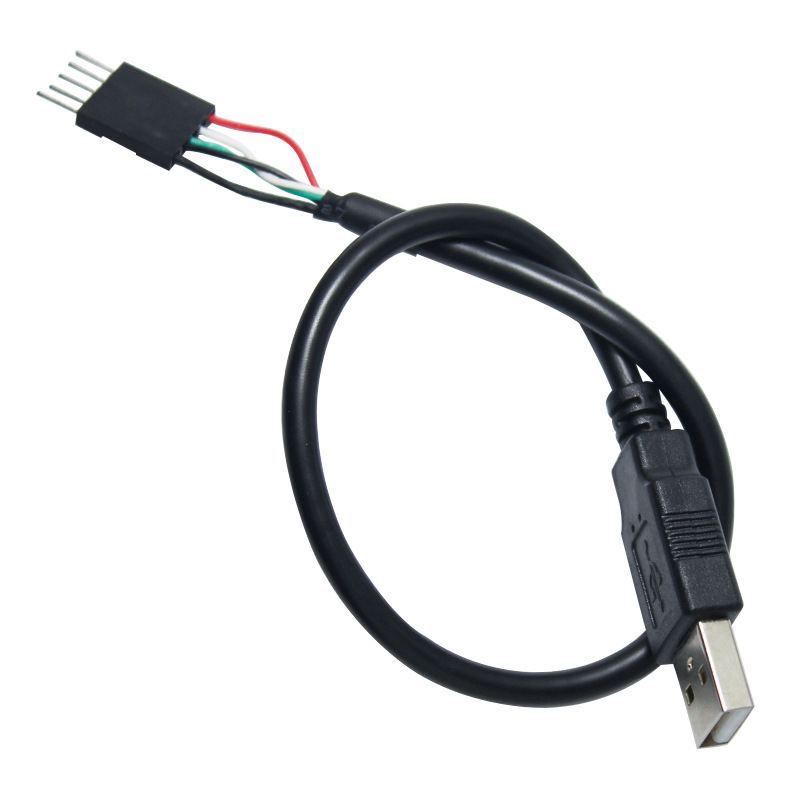

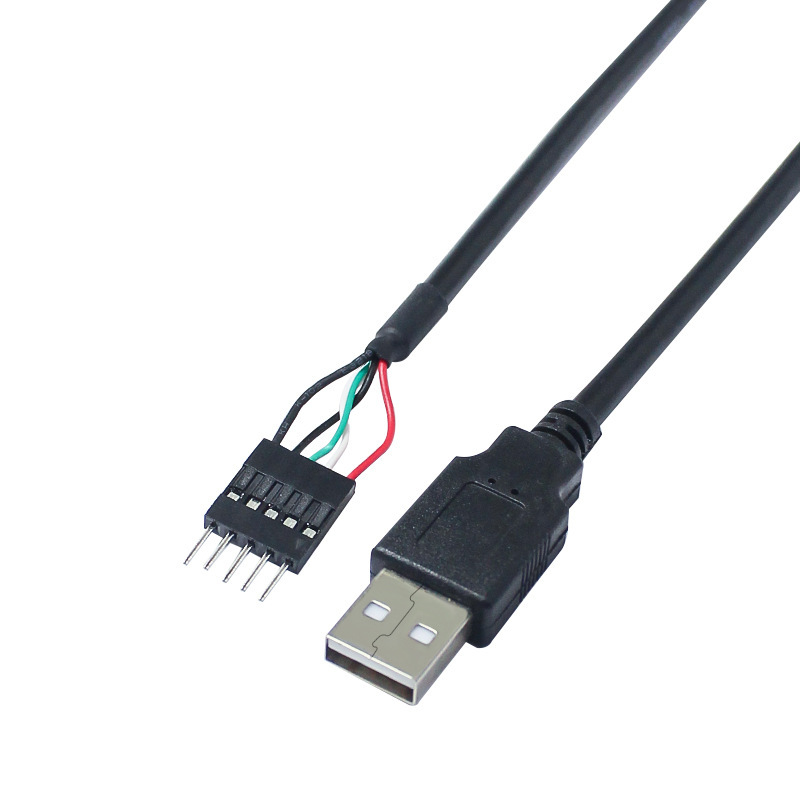

This 5-pin cable connects a standard USB 2.0 interface to a 5-pin Dupont male connector. Built with UL2725 AWM cable, it supports data and power transmission for embedded boards, sensors, and DIY electronics projects. Ideal for low-current devices needing USB connectivity.
Specifications:
- Connector A: USB 2.0 (Type-A or as specified)
- Connector B: 5-pin Dupont male
- Connection Type: USB to Dupont male
- Wire Type: UL2725 AWM cable, 26 AWG × 2 conductors (power) + 28 AWG × 1 twisted pair (data)
- Conductor Structure and Color Coding:
- Red: VCC (5V)
- Black: GND
- White: D– (data minus)
- Green: D+ (data plus)
- Yellow: optional signal / NC, typically enveloped in black tape for insulation
- Insulation Material: Flame-retardant PVC (VM-1 rated)
- Rating as per UL2725 standard:
- Temperature Rating: Up to 80°C
- Voltage Rating: 30 V AC/DC
- Application: Ideal for connecting USB devices to embedded boards, sensors, or modules with 5-pin headers
- Cable Design: Flexible, compact, and durable for prototyping and low-current connections
- Compliance: UL2725 standard for safe operation
