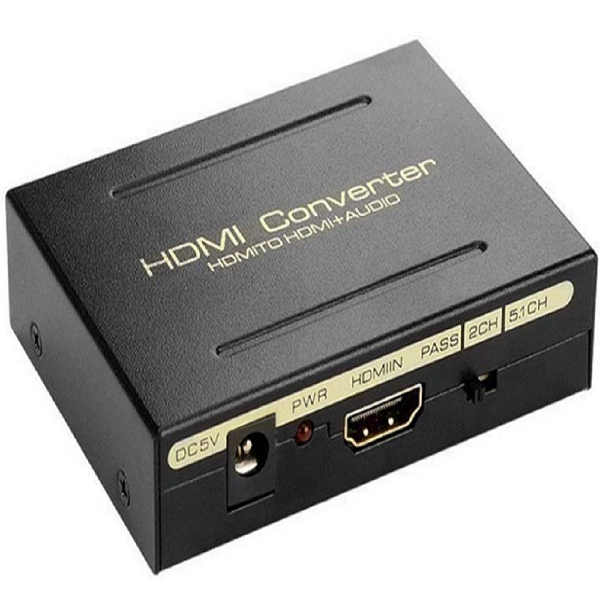

This is a high-performance, multi-functional high-definition audio extractor converter. This product will extract HDMI audio and output standard Optical Digital Audio and L/R Stereo for easy integration with your existing surround sound system.
Features：
1. Converts HDMI input to an HDMI output, an optical audio output and an R/L analog audio output
2. Audio output support: optical fiber + R/L analog audio output
3. Input resolution: up to 1080p(50/60Hz)
4. Able to achieve synchronous separation of audio signals.
Three audio modes, PASS/2.0CH/5.1CH, are available.
5. LED indicator: When the converter is powered on, the red LED will light up; when it is successfully connected to a high-definition TV, the green LED will light up.
Specifications:
Support resolution...1080p@50/60Hz/1080i/720p/1576i/480p/480i
Support video color format......................24bits/deep color 30bit,36bit
Audio output........................................ ..L/R+fiber
Maximum bandwidth................................................ .....340MHz
Maximum transfer rate................................................ 10.2Gbps
Input/output TMDS signal........................0.5-1.5Volts p-p(TTL)
Input/output DDC signal........................5Volts p-p(TTL)
Input cable distance........................<=7m AWG26 standard cable HDMI
Output cable distance........................<=8m AWG26 standard cable HDMI
Maximum operating current................................................ ..500mA
Power format......................Input: AC (50/60Hz) 100V-240V; Output: DC5V/1A
Operating temperature range........................(-15 to +55°C)
Operating Moderate Range........................5 to 90% RH (non-condensing)
Dimensions: (L X W X H): 84.5*60.6*21mm

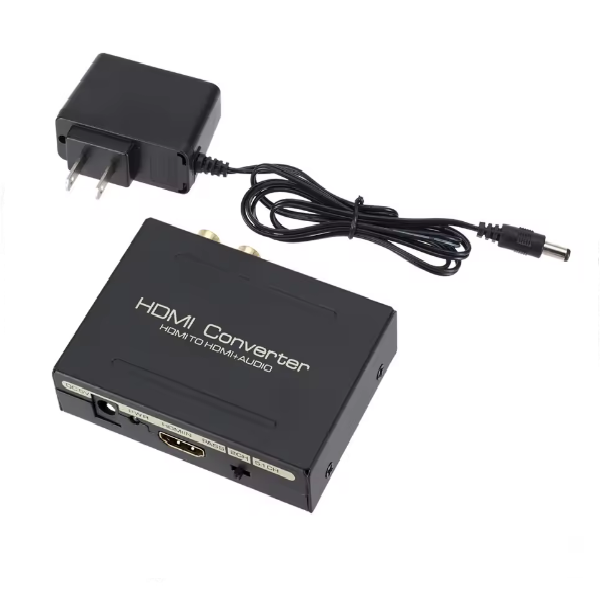

Contents:
Converter........................................ .......1pcs
5V 1A power adapter (USB cable/US) ........................1pcs
User Manual........................................................1pcs
