With its compact size and robust protection features, the HLK-10M series is an ideal choice for a cost-effective and reliable AC-DC power solution.
Features:
- Compact Design: Smallest form factor for space-constrained applications.
- High Efficiency & Low Power Consumption: No-load power loss <0.1W for energy savings.
- Reliable Performance: Built-in short-circuit, overcurrent protection, and self-recovery.
- High Isolation & Safety Compliance: 3000V AC isolation voltage, meets UL, CE, EMC standards.
- Rugged & Durable: Encased in IP65-rated waterproof plastic potting, offering moisture, dust, and vibration resistance.
- Long Lifespan: MTBF of 100,000+ hours, ensuring long-term reliability.
Technical Specifications:
- Input Voltage: 85-264V AC / 70-350V DC
- Output Power: 10W

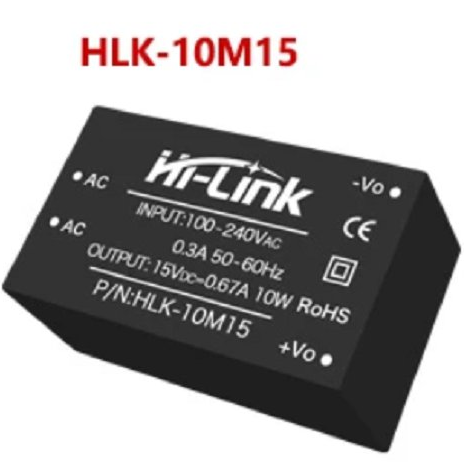

- Model Number, Output Voltage & Current: HLK-10M15: 15V / 660mA
- Operating Temperature: -25°C to +60°C
- Storage Temperature: -40°C to +80°C
- Humidity: 5-95% RH
- Cooling Method: Natural air convection
- Altitude: <2000m
- Vibration Resistance: Compliant with secondary road transport standards
Applications:
- IoT Devices & Smart Home Systems
- Industrial Automation & Control Systems
- Embedded Electronics & Prototyping
- Power Supply for Sensors, Communication Modules
Dimensions & Pin Out Function:
