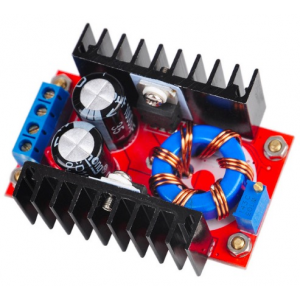

Upgrade your projects with this 10V–32V to 12V–35V DC-DC Boost Converter. It allows you to step up a DC input voltage to a higher, adjustable output.
Features:
- Wide Input Range: 10V–32V DC
- Adjustable Output: 12V–35V DC
- High Power Handling: Up to 150W with cooling (100W natural cooling)
- Current Capacity: Up to 16A input (heatsink required above 10A)
- High Efficiency: Up to 94% conversion efficiency
- Dimensions: 6.5×4.7×2 cm (L×W×H)
Performance & Safety:
- Low no-load current: 25mA typical
- Stable regulation: ±0.5% voltage & load accuracy
- Fast response speed: 200µs
- Operating temperature: –40°C to +85°C
- Ripple: ≤2%
⚠ Note: This module does not include short-circuit or reverse polarity protection. For safe operation, use a fuse or protective circuit at the input.
