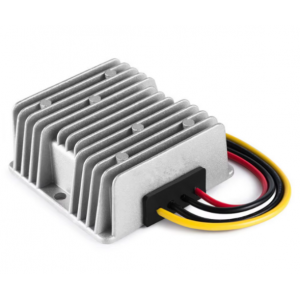

This DC-DC converter is designed to efficiently step up a 12V input to a stable 48V output, making it ideal for various applications that require high-efficiency voltage boosting. Its durable, waterproof aluminum housing ensures reliability in demanding environments.
Features:
- Fully epoxy-sealed design with a die-cast aluminum housing for durability and IP68 waterproof rating.
- Compact, lightweight, and easy to transport.
- Non-isolated with high efficiency (>96%).
- Wide operating temperature range: -40°C to +85°C.
- Overload, over-current, over-voltage, and low-voltage protection with auto-recovery for stable and reliable performance.
Specifications:
- Input Voltage: 12V DC (Range: 9V to 16V)
- Output Voltage: 48V DC ±1.5%
- Maximum Output Current: 5A
- Power Output: 240W
- Ripple: <100mV
- No-Load Current: <0.02A
- Line Regulation: ±0.02%
- Load Regulation: ±0.02%
- Efficiency: ≥96%
- Size: 74mm x 74mm x 32mm
- Weight: 290g
- Waterproof Rating: IP68
- Wire Length: 17cm
- Wire Gauge: 12 AWG
- Shell Material: Die-cast Aluminum alloy
Important Considerations:
- Ensure Sufficient Input Supply Voltage and Power: For optimal performance, the input voltage should be 12V. Make sure the input supply is adequate to ensure that the module can output sufficient voltage and power, especially under average load conditions.
- Multiple Output Cables: If there are multiple output cables, ensure they are used separately to maintain stability and efficiency.
- Cooling: It is crucial to allow adequate cooling for the power module if the output is at the maximum current value. This helps prevent overheating and ensures consistent performance.
- Polarity: Strictly follow the wiring instructions. Always ensure correct polarity for the input voltage (do not reverse it), as reversed polarity can damage the power supply module. Reversed output polarity may damage electrical equipment connected to it.
Package Included:
- 1 x DC-DC Converter
