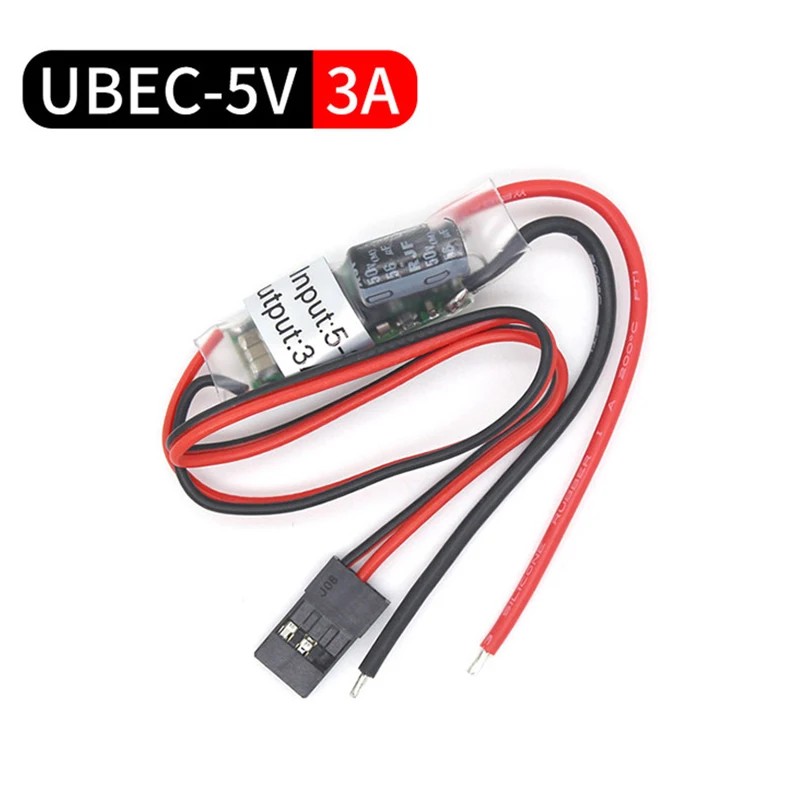

This 5V 3A UBEC is designed to power receivers, servos, flight controllers, and other onboard electronics with stable regulated voltage. Its switch-mode design ensures efficiency and minimizes heat, especially when used with higher-voltage battery packs.
Features: LED output status indicator, reverse-polarity protection design, shielded compact body for improved anti-interference, switching regulation with ~92% efficiency and built-in over-current and over-temperature protection.
Specifications
- Input Voltage: 5.5V–26V (2S–6S LiPo)
- Output Voltage: 5.25V ± 0.5V
- Continuous Output: 3A
- Peak Output: 4A (20 seconds)
- Size: 26 × 12 × 11 mm
- Weight: ≈5 g
Package Includes
- 1 × 5V 3A UBEC Module
Legend:
- UBEC: Universal Battery Eliminator Circuit
