Phase rotation testers are useful portable devices designed to check the direction of phase rotation in motorised machinery with three-phase supplies. These testers provide LED indication of both clockwise and anti-clockwise rotation. They are ideal for checking phase sequence in motors, pumps and air conditioning units. They can also be called phase sequence indicators, phase sequence meters of phase sequence testers.
Specifications of SM852B:
Check the presence of open phase and identify 3 phase sequence condition
Portable and compact design, easy to carry
Fast and accurate measurement
Efficient, effective, reliable, easy and safe to use
One Unit with 2 Functions: Open phase indication & Phase rotation indication
Indicate phase orientation (clockwise or counter-clockwise) and whether each of three phases is live
Operation Voltage: 60V - 600V AC, 3-phase
Limit Support Voltage: 2000 V/min ( impulse voltage 4000V)
Operating Frequency Range: 20 Hz - 400 Hz
Limit Time for Continuous Use: 60 minutes maximum at 60V AC, 4 minutes maximum at 600V AC
Length of Test Leads: 75cm ( approx.)
Unit dimension: 85 x 64 x 23mm ( approx.)
Warning: Do not expose this device to water or other corrosive liquids, and do not place it in an environment with direct sunlight or high temperature and relative humidity, so that test performance is unaffected.
Contents:
1 * Main Unit with Test leads
3 * Alligator clips (Red, Yellow, Green)
1 * Blue Carrying Case with Zipper

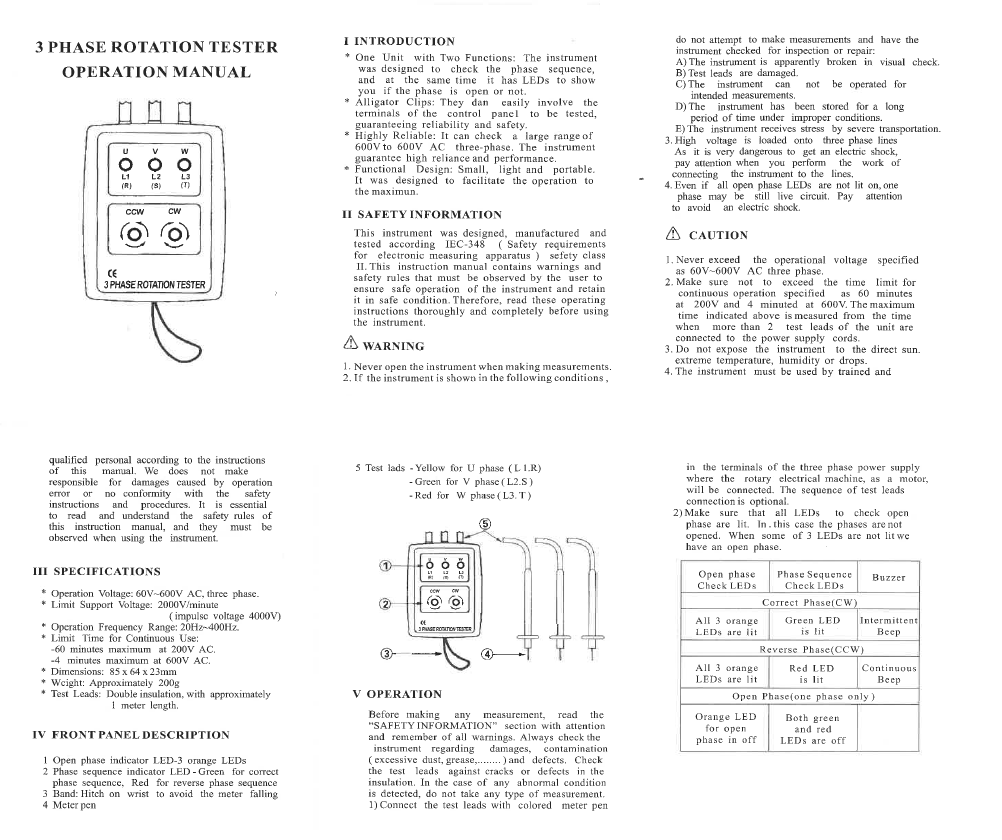

1 * English User Manual
