ANENG ST181, Digital Clamp 4000 Counts Multimeter

Price:
US$25.16
DM-ST181
Delivery within 2-3 weeks
+
Add to wish list

The ANENG ST181 is a Digital multimeter with a 4000 counter. This is a clamp multimeter, which is able to detect current without having to disconnect and reconnect your circuit.

Features

  • Can measure AC/DC voltage, AC current, resistance and test continuity.
  • Manual select measurement function and range.
  • Overload protection for the whole measurement range.
  • LCD display with backlight, convenient to operate and read.
  • Data hold function, low battery indication, auto power off.
  • Suitable for electrical equipment testing and maintenance.

Specifications

  Range Accuracy
AC voltage 4V/40V/400V/600V ±(1.5%+3)
DC voltage 400mV/4V/40V/400V/600V ±(1.0%+3)
Resistance 400/4k/40k/400k/4MΩ ±(1.2%+3)
40MΩ ±(1.5%+5)
AC current 40A/400A ±(2.5%+3)
Frequency 10Hz~400kHz ±(1.0%+5)
400kHz~4MHz ±(2.0%+5)
Capacitance 1nF~4uF ±(2.5%+10)
4uF~400uF ±(4.0%+20)
4mF ±(5.0%+30)
Working temperature 18°C〜28°C

Shipping List

  • 1 * ANENG ST181 Clamp Meter
  • 1 * Black Packing Bag
  • 2 * Test Probes

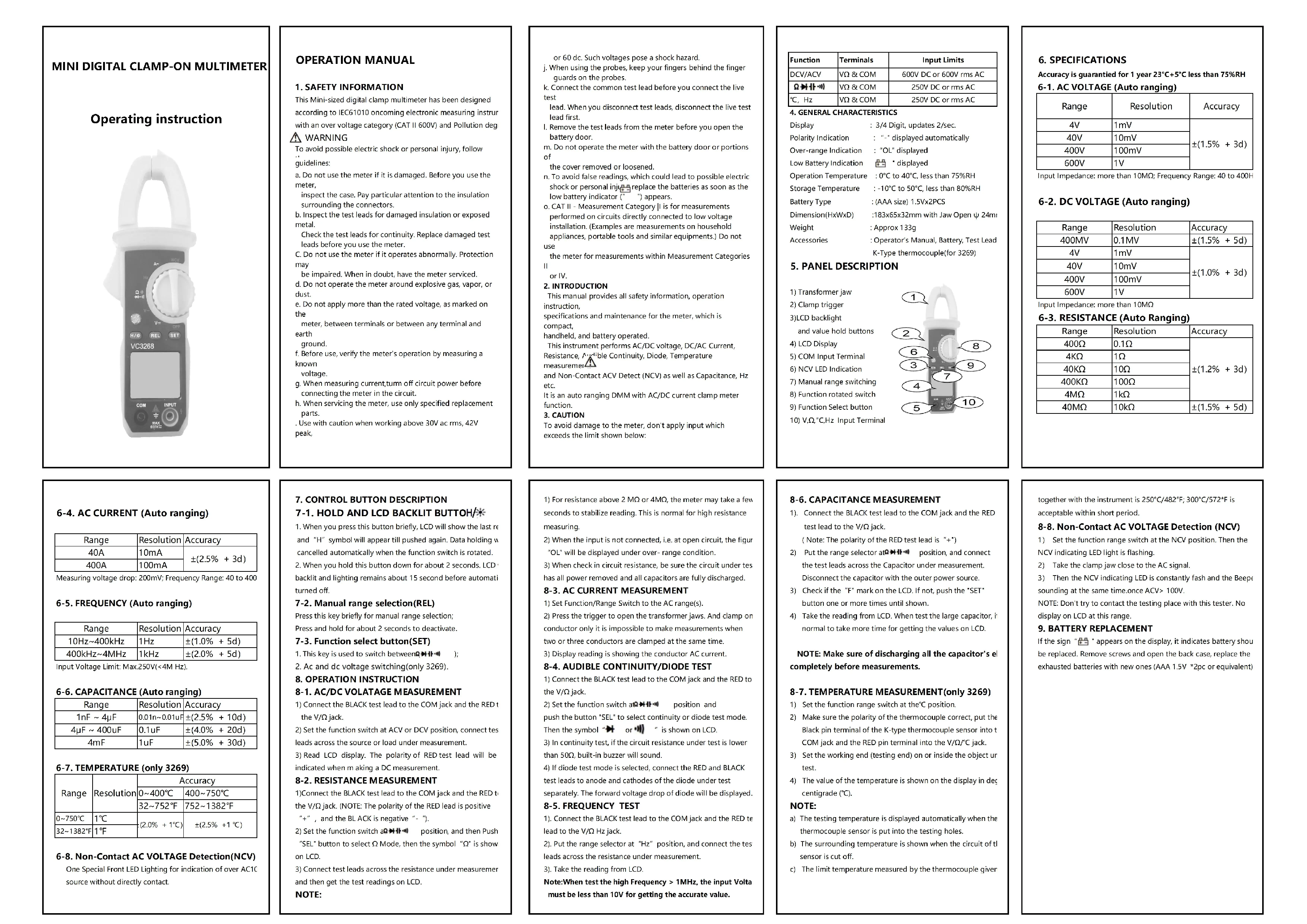

  • 1 * User Manual
