TOL-18627, USB Logic Analyzer - 24MHz/8-Channel
Is your I2C bus not ACK'ing the way you expect? Do you need to discover a UART's mysterious baud rate? Or do you want to reverse engineer an SPI protocol? These all sound like jobs for a logic analyzer! With the growing ubiquity of UART, I2C, and SPI sensors, logic analyzers are becoming a tool everyone needs in their toolbox or on their workbench. This 8-channel USB Logic Analyzer with support for sampling rates of up to 24MHz provides a good while economic option making it a great tool for quickly diagnosing most communication issues we encounter.

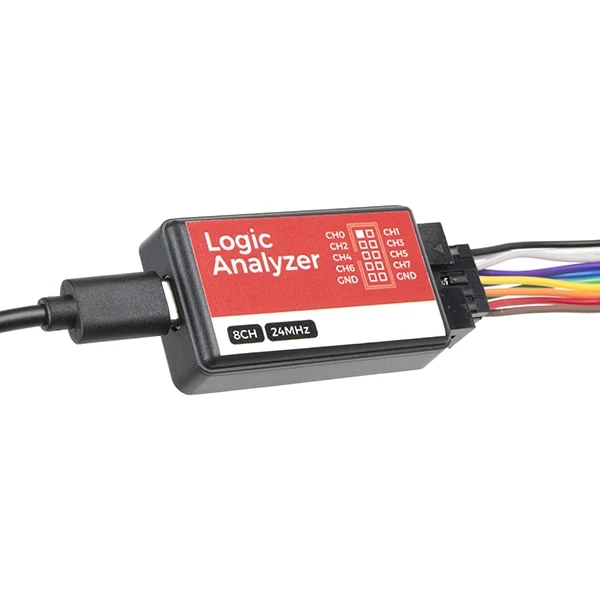

These analyzers will work with both 3.3V and 5V systems (up to 5.25V max and 2.0V minimum on a high logic-level) and is powered via an included USB-C cable. This logic analyzer works with PulseView -- an open-source, cross-platform signal analysis software suite.
The analyzer ships with Female-To-Female jumper wires. If you're using an Uno or board with female headers we recommend picking up a handful of Male-To-Male jumpers to connect the analyzer to the female headers.
Features & Specs
- 8-channels
- Sampling rate up to 24MHz, configurable down to 20kHz
- 5.25V maximum voltage input
- 2.0V minimum logic-high
- 0.8V maximum logic-low
- Input impedance > 100kΩ, 5pF
- USB power supply
- USB Type-C connector
- Supports open-source sigrok logic analyzer software
- Cross-platform support: Windows, Mac OS X, Linux, Android, etc.

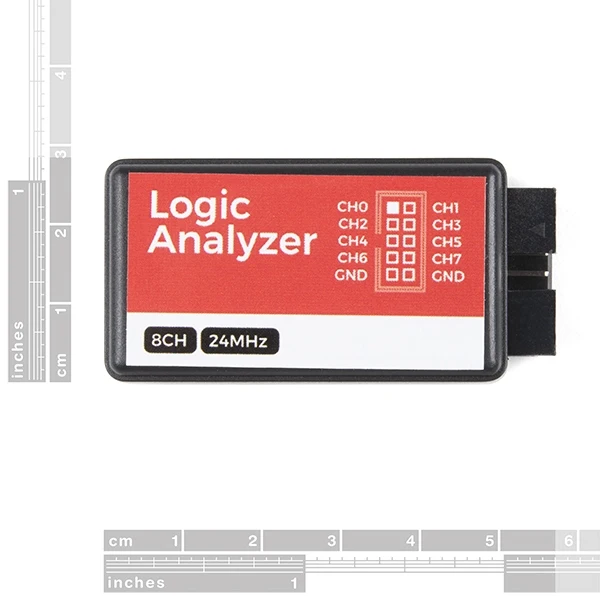

- Dimensions: 54.7 × 27.4 × 14.1 mm
With this latest revision of the USB Logic Analyzer, the USB Mini-B connector was replaced with a more up-to-date USB Type-C connector.
Documentation: Using the 8Ch/24MHz Logic Analyzer with sigrok
