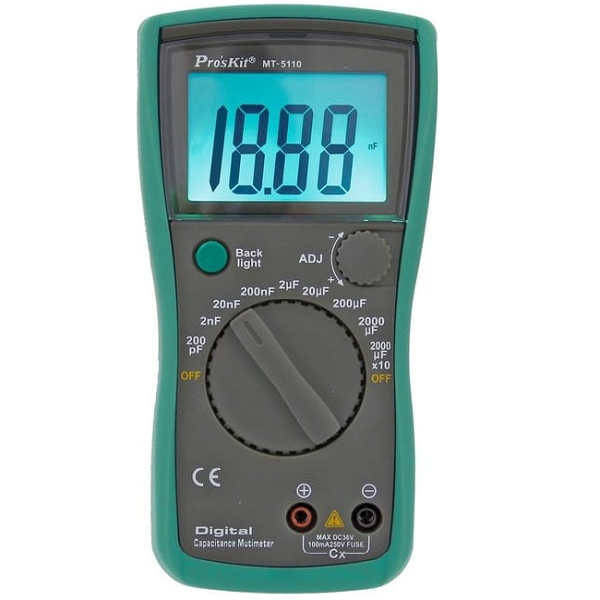

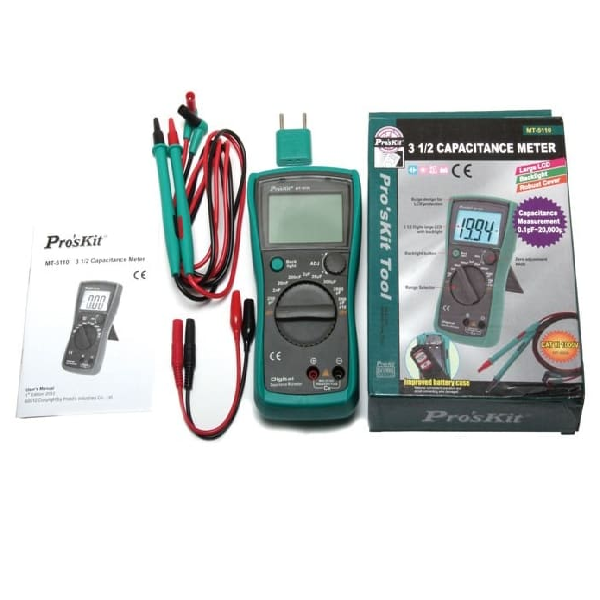

The Eclipse MT-5110 Capacitance Meter will measure a wide range of capacitance values, starting from 0.1 pF and up to 20,000 uF. Included with this meter are test leads, capacitance test socket, and alligator clips.
Features:
- Easy and correct readout.
- High measuring accuracy.
- Measurements are possible even in a strong magnetic field.
- LSI-circuit provides high reliability and durability.
- Input overload protection is provided.
- LCD displays low power consumption and clear readout even in bright ambient light conditions.
- In-line pushbuttons allow one-hand operation.
- Lightweight and compact construction for easy operation.
- Low battery condition is indicated on the LCD display.
- 3 1/2 Digits
- Large LCD Display Panel
- Backlight Button
- Range Selector
- Capacitance "+" input Terminal
- Capacitance "-" input Terminal
- Zero Adjustment Knob
Specifications:
|
Counter |
1999 |
|
Digits |
3 1/2 |
|
Backlight |
Included |
|
Auto/Manual Ranging |
Manual |
|
Capacitance |
0.1pF - 20,000uF |
|
Max Test Frequency |
800 Hz |
|
Capacitance Ranges |
200pF ±(0.5%+7d) |
|
Over-input |
Manual (±20 pF) |
|
Calibrate Adjustment |
Two Internal Adjustment, one is panel |
|
Input Overload Protections |
Yes |
|
Sampling Time |
0 ~ 5 Seconds |
|
Operating Temperature |
0°C to 40°C |
|
Operating Humidity |
80% Maximum R.H. |
|
Low Battery Indication |
Included |
|
Dimensions: |
|
|
Product Height |
9.00 IN |
|
Product Length |
3.00 IN |
|
Product Width |
7.00 IN |
|
Shipping Weight |
1.30 LBS |
