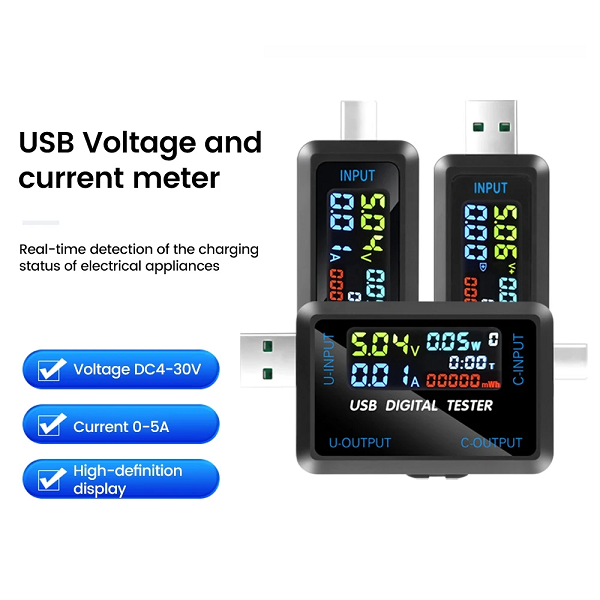

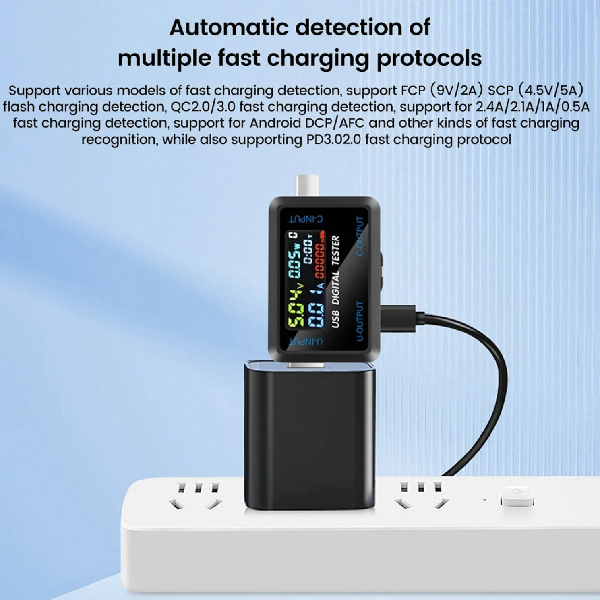

T-47 Voltage/Current Meter, Capacity Battery Tester, USB to USB-C Tester 4.5-36V, 0-5A.
Specifications:
Voltage measurement range: DC 4.5~36V
Current measurement range: 0-5A/0-8A
Capacity totalization range: 0-99999mAh
Power Accumulation Range: 0-99999mWh
Power measurement range: 0-150W
Impedance measurement range: 1-999.9Ω
Temperature measurement range: 0-80℃
Timing time: 999 hours and 59 minutes

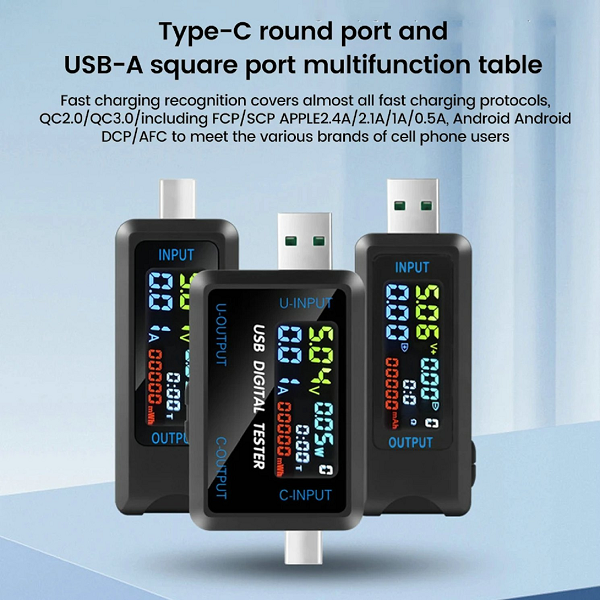

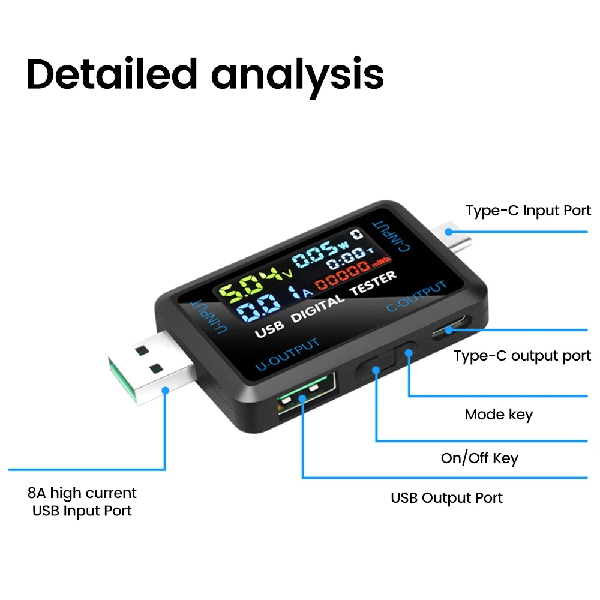

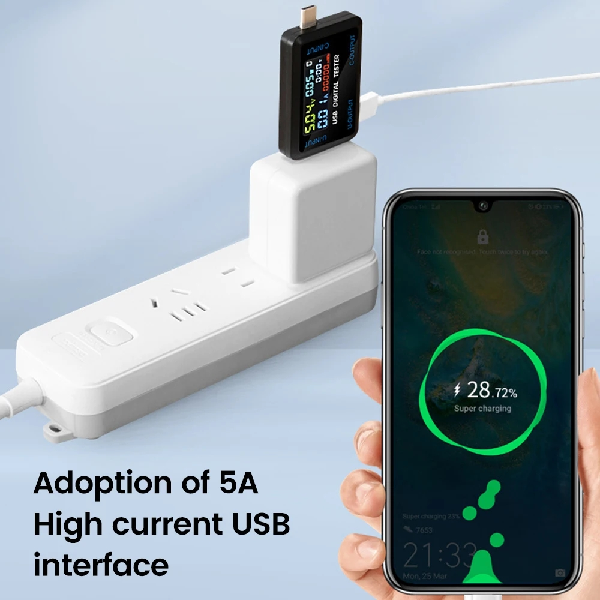

Input interface: 5A high current USB interface/Type-C interface
Output Interface: USB/Type-C
USB D+ voltage range: 0~2.99V
USB D-voltage range: 0~2.99V
Refresh Time: >500mS/times >500mS/times
Measurement rate: about 0.5 times/second
Display: IPS true color digital LCD screen
Self-consumption current: <0.02A
Operating Temperature: -10~60°C
Working humidity: 10~80%RH (no condensation)
Working air pressure: 80~106kPa
Product Dimensions:
USB:77.6*27*11mm
Type-C:73.6*27*11mm
USB+Type-C:76.9*38*11mm

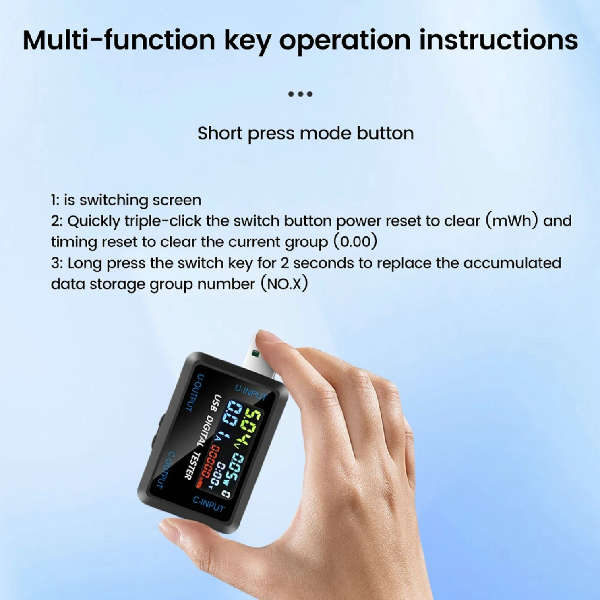

Multi-function button operation instructions:
Short press mode button

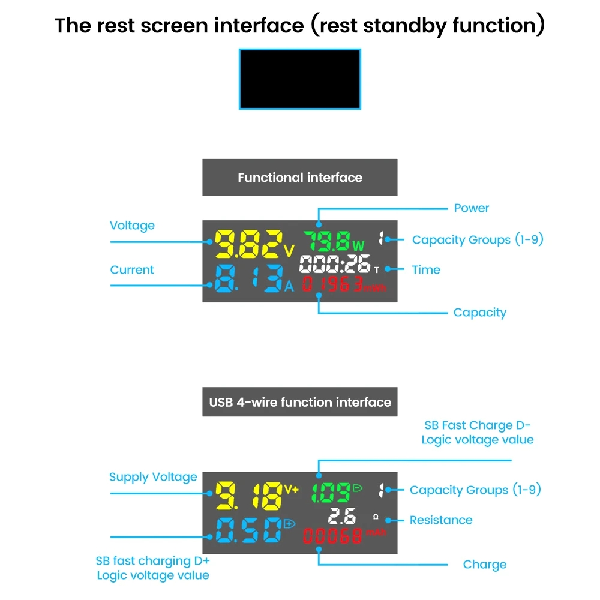

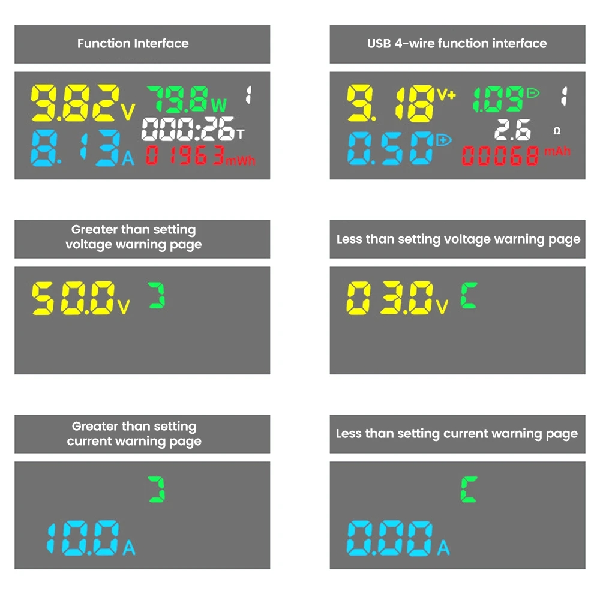

1: is to switch the screen
2: Quickly triple-tap the switch button to reset the power to zero (mWh) and the timing reset to zero the current group (0.00)

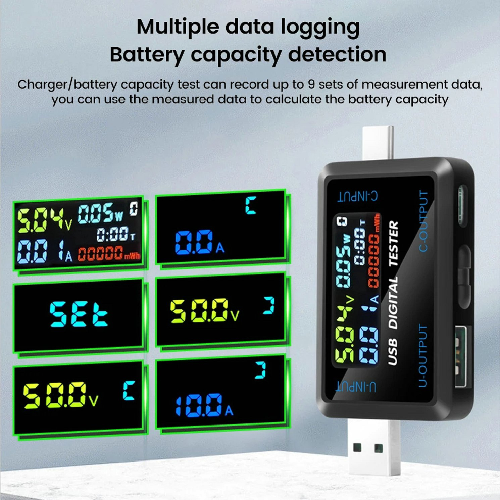

3: Long press the on/off button for 2 seconds to change the accumulated data storage group number (NO.X).
Package Included:
Package C: volt-current meterUSB+Type-C）x1
