3916A DIP Clip Test Adapter 16 Pin

In stock
Add to wish list

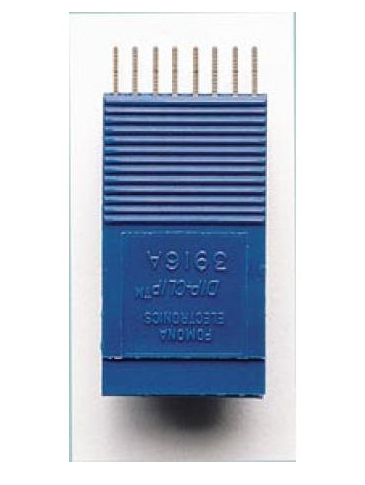

3916A Pomona DIP Clip Test Adapter 16 Pin DIP

DIP Clip test adapters are designed especially for testing dual-in-line IC packages on high-density PC boards. The DIP Clip test adapter has many built-in features that assure a positive electrical connection and at the same time provide hands-free testing. The high-density DIP Clip TEST adapters are used for ultra-dense packaged chips located adjacent to each other on 2.54 mm (0.100) spacing. Material: Contact, tarnish resistant nickel, silver- or gold-plated beryllium copper. Stainless steel hinge pin and spring. Insulation: Glass-filled nylon, blue. Rating: 500 V RMS ; 1 amp; +102°C (+216°F) max.

Gender : Male
Material, Body : Glass Filled Nylon
Material, Contact : Nickel Silver
Pitch : 0.18
Temperature, Operating : 102°C (Max.)
