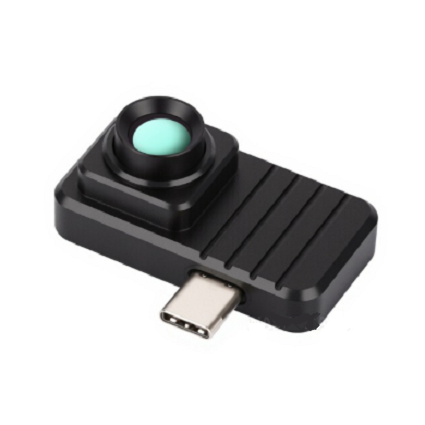

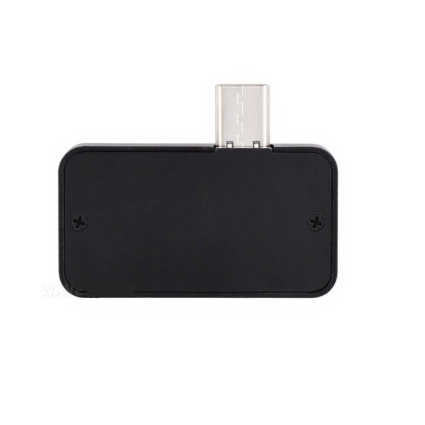

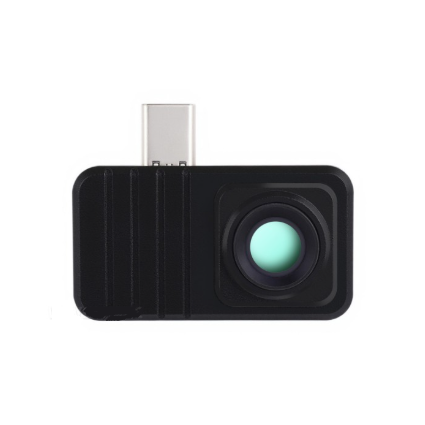

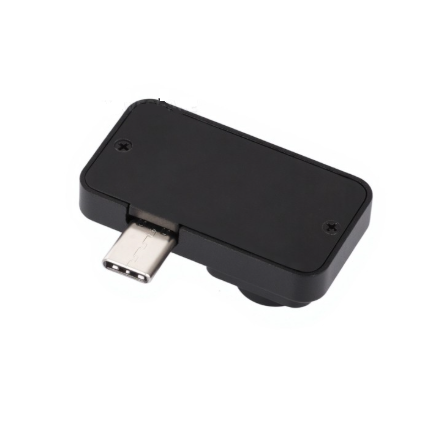

The Waveshare 31714 is Smartphone IR Thermal 45° FOV Imaging Camera (C), Type-C Port, Plug and Play, 160 × 120 Pixels Resolution IR Array, Aluminum Alloy Case.
Features
This product is a plug-and-play thermal imaging camera for smartphones, equipped with a built-in Long Wave Infrared (LWIR) thermal imaging module. Powered by advanced SenXorTM technology, it integrates 19,200 pixels on 160 × 120 focal plane array (FPA). It will detect the IR distribution of objects in the field of view, turn the data into the surface temperature of the objects by calculation, and then generate thermal images. Adopts Type-C interface design, suitable for various Android smartphones with Type-C interface. Provides a smartphone APP, requiring no complicated setup or driver installation. Simply plug it in, and you can instantly start your thermal imaging journey on your phone, obtaining accurate thermal imaging anytime, anywhere.
High-resolution imaging
The module features 160 × 120-pixel focal plane array, totaling 19,200 pixels. This high-resolution configuration enables the capture of rich thermal imaging details, clearly presenting subtle temperature differences and complex thermal field distributions. Each pixel supports radiometric measurement and temperature data output, allowing not only the visualization of thermal images but also access to precise temperature values for every pixel. This capability facilitates professional temperature analysis and assessment, making it ideal for applications that demand high temperature accuracy, such as scientific research and industrial inspection.
Meet the needs of different scenarios.

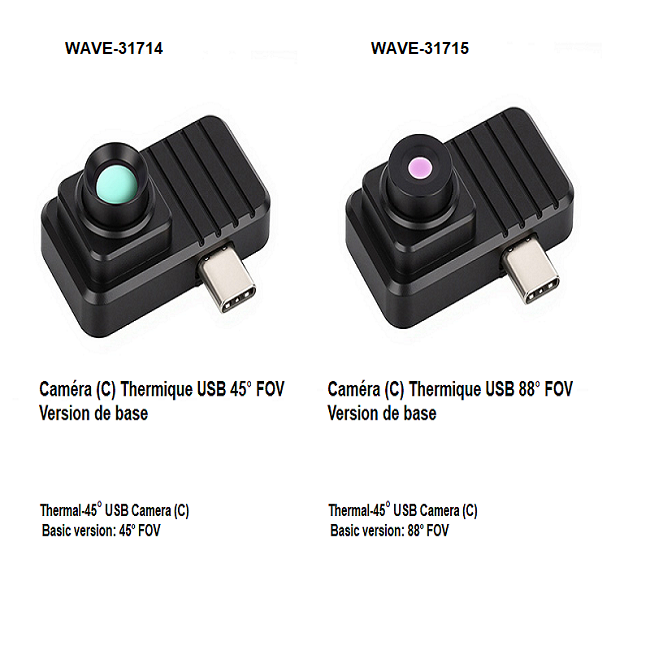

Provides options for 45°/88° FOV
Provides two lens versions for 45° / 88° FOV. Whether you need wide-area monitoring with a broad field of view or close-range observation with high detail requirements, you can choose the appropriate lens version to meet your needs — significantly expanding the application range of the thermal imaging camera.
Provides App with multiple functions
The APP provides a variety of image color palettes, supports multiple functions such as high-temperature warning, photo taking, and video recording, etc.
Compact Size & Lightweight
Adopts Aluminum alloy case with dull-polish surface, exquisite design, practical and nice looking.
