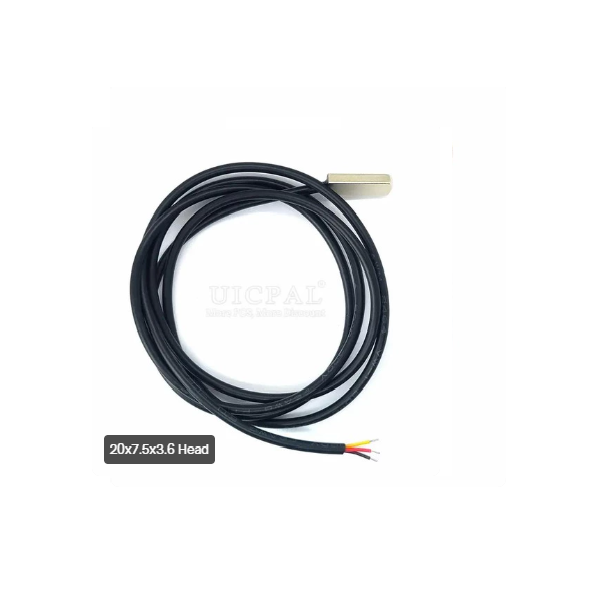

SENS-720-3.6 Temperature Sensor DS18B20 Probe Stainless Steel 7*20*3.6MM. 3-Conductor Cable 1M.
Specifications:

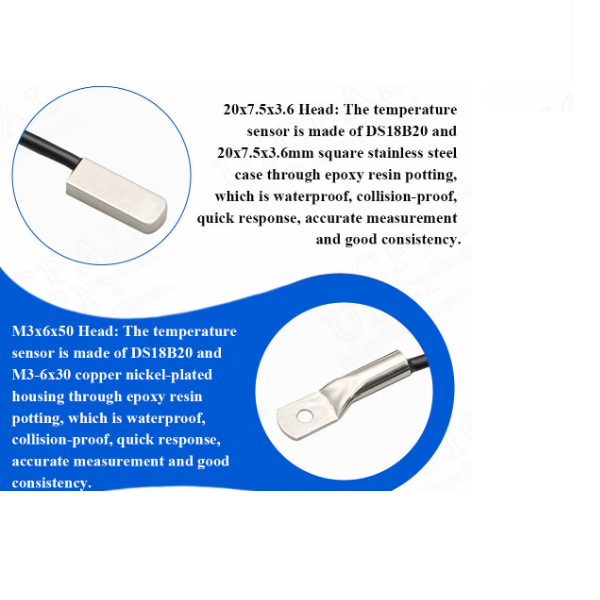

Stainless steel square size: 20 x 7.5x 3.6mm (Length* Width* Heighth)
Power supply range: 2.7-5.5V
Operating temperature range: -55°C ~ +125°C (-67°F - +257°F)
Storage temperature range: -55°C ~ +125°C (-67°F - +257°F)
Resolution: 9-12 bits (highest resolution 0.0625°C)
Accuracy over the range of -10°C to +85°C: ±0.5°C.
Low standby current power consumption: 1mA/3V (typical)
Low conversion current power consumption: 1mA/3V (typical)
Withstanding voltage test: AC1800V I=0 5mA 10s

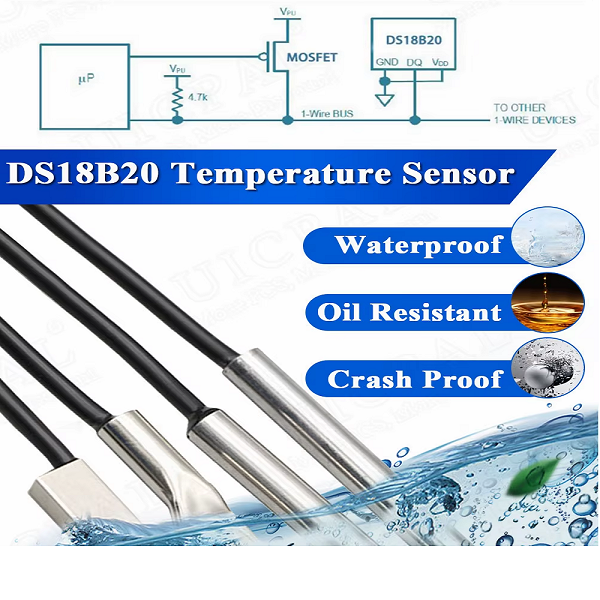

Output wire leads: red (VCC), yellow (DATA) , black (GND)
Cable length: 1 meter
