SENS-TOF0400C VL53L1X Time of Flight Laser Ranging Sensor Module I2C Laser for Arduino STM32 Distance 400cm.

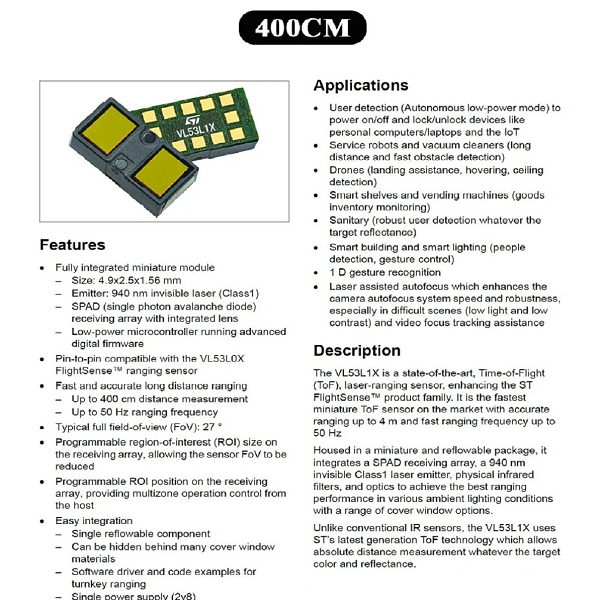

The VL53L1X is a tiny chip (4.4 x 2.5 x 1.56 mm) with two holes on the top. One for the laser light emitter and one for the light detector. The VL53L1X operates by sending out a laser light plus from the emitter, receiving the reflected light from an object in the detector, and based of the time it took (time-of-flight) then computes the distance to the object.
- Specifications:
940 nm VCSEL emitter (IR light, invisible to eye)
Measurement time 20ms up to 1000ms
Programmable region of interest (ROI) size
Programmable ROI position on the receiving array
Three distance modes: short, medium, and long
Distance between 4cm and 400cm
Resolution: 1mm
Voltage: 2.6 to 3.5 V
I2C communication interface (up to 400kHz)
