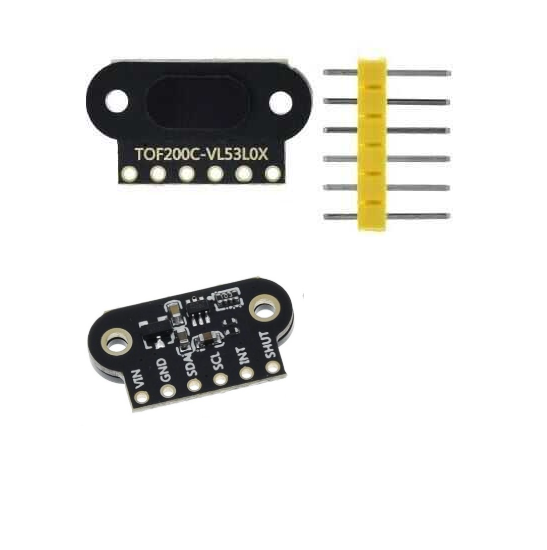

SENS-TOF0200C VL53L0X Time of Flight Laser Ranging Sensor Module I2C Laser for Arduino Distance 200cm.
The VL53L0X is a is a very small, Time-of-Flight Distance Sensor (ToF) sensor that uses infrared laser light to measure the distance to an object. By measuring the time it takes for the light to be reflected from an objects, it can compute distances with high accuracy. The compact size and low power consumption of the sensor make it suitable for a wide range of DIY projects, including robotics, gesture recognition, and proximity sensing.
Specifications:
940 nm VCSEL emitter (IR light, invisible to eye)Measurement time 30ms
Programmable region of interest (ROI) size
Programmable ROI position on the receiving array
Three distance modes: short, medium, and long
Distance range: 3 to 200cm
Dead zone: 3 cm
1D gesture detection capability
Viewing Angle (FOV): 25°
Resolution: 1mm
Voltage: 2.6 to 5.5 V
I2C communication interface (up to 400kHz)
