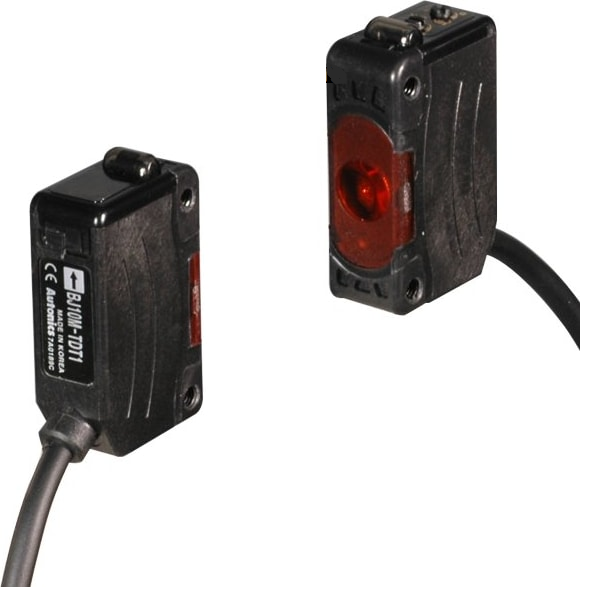

SENS-BJ15M-PNP Polarized PNP Thru Beam Emitter/Receiver Photo Sensor, DARK-ON, LIGHT-ON.
Specifications:
Type of sensor: Photoelectric
Range: 0...15m
Output configuration: PNP
Output: Open Collector
Operation mode: Selectable DARK-ON, LIGHT-ON
Operation mode: Transmitter-Receiver (see Markings below)
Connection: Lead
IP rating: IP65
Voltage Supply: 12-24V
Max. operating current: 0.1A
Response time: <1ms
Operating temperature: -25...55°C
Body material: Plastic

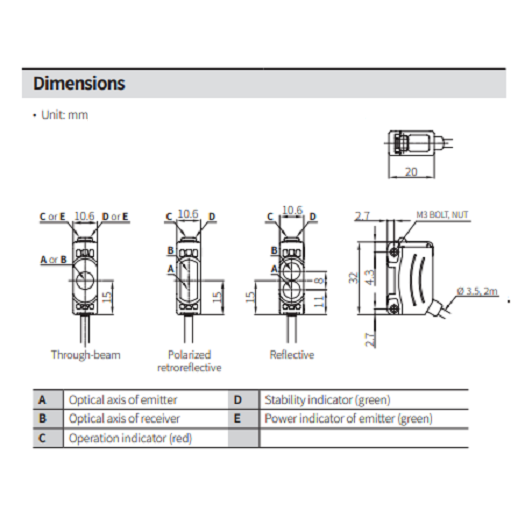

Body dimensions: 10.6x32x20mm
Lead length: 2m

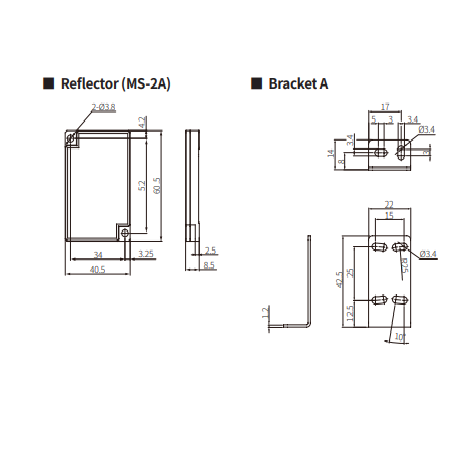

Bracket, screws and washers supplied.
Markings: BJ15M-TDT1 (GREY WIRE) Corresponds to Emitter
BJ15M-TDT2 (BLACK WIRE) Corresponds to Receiver
