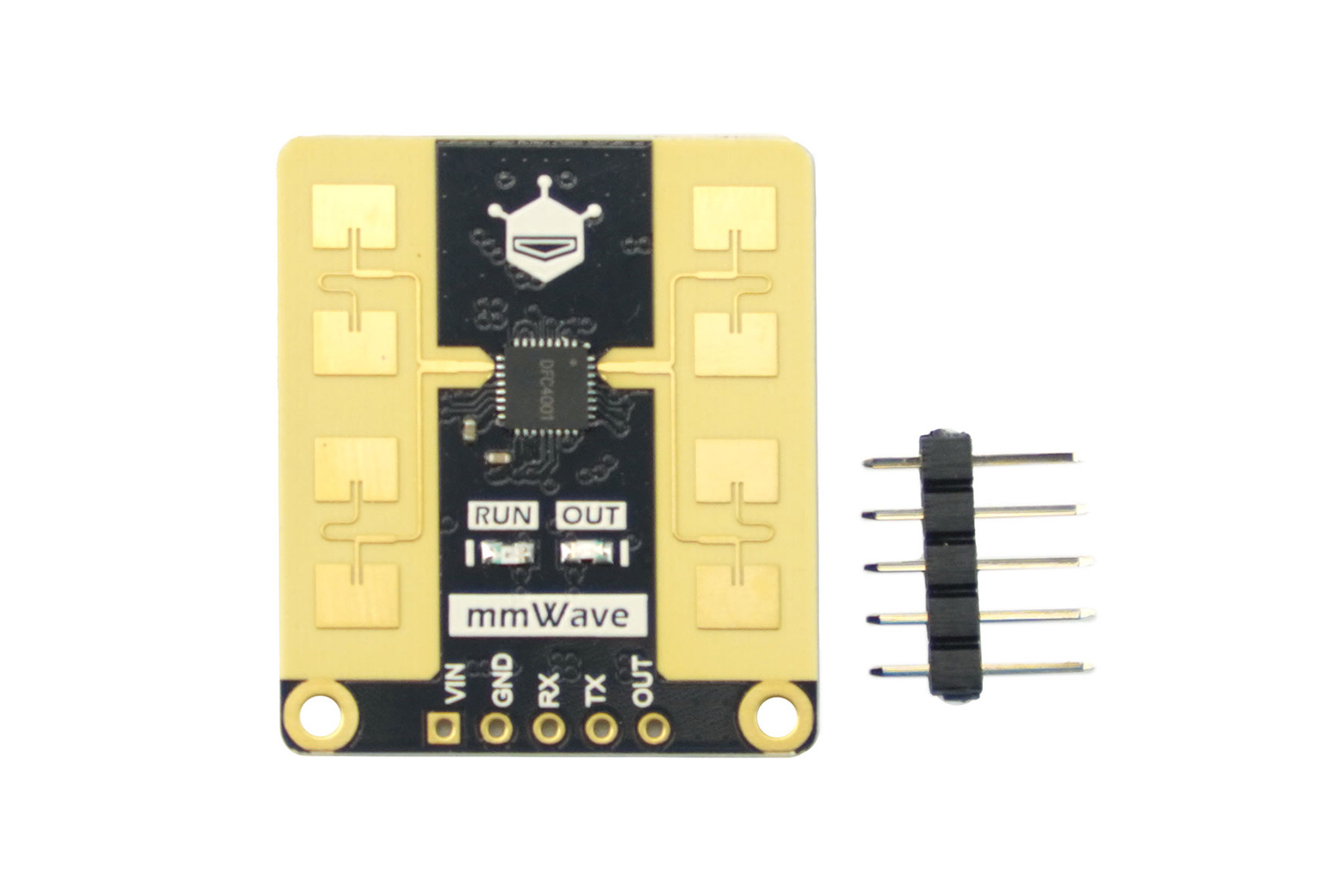

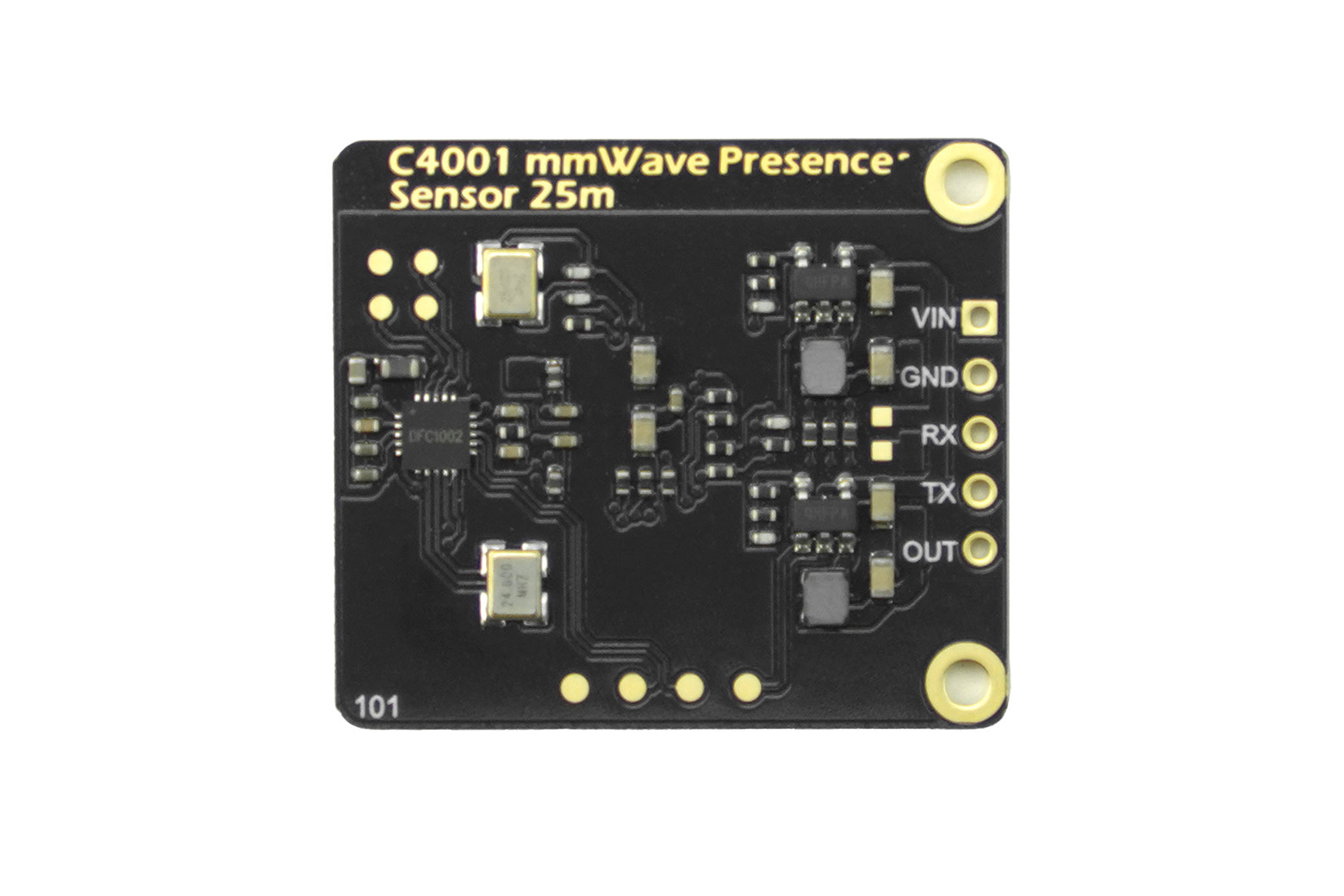

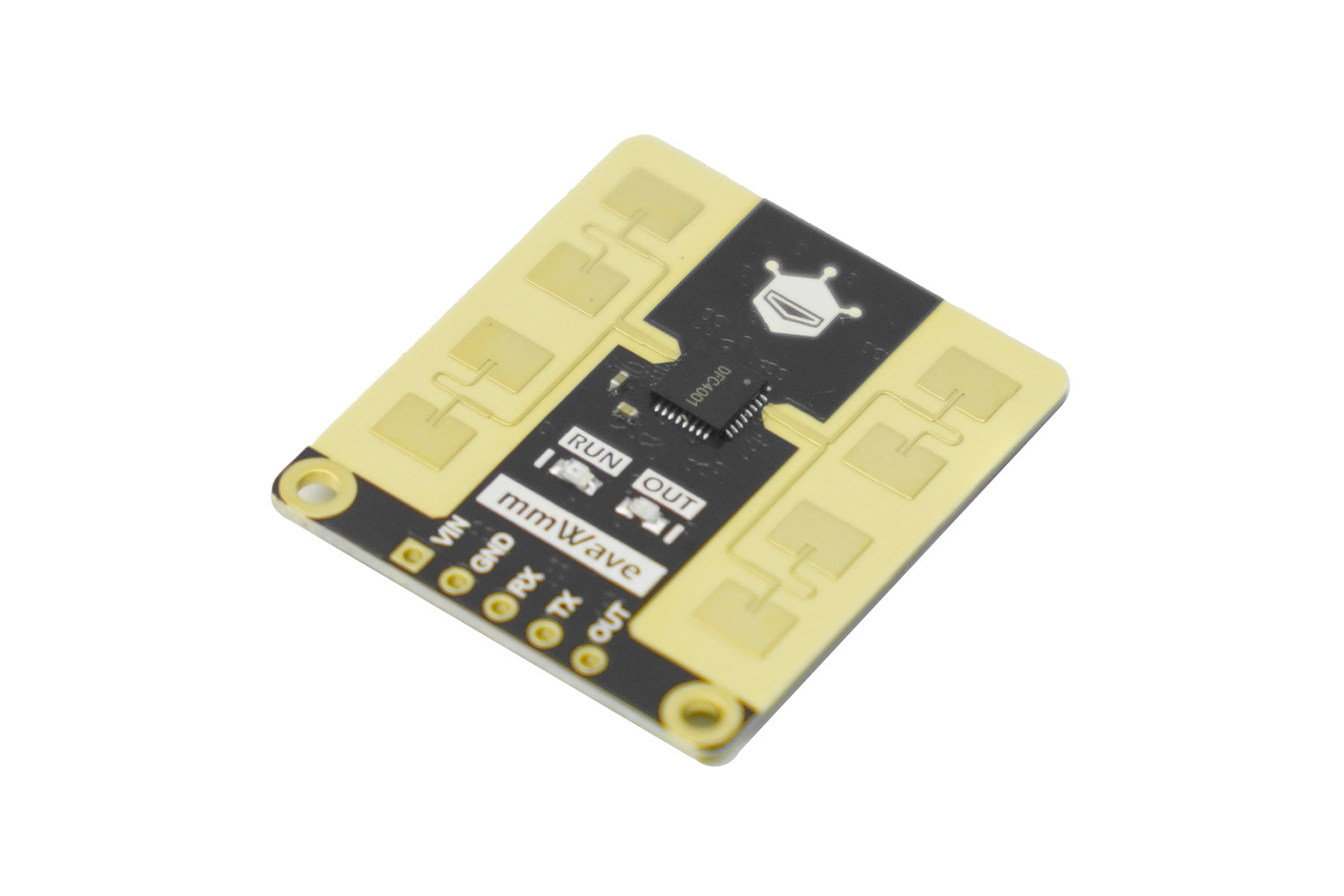

SEN0609, mmWave - C4001 24GHz Human Presence Detection Sensor (25 Meters, UART)

Price:
US$24.34
SEN0609
Delivery within 2-3 weeks
+
Add to wish list

SEN0609, mmWave - C4001 24GHz Human Presence Detection Sensor (25 Meters, UART)

The C4001 millimeter-wave presence sensor utilizes a 24GHz signal. It features a 100° horizontal detection field, with a presence detection range of 16 meters and a motion/distance detection range of up to 25 meters. Ideal for human presence detection, environmental monitoring, and real-time tracking projects.

Wiki: SEN0609 C4001 mmWave Presence Sensor 25m

Human Detection

The C4001 outperforms traditional infrared or ultrasonic sensors by detecting both static and moving human presence. With strong anti-interference performance, it operates reliably regardless of ambient light, temperature fluctuations, or environmental noise—ideal for detecting seated, sleeping, or moving people.

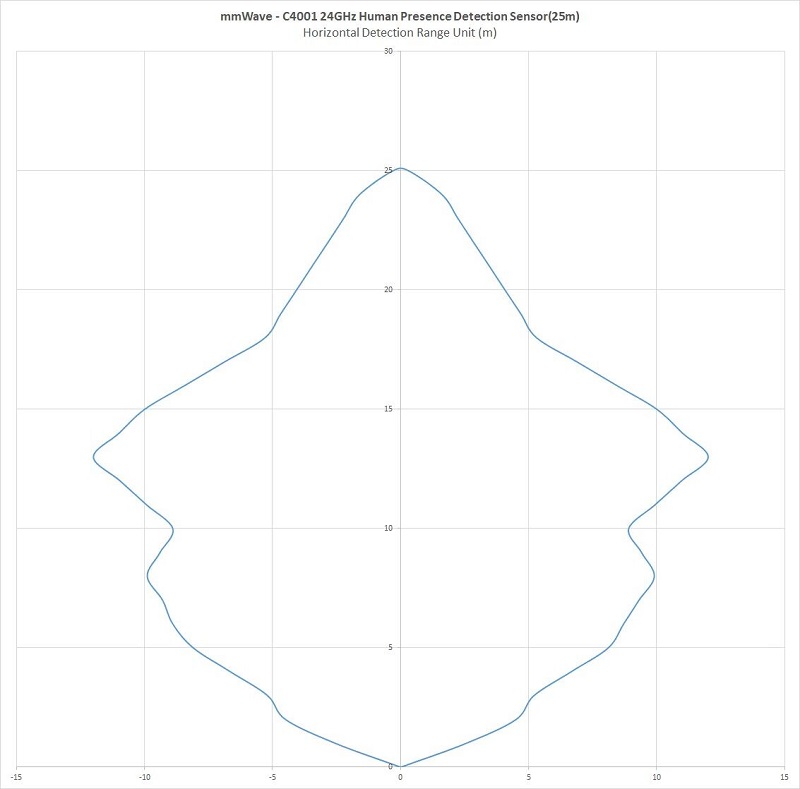

Distance and Velocity Detection

Using Frequency Modulated Continuous Wave (FMCW) radar, the C4001 can measure distances up to 25 meters and detect motion speeds from 0.1 to 10 m/s. FMCW enables continuous distance monitoring and Doppler-based speed calculation, offering higher resolution and real-time tracking for dynamic environments.

mmWave sensor diagram

What is a Millimeter-Wave Radar Sensor?

Millimeter-wave radar is a contactless sensing technology operating between 24GHz–300GHz. It enables detection of object distance, speed, and angle using high-frequency electromagnetic waves. Ideal for motion analysis and object presence in complex environments.

Installation Method

Installation orientation affects performance. Recommended mounting options include horizontal, top-mounted, bottom-mounted, or downward-tilted configurations.

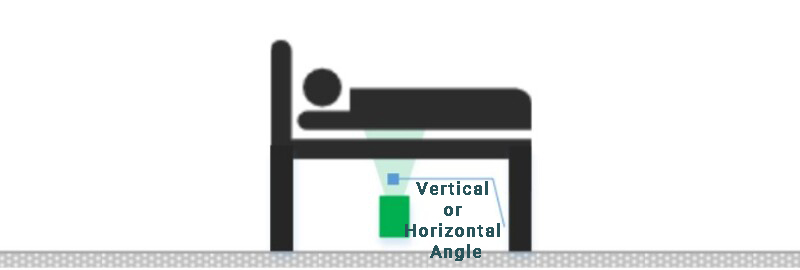

Installation example 1

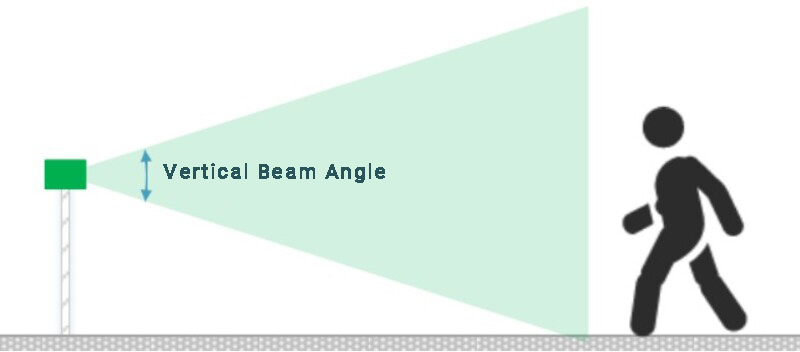

Installation example 2

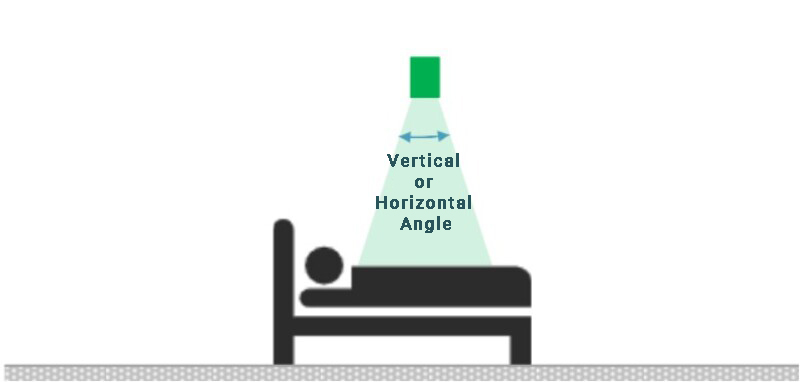

Installation example 3

Wiring Diagram

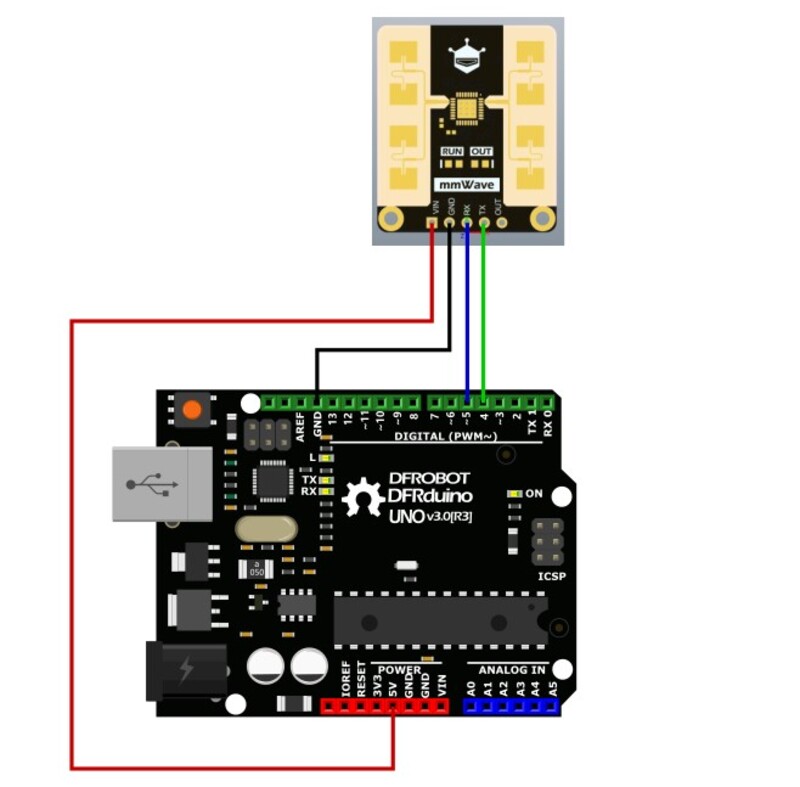

Wiring diagram

Features
  • Human presence detection up to 16 meters
  • Motion and distance detection up to 25 meters
  • Velocity detection from 0.1 to 10 m/s
  • High immunity to temperature, light, humidity, dust, and noise
  • Supports I/O control via high/low-level output
  • UART communication for configuration and output
  • Compact form factor, easy integration
Applications
  • Human presence detection
  • Distance and velocity monitoring
  • Environmental and climate control systems
  • Industrial automation
  • Real-time movement tracking
Specifications
  • Operating voltage: 3.3V / 5V
  • Maximum detection range: 25 meters
  • Beam angle: 100° × 40°
  • Modulation mode: FMCW
  • Operating frequency: 24GHz
  • Operating temperature: -40°C to 85°C
  • Baud rate: 9600bps

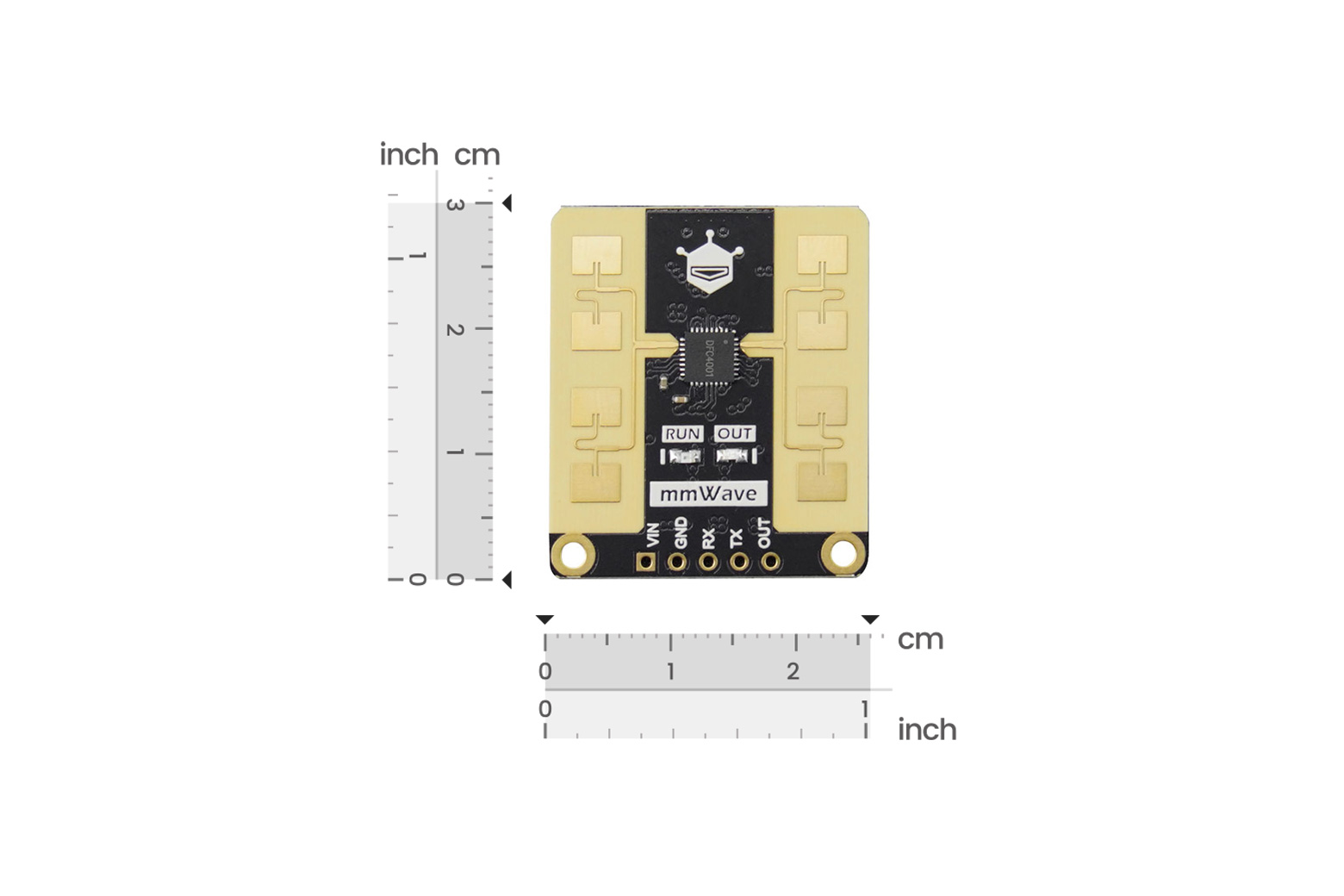

  • Dimensions: 26mm × 30mm
Shipping List
  • C4001 mmWave Presence Sensor (25m) × 1
  • 5-pin header × 1

Protocol (protocol.pdf, 139 Kb) [Download]
