HUSKYLENS 2 K230 6 TOPS AI vision camera deploys custom models like YOLO on-device. Its MCP service provides contextual awareness for LLMs, enabling smart robotics.
Specification
- Processor: Kendryte K230 Dual-Core 1.6GHz
- AI Computing Power: 6 TOPS
- Memory: 1GB LPDDR4
- Storage: 8GB eMMC

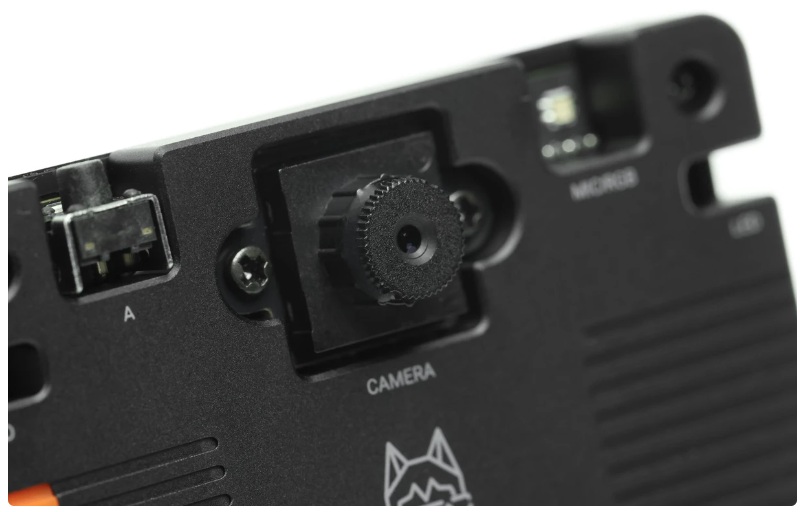

- Image Sensor: GC2093, 2MP, 1/2.9", 60FPS
- Display: 2.4" IPS Touch Screen (640×480), Full-Lamination
- Buttons: 1 × Function Button
- Fill Lights: 2 × LEDs
- RGB Indicator: 1 × RGB LED
- Wi-Fi: 2.4GHz Wi-Fi 6 (Slot-in Module)
- Expandable Storage: 1 × TF Card Slot
- Microphone: Capacitive Silicon Microphone
- Speaker: 1W Acoustic Speaker
- Operating Voltage: 3.3–5V
- Power Consumption: 1.5–3W

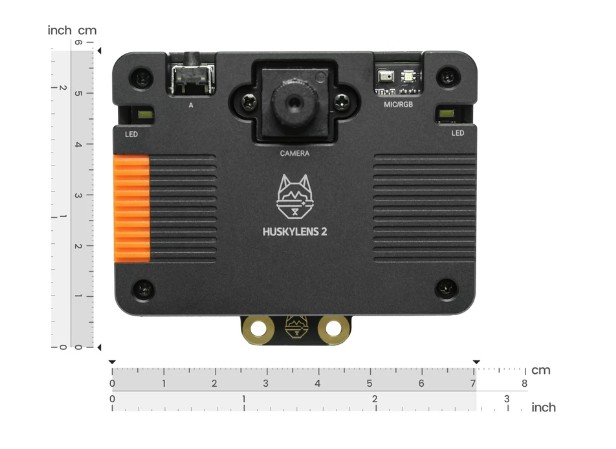

- Dimensions: 70 × 58 × 19mm
- Net Weight: 90g
- Interfaces: Type-C, Gravity (I2C / UART), TF Card Slot
Documents
- Product wiki
- Official Website
- GitHub / Technical Community
- RoHS
- EMC Attestation of Conformity
- FCC Part 15B sDoC
Applications
- Educational robotics
- Interactive systems
- Intelligent device prototyping
Content
- HUSKYLENS 2 AI Vision Sensor x1
- M3 Screws x6
- M3 Nuts x6
- Mounting Bracket x1
- Heightening Bracket x1
- Gravity-4P Sensor Connector Cable (30cm) x1
- Dual-Plug PH2.0-4P Silicone Cable (20cm) x1
- Power Adapter Board x1
