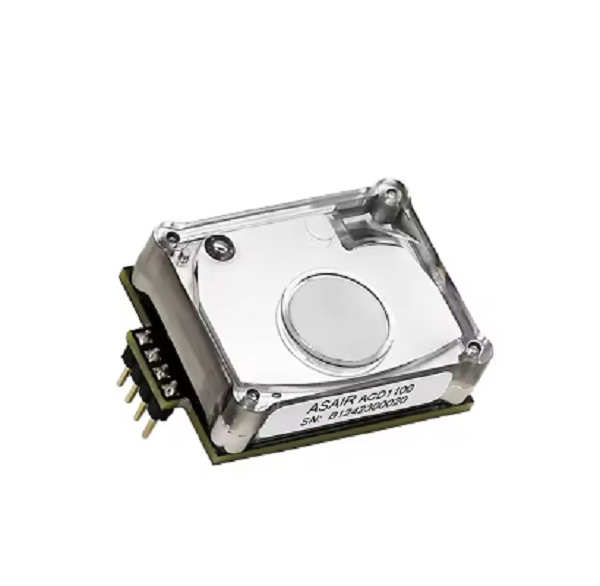

NDIR Carbon Dioxide (CO2) Infrared Sensor ACD-1100.

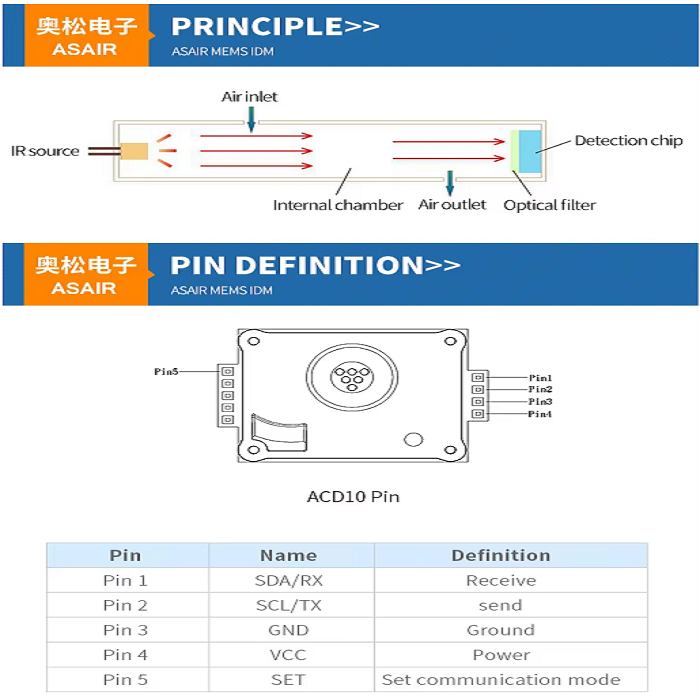

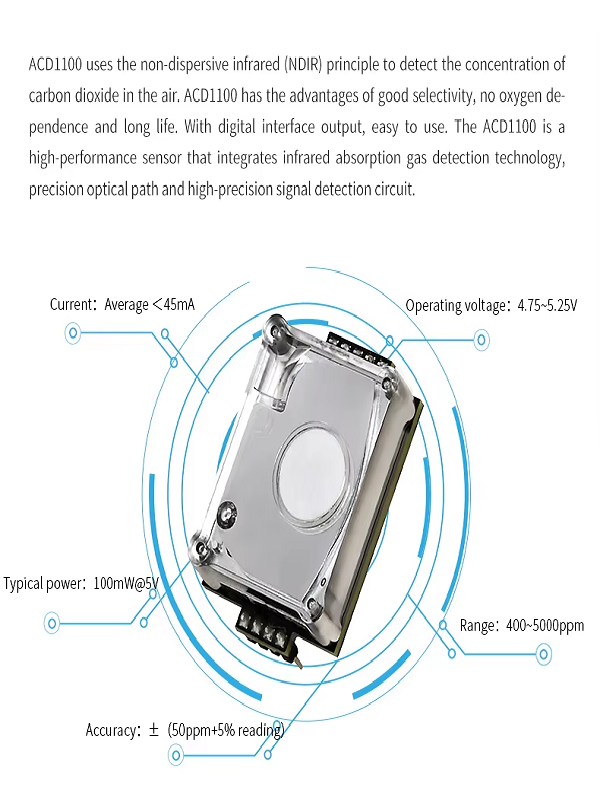

ACD1100 uses the non-dispersive infrared (NDIR) principle to detect the concentration of carbon dioxide in the air. ACD1100 has advantages of good selectivity, no oxygen dependence and long life. With digital interface output, it is easy to use. The ACD1100 is a high-performance sensor that integrates infrared absorption gas detection technology, precision optical path and high-precision signal detection circuit.
|
Model |
ACD1100 |
|
Power |
4.75V- 5.25V |
|
Current |
Average current <45mA |
|
Typical Power |
100m @ 5V |
|
Range |
400-5000ppm |
|
Accuracy |
± (50ppm + 5% reading) |
|
Preheat |
120s |
|
Operating condition |
0 to 50°C; 0-95% RH (non-condensation) |
|
Store |
-20 to 60°C; 0-95% RH (non-condensation |
|
Refresh frequency |
2s |
|
Service life |
> 5years |
|
Output |
I2C/UART |
