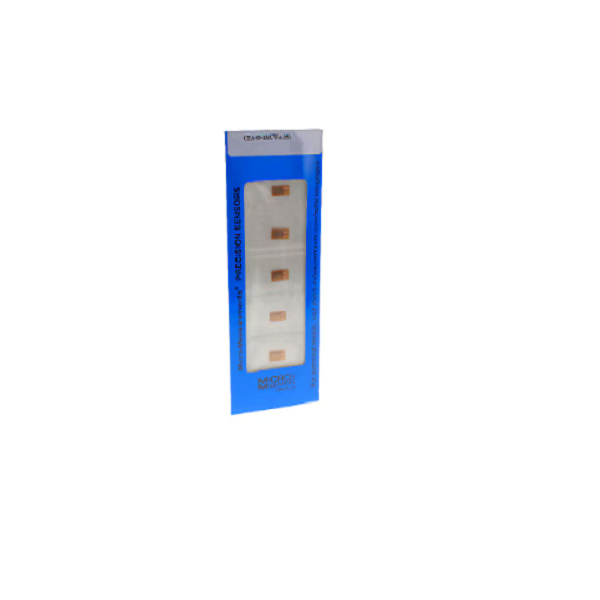

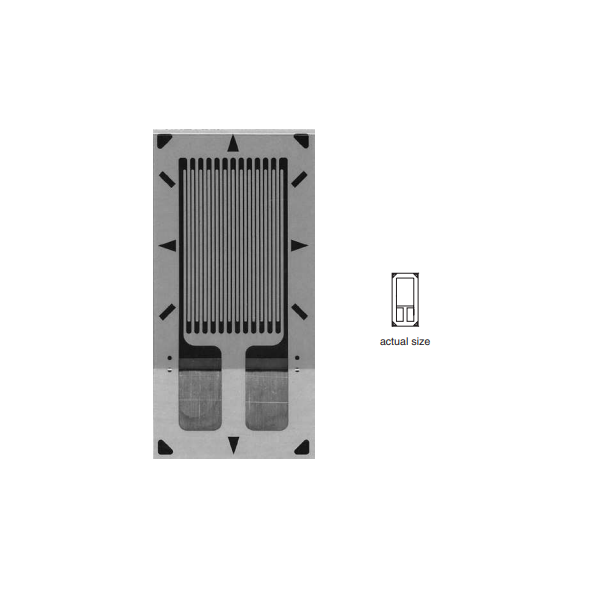

The CEA-06-UW250A-350 is the Micro-Measurements strain gauge, specifically a weldable strain gauge from the CEA series. It is a linear, constant and foil gauge encapsulated in a polyimide film with solder pads, designed for spot welding to structures and components.
SPECIFICATIONS:
Series: CEA
Device: Weldable Strain Gauge
Package: Bulk
RoHS: RoHs compliant
Resistance: 350 Ohms
Pattern Type: Linear
Strain Range: ±5%
Width – Active: 0.169" (4.30mm)
Length – Active: 0.230" (5.84mm)
Width – Overall 0.34" (8.6mm)
Length – Overall 0.630" (16.00mm)
Resistance Tolerance: ±0.3%
Width - Overall Pattern: 0.34" (8.6mm)
Length - Overall Pattern: 0.450" (11.43mm)
Operating Temperature: -100 ~ 200°F (-75 ~ 95°C)
