WAVE-32387, 2D Codes Scanner Module (E), Barcode / 2D Code Scanner Module, Onboard USB And UART Interfaces

1D/2D Codes Recognition | DPM Code Recognition | Long-Range Scanning

The Barcode Scanner Module (E) is a Barcode/2D code scanner module. By using the intelligent image recognition algorithm, it can decode 1D / 2D and DPM codes on paper or PCB boards quickly and accurately. It is compatible with multiple barcode formats including DotCode and DM, supports high accuracy, high speed, and high contrast barcode scanning. Onboard USB and UART interfaces allow direct connection to a computer or easy integration into embedded devices.

Comparison

Model Barcode Scanner Module (E) Barcode Scanner Module (C) Barcode Scanner Module
Resolution 1080 × 1280 640 × 480 640 × 980
Scan angles pitch ±55°
skew ±70°
roll 360°
pitch ±60°
skew ±60°
roll 360°
pitch ±60°
skew ±65°
roll 360°
Scan mode Sensing, Continuous, Manual (default)
Accuracy - 1D Codes 3MIL
2D Codes 5MIL
-
Communication Interface USB keyboard mode (default), USB virtual port, UART port
Light source White (Lighting) + Green (Aiming)
(both are visible light)
White (Lighting) + Red (Aiming)
(both are visible light)
Power Supply 5V
Current Operating 270mA 250mA 210mA
Standby 140mA 20mA ≤25mA
Boot - 258mA -
Temperature Operating -30°C ~ +60°C -20 ~ +60°C
Storage -40°C ~ +70°C -40 ~ +70°C -30 ~ +70°C

Decoding Capability

Code type BARCODE Barcode Scanner Module (E) Barcode Scanner Module (C) Barcode Scanner Module
READABLE DEFAULT READABLE READABLE DEFAULT READABLE READABLE DEFAULT READABLE

* Note: some supported barcode formats are disabled by default. You can scan a 'configuration code' to enable them. This list only includes common Barcodes. For more supported Barcodes please refer to the product wiki.

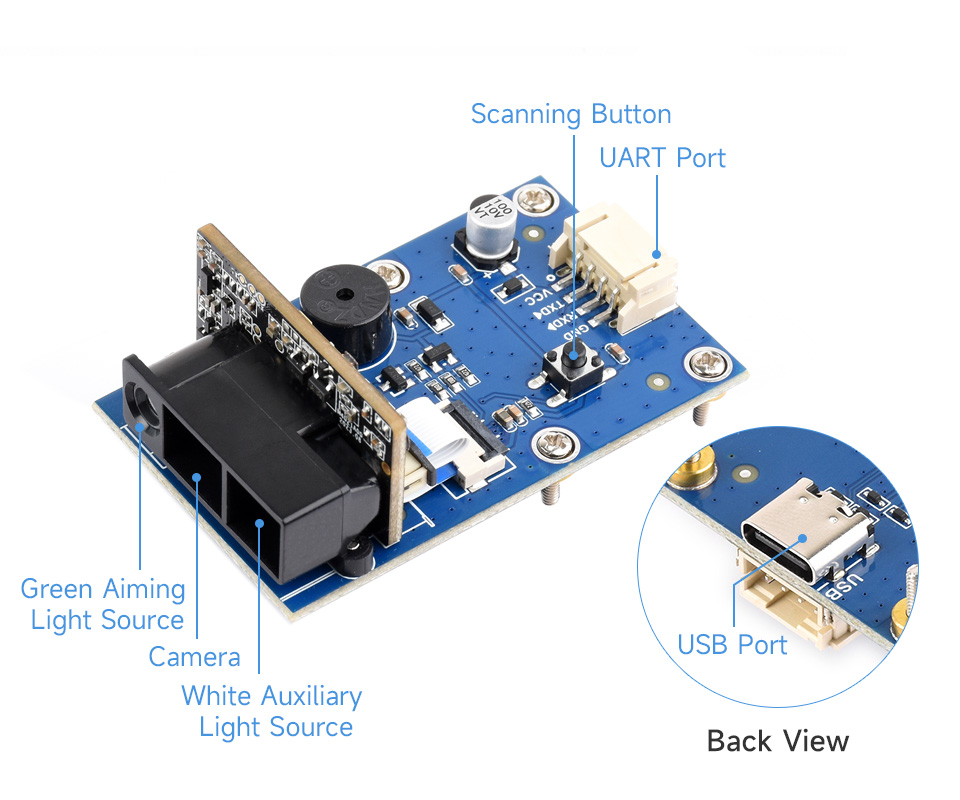

Onboard resource

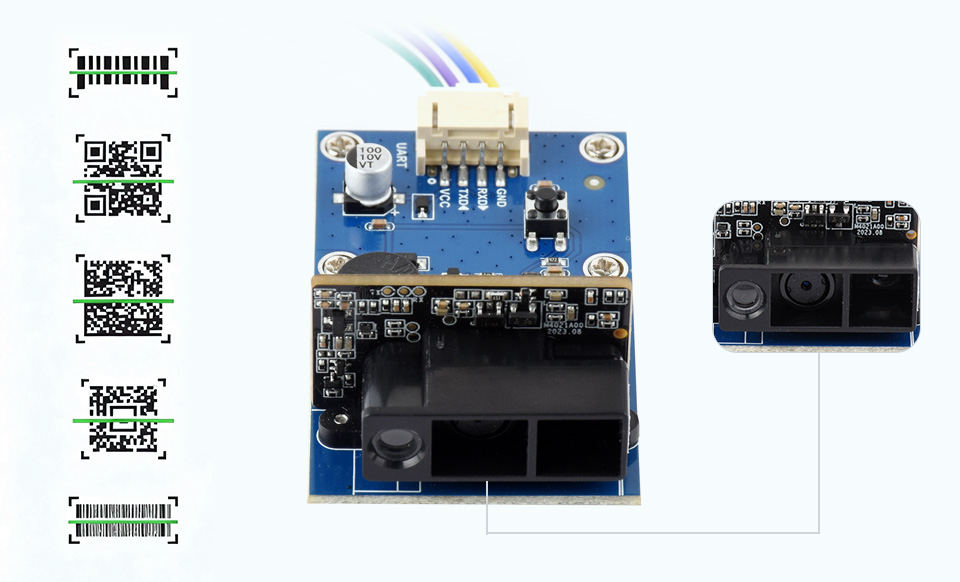

Multiple Barcode Types Support

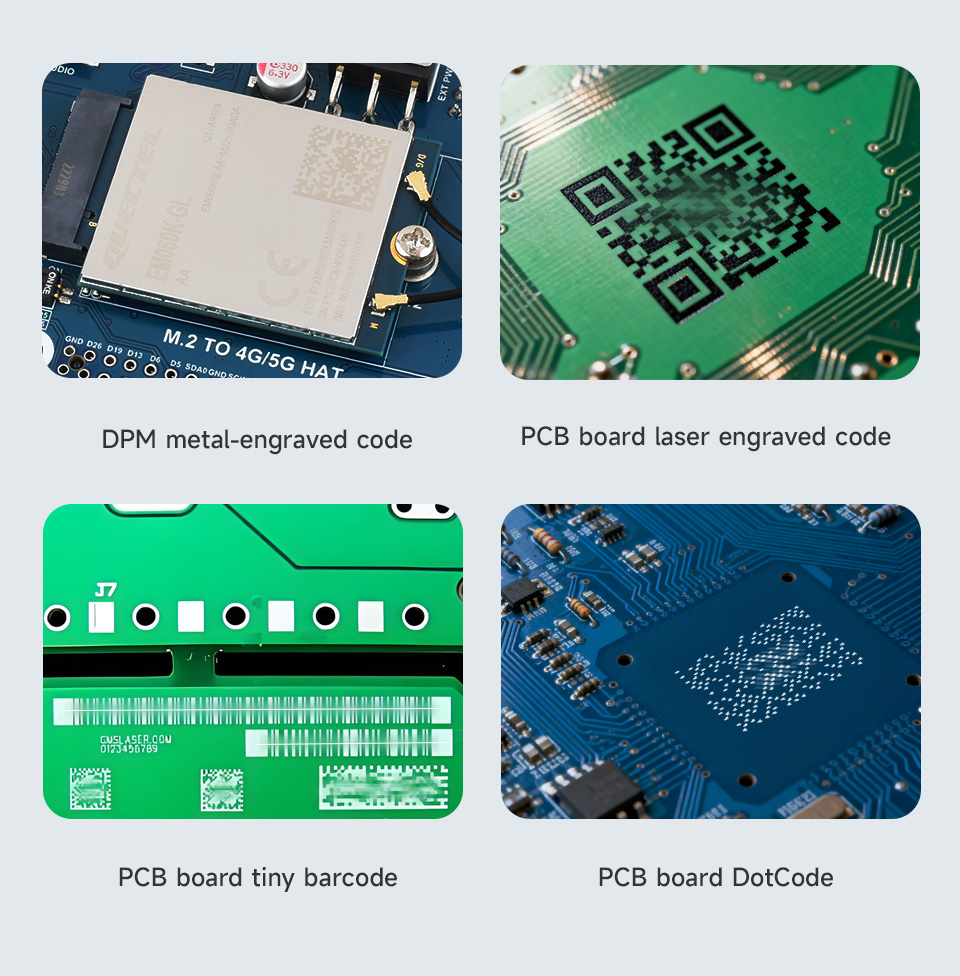

Compatible with various industrial carriers such as metal-engraved codes and PCB-engraved codes, enabling easy scanning of industrial barcodes including DotCode and DataMatrix (DM).

Supports Multiple Codes Scanning

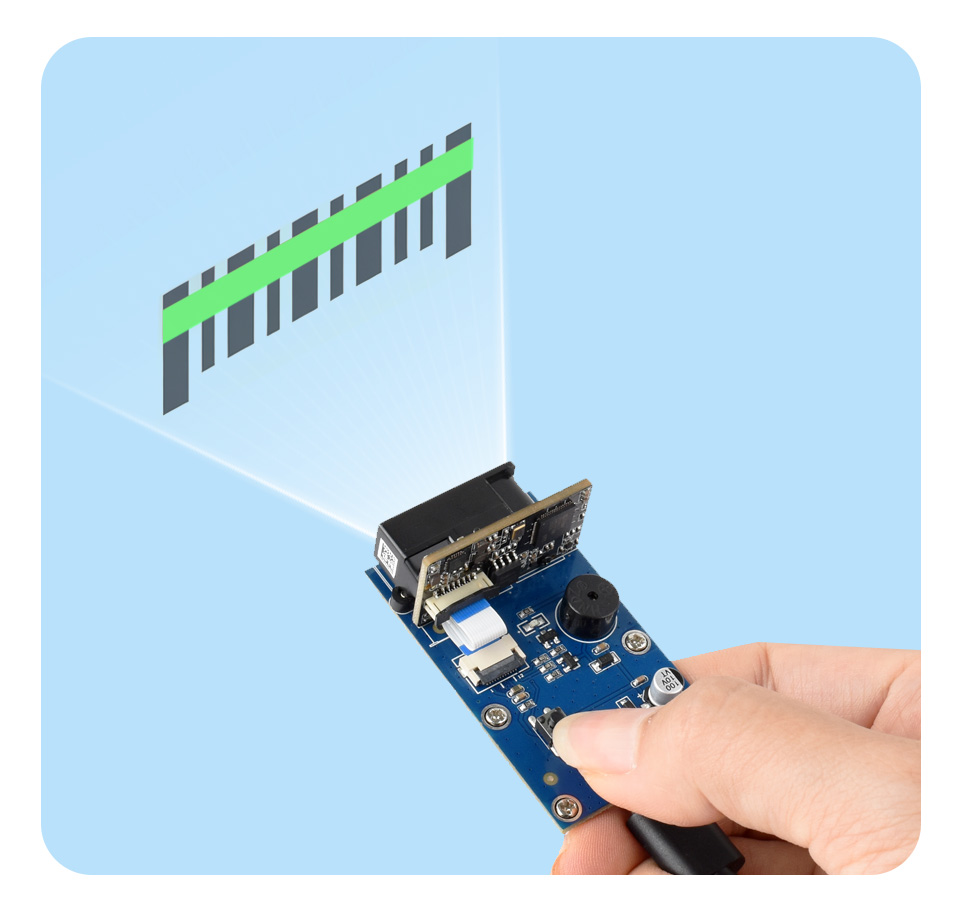

Supports Multiple Recognition Modes

Supports three modes including manual recognition, automatic continuous scanning recognition, and automatic sensing & scanning recognition.

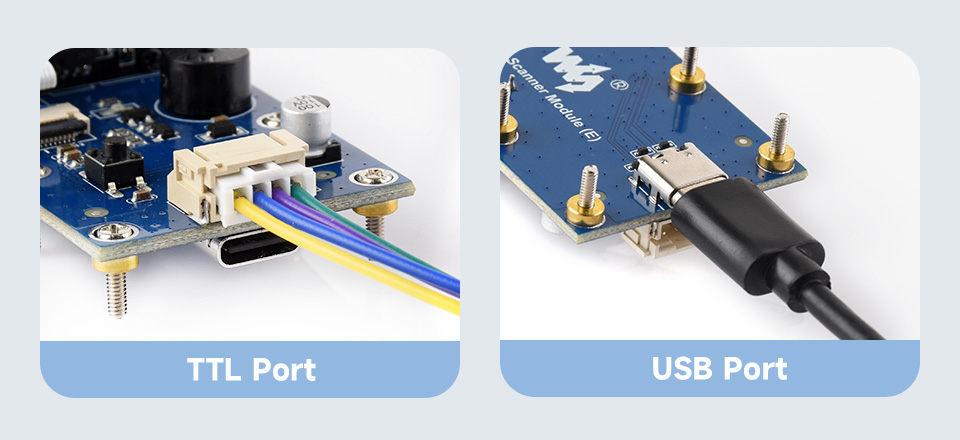

Two Communication Interfaces

Equipped with TTL and USB interfaces. It can be configured with three output modes: USB virtual serial port, USB keyboard mode, and TTL serial port.

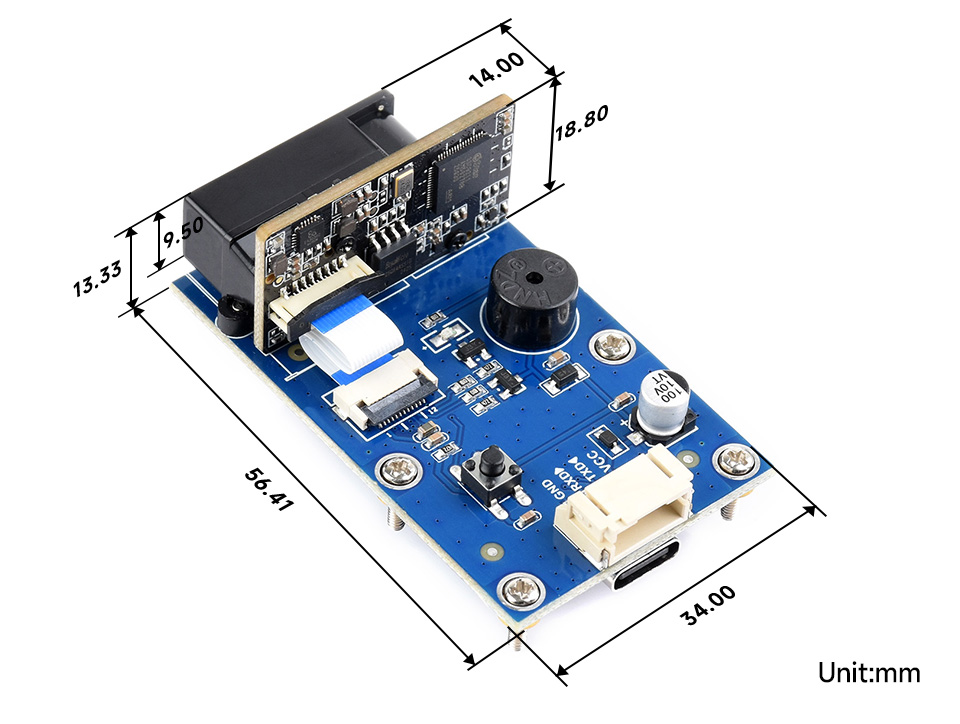

Outline Dimensions

Resources & Services

Wiki: www.waveshare.com/wiki/Barcode_Scanner_Module_(E)
