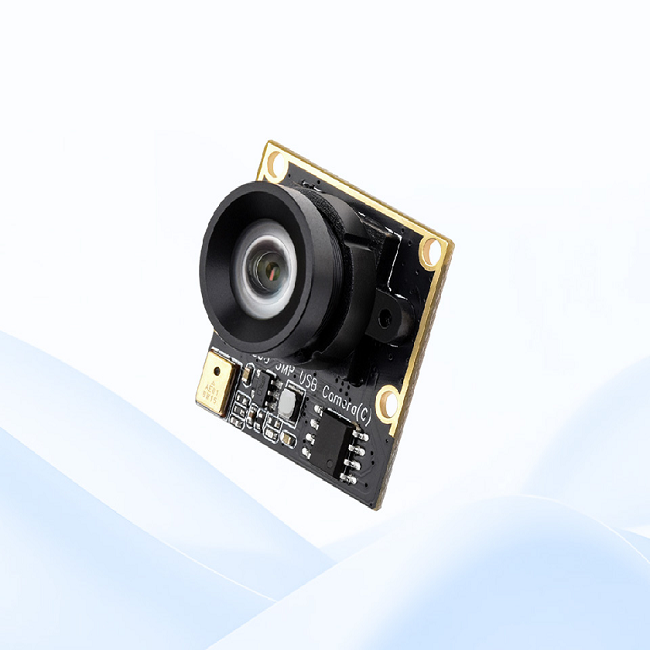

The Waveshare 31824 is the IMX335 5MP USB Camera (C) module which is the IMX335 5MP USB Camera (C), with 2K Video recording and cable, better sensitivity in Low-Light condition, Wide Dynamic Range, and Distortion-Free.
Part No: IMX335 5MP USB Camera (C)

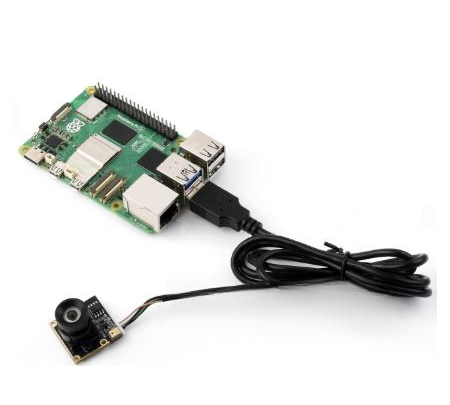

* for reference only, the Raspberry Pi 5, Jetson Orin kit and RDK X5 Development Board are not included.

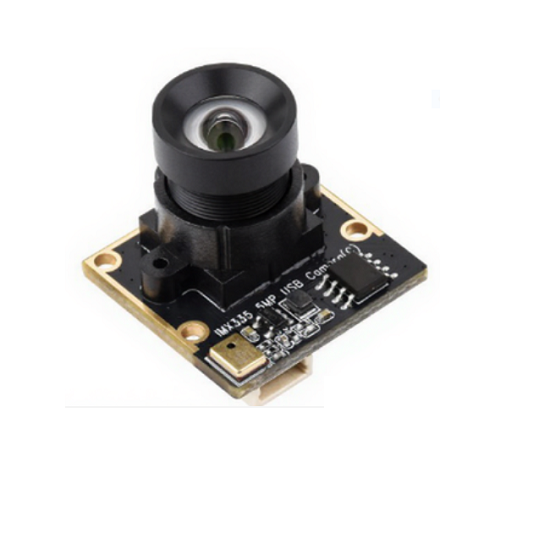

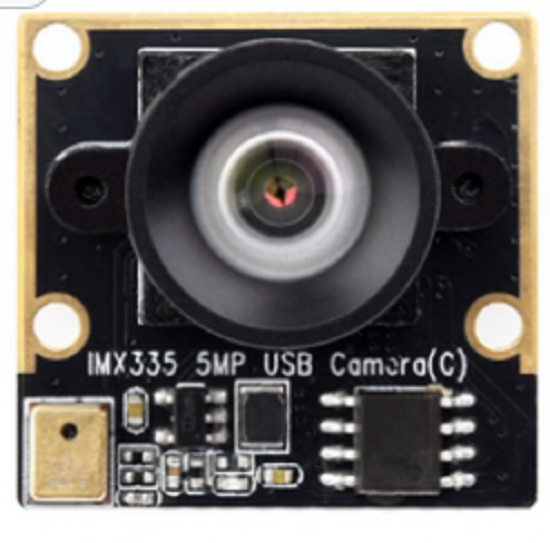

5MP USB camera module
IMX335 sensor, USB2.0 port, 91.7° distortion-free lens
Specifications
|
Pixels |
5MP |
|
|
Sensor |
IMX335 |
|
|
Interface |
USB 2.0 |
|
|
Camera |
Sensor size |
1/2.8 inch |
|
Aperture (F) |
2.4 |
|
|
Focal length (EFL) |
3.25mm |
|
|
Field of view (FOV) |
91.7° |
|
|
Distortion |
<-1.22% |
|
|
Focusing |
Fixed-focus |
|
|
Mount |
M12 |
|
|
CONSTRUCTION |
3G2P + IR Filter (650nm) |
|
|
Image |
Format support |
MJPG, YVY2 |
|
Static image resolution |
2592 × 1944 |
|
|
Video recording |
30 FPS 2592 × 1944 |
|
|
Dynamic range |
71.6dB@8xgain |
|
|
SNR |
36dB |
|
|
Audio |
onboard 1 × microphone |
|
|
Operating voltage |
5V ± 5% |
|
|
operating temperature |
-10°C~60°C |
|
|
Module size |
25.00 × 24.30 (mm) |
|

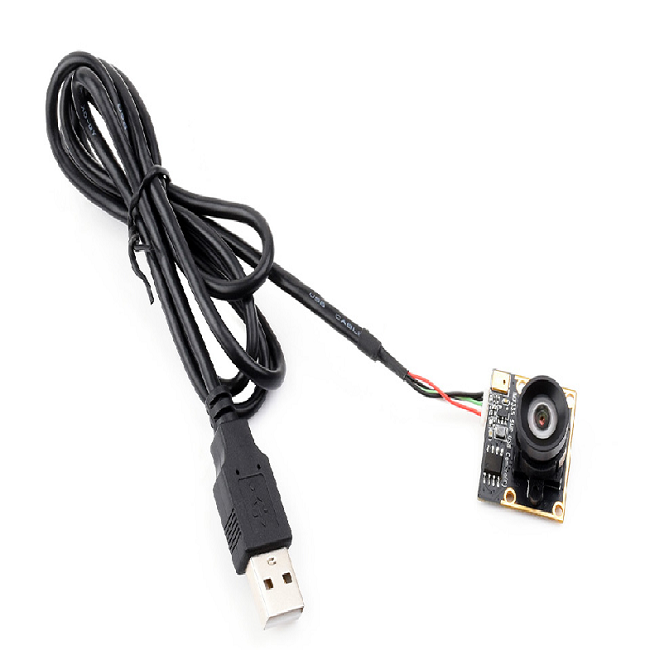

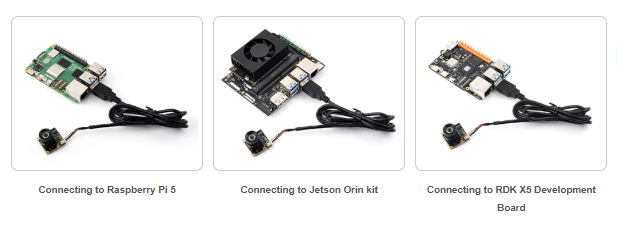

Connecting with USB cable
5MP High resolution
Supports 30 Frames Per Second output, suitable for capturing details
Better Low-light sensitivity
Provides a better imaging effect in low light condition
Wide Dynamic Range
Supports wide dynamic range technology for maintaining image details
and quality in high contrast scenes
Distortion-Free
Equipped with a distortion-free lens with a distortion rate of less than -1.22%,
delivering undistorted imaging and more accurate reproduction of real-world scenes

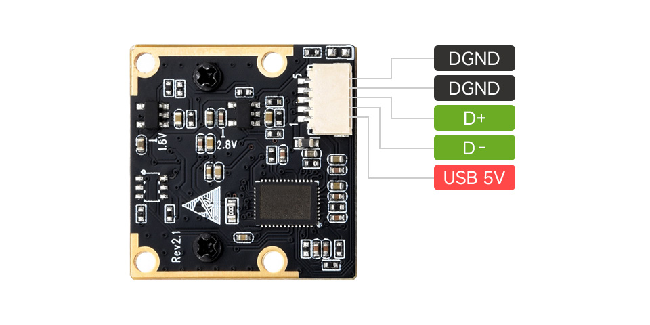

Pinout Definition

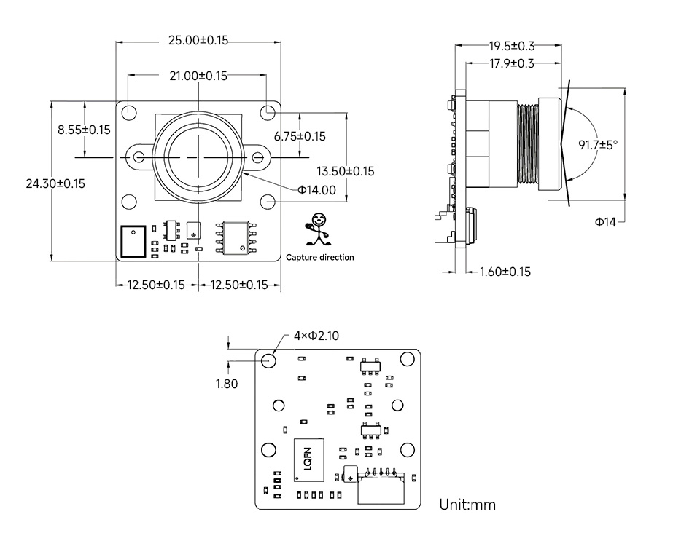

Outline dimensions
