FT-DC-002 2WD Robot Chassis Kit

This metal 2WD Robot Chassis Kit with DC Motors provides you with a high quality metal chassis frame complete with two DC motors, matching wheels and caster as well as a top metal plate with mounting hardware.

You can easily make a line tracking car, obstacle avoidance car or remote control vehicle by adding your own microcontroller such as an Arduino or Raspberry PI with a power supply, motor controller and sensors.

Additional top plates (FT-DC- M001) are available to provide extra working area on your chassis.

Note: Battery pack is not included.

Kit includes:

2x Wheels

2x DC Motors

1x Caster

1x Metal Chassis

1x Top Metal Plate with mounting hardware


Material: Anodized Aluminum

Motor Voltage: 3-6 VDC

Motor Current: 200-400 mA

Motor Stall current: 1.5A

Length: 100 mm / 3.9"

Width (wheels incl.): 109 mm / 4.3"

Height (wheels and 2 plates): 66 mm / 2.6"

Color: Red

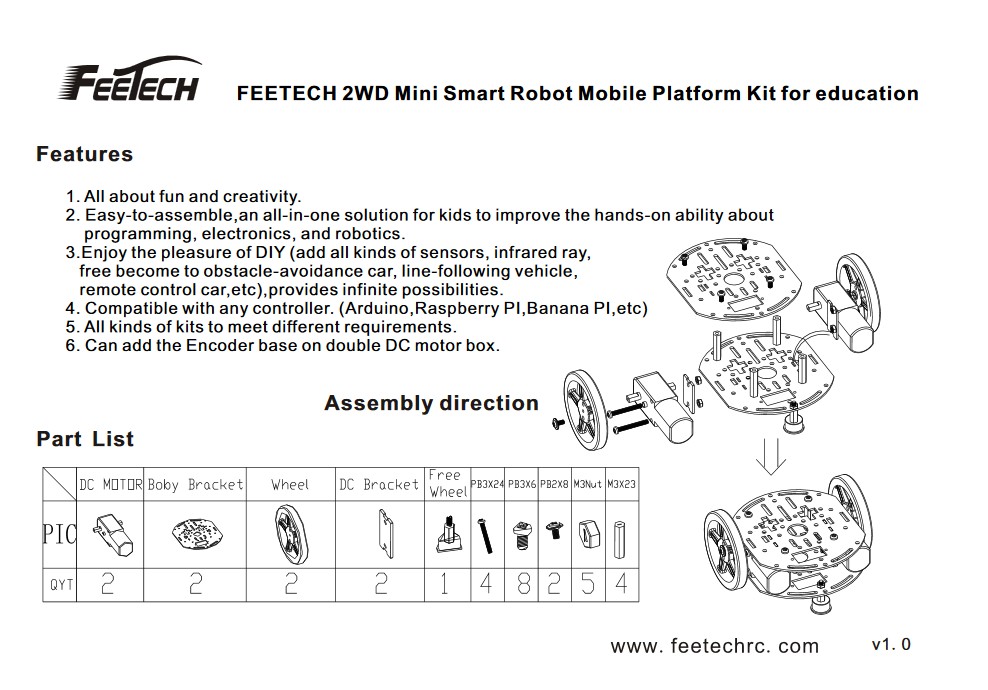

Instructions (FT-DC-002) (FT-DC-002_instructions.jpg, 152 Kb) [Download]
