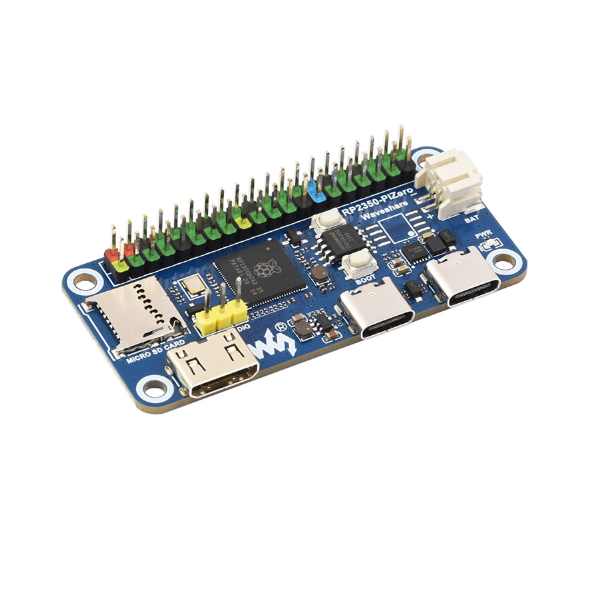

The Waveshare 31836 is the RP2350-PiZero module which is the RP2350-PiZero Development Board, based on The Raspberry Pi RP2350 Dual-core & Dual-architecture Microcontroller, 520KB SRAM And 16MB Onboard Flash Memory, Onboard DVI interface, with TF Card slot and PIO-USB Port.
Part: RP2350-PiZero
for reference only, the 1.3inch LCD HAT and 7inch HDMI LCD (H) are Not included.
RP2350-PiZero Development Board
Based on Raspberry Pi RP2350
Onboard DVI interface, TF card slot and PIO-USB port
Board specifications
RP2350-PiZero is a high-performance and cost-effective microcontroller board designed by Waveshare, onboard DVI interface, TF card slot and PIO-USB port, compatible with Raspberry Pi 40PIN GPIO header, with reserved solder pads for PSRAM chip expansion, easy to develop and integrate into products.
- RP2350B microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
- 520KB of SRAM, and 16MB of onboard Flash memory, with reserved solder pads for PSRAM chip expansion
- Type-C connector for easier use

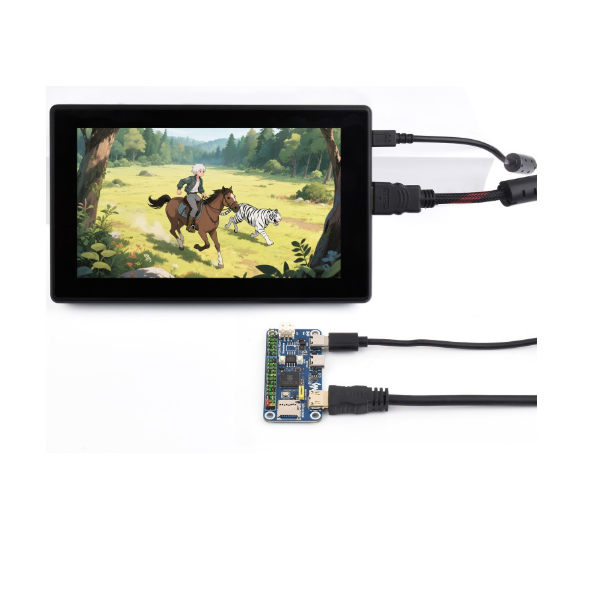

- Onboard DVI interface can drive most HDMI screens (DVI compatibility required)
- Supports using as a USB host or device via onboard PIO-USB port
- Onboard TF card slot for reading and writing TF card
- Onboard Lithium battery recharge/discharge header, suitable for mobile scenarios
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- Adapting 5 × multi-function GPIO pins
- 2 × SPI, 2 × I2C, 2 × UART, 2 × 12-bit ADC, 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 12 × Programmable I/O (PIO) state machines for custom peripheral support.

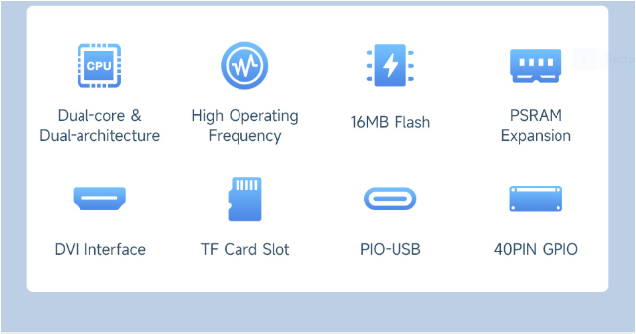

Integrates multiple Interfaces

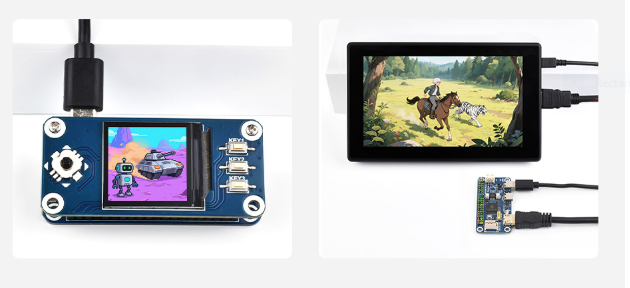

Onboard DVI interface, PIO-USB port and TF card slot for more possibilities
* the DVI and PIO-USB functions are only supported in C environment, cannot be used at the same time.
Support C/C++, MicroPython, Arduino IDE
Comprehensive SDK, Dev Resources, Tutorials To Help You Easily Get Started
Dual-core, Dual-architecture
The unique dual-core, dual-architecture capability of RP2350B allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment.
What's On Board

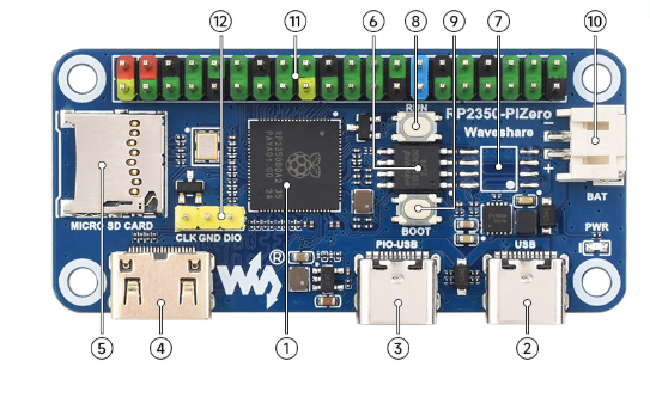

- RP2350B
Dual-core and dual-architecture design, up to 150 MHz operating frequency - USB Type-C connector
for programming, USB 1.1 with device and host support - PIO-USB port
for using as a USB host or device via PIO - DVI interface (Mini HDMI connector)
for driving DVI screen with HDMI cable - TF card slot
supports SPI and SDIO interface communication - 16MB NOR-Flash
- PSRAM chip solder pads
Compatible with mainstream PSRAM chips for user expansion (soldering required) - RUN button
reset button - BOOT button
Press it when resetting to enter download mode - Lithium battery header
PH2.0 header, for connecting 3.7V Lithium battery, allows recharging/discharging the

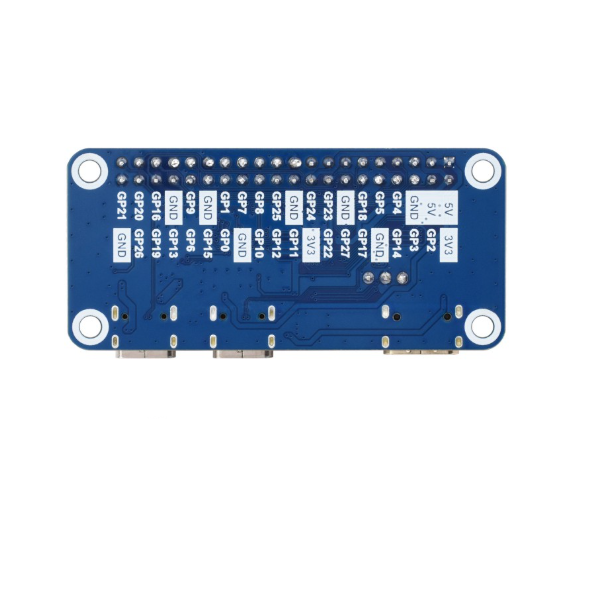

battery - 40PIN GPIO header
Compatible with some Raspberry Pi HATs - Debug interface

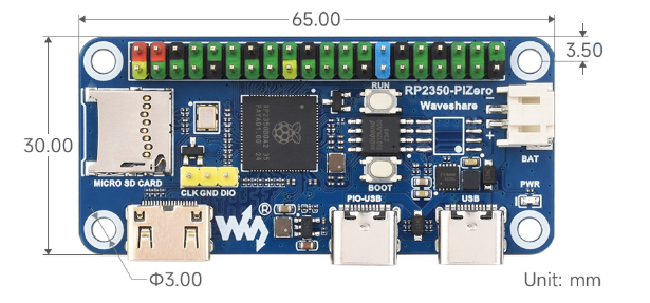

Outline Dimensions
Wiki: RP2350-PiZero
