WAVE-32501, IMX296 Global Shutter Camera Module, IMX296 Sensor Chip, 1.6MP

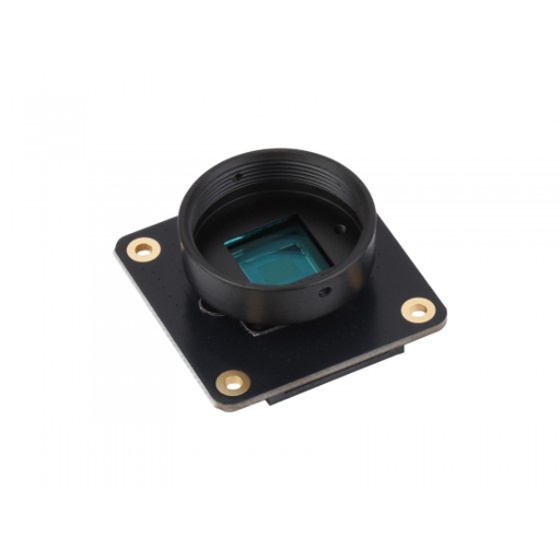

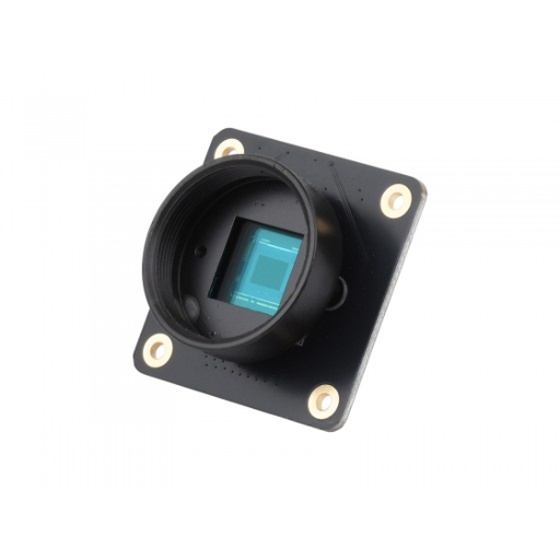

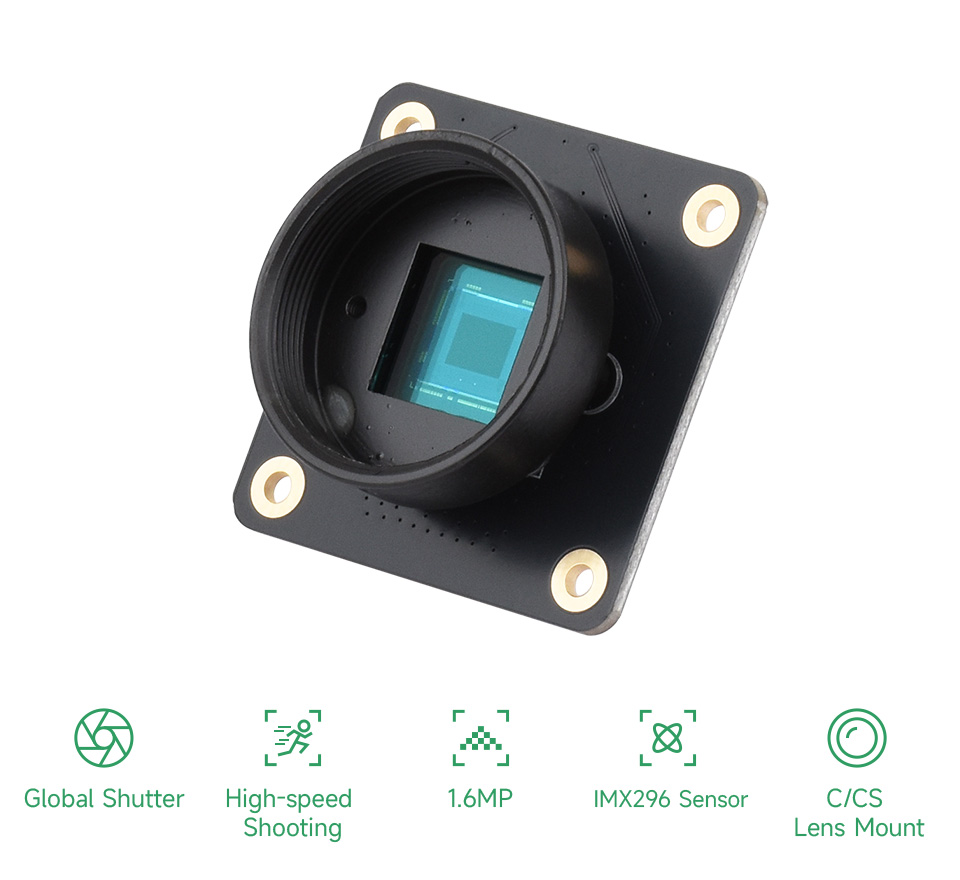

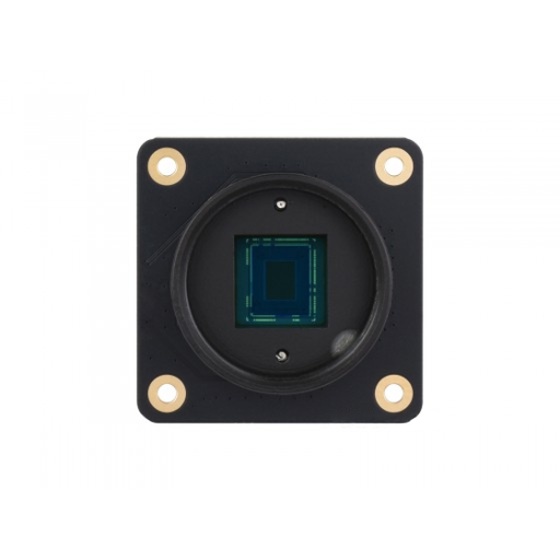

IMX296 Global Shutter Camera Module
IMX296 Sensor | 1.6MP | Raspberry Pi series boards support
Features at a glance
The IMX296 Global Camera (A) is based on the IMX296 sensor with 1.6MP resolution. It captures fast moving objects without the jello-effect of rolling shutter, ideal for high-speed photography and machine vision. Includes a C- to CS-mount adapter for industrial lenses. Dual cables included, compatible with all Raspberry Pi boards.
Specifications
| Sensor Model | IMX296 |
|---|---|
| Resolution | 1456 × 1088 (1.6MP Color) |
| CMOS diagonal size | 6.3 mm |
| Pixel size | 3.45 × 3.45 µm |
| Output | RAW10 |
| Lens Support | C-mount / CS-mount (C-CS adapter included) |
| IR cut filter | Integrated |
Global shutter, more clear imaging
The global shutter eliminates jello-effect while shooting fast moving objects, suitable for high-speed motion capturing.
* Images simulated for reference only; please refer to actual shooting effect.
With mounted lens
* 16mm telephoto lens not included; purchase separately.
Working with Raspberry Pi
* Raspberry Pi 5, Raspberry Pi Zero 2 W, and 16mm Telephoto Lens not included; purchase separately.
Outline Dimensions
