The Waveshare 32004 is the IMX415 8MP Camera (A) module which is the IMX415 8MP Camera Module (A), with high SNR, good low light performance, supports Raspberry Pi / Luckfox Series Boards.
The signal-to-noise ratio (SNR) of a camera describes the ratio between the light signal and the image noise. A higher SNR means a clearer image with less noise, which leads to better image quality.
Part: IMX415 8MP Camera (A)
* for reference only, Raspberry Pi 4B, Raspberry Pi 5, Zero W, Zero 2 W, Luckfox-Omni3576, and yellow FPC are NOT included.
Package contents:
1. IMX415 8MP Camera (A) ×1
2. 22-pin FPC cable ×1

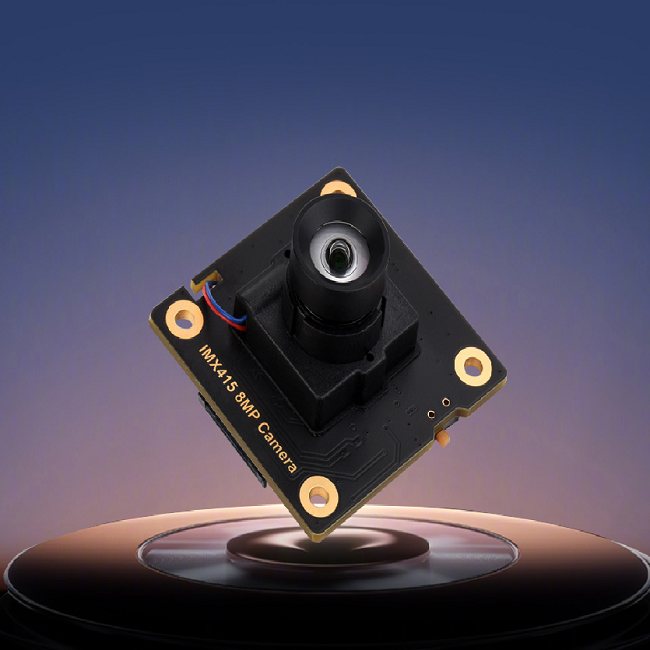

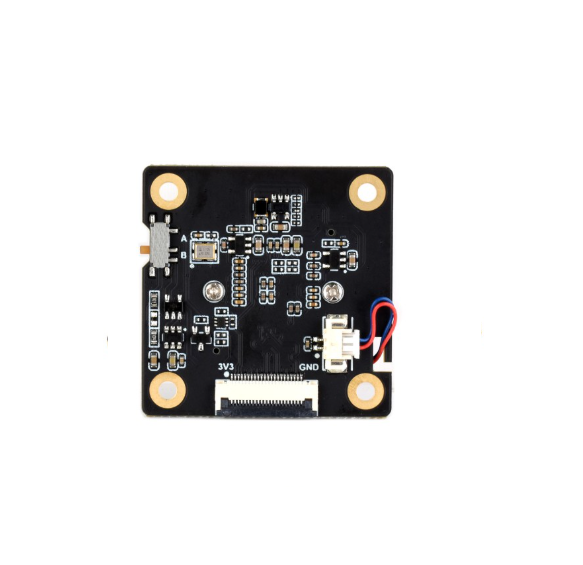

IMX415 8MP Camera (A)
Adopts IMX415 Sensor Chip With 95.5° Wide Angle Lens

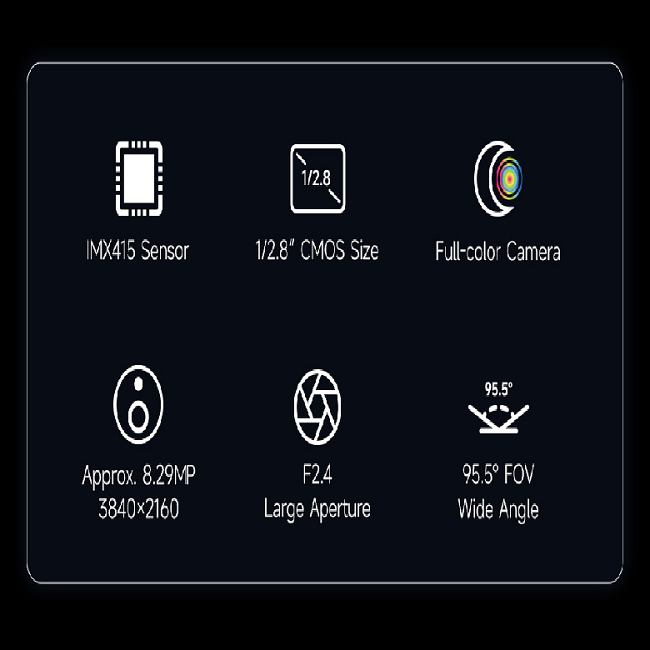

Specifications
|
Sensor |
IMX415 |
CMOS size |
1/2.8″ |
|
Camera type |
Color |
Recommended |
Approx. 8.29MP (3840×2160) |
|
Image size |
Diagonal 6.43mm |
Unit cell size |
1.45um (H) × 1.45um (V) |
|
Aperture |
F2.4 |
Focal length |
2.88mm |
|
FOV |
95.5° |
Distortion |
<1% |
|
Applications |
Suitable for AI applications such as facial recognition, road marking recognition, license plate recognition, etc. |
||

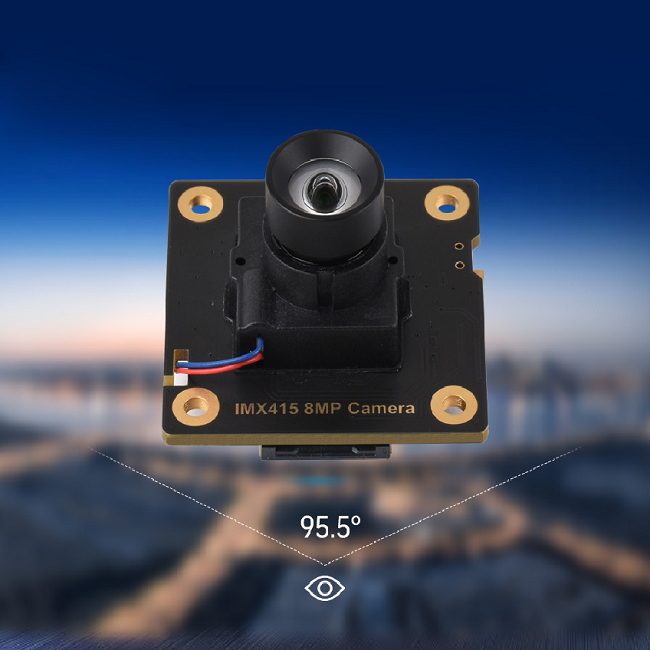

Wide field of view
Onboard 95.5° wide angle lens, provides a wider picture range and viewing angle
High SNR and Low Light Performance

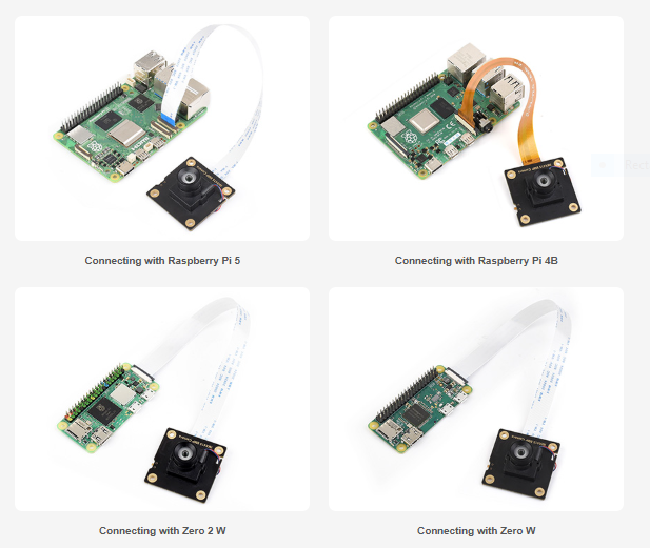

Multiple Motherboards Support
Compatible with Raspberry Pi 5 / Zero Series / Zero 2W Series Boards
Extra FPC Cable Is Required For Raspberry Pi 4B+ / 3B+ / 3B Series

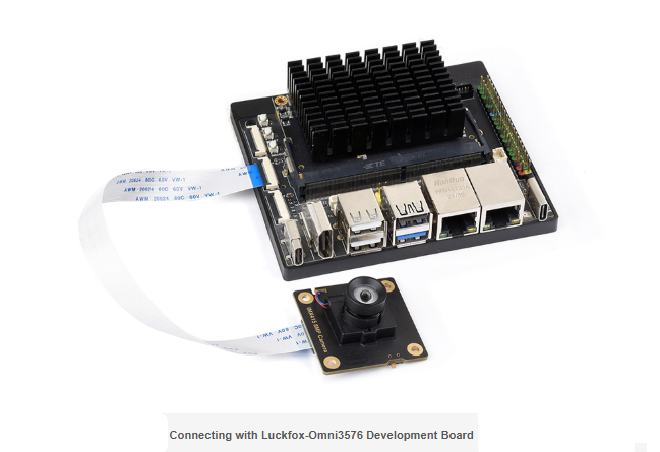

Supports Luckfox motherboards
Can be directly connected to Luckfox-Omni3576 Development Board

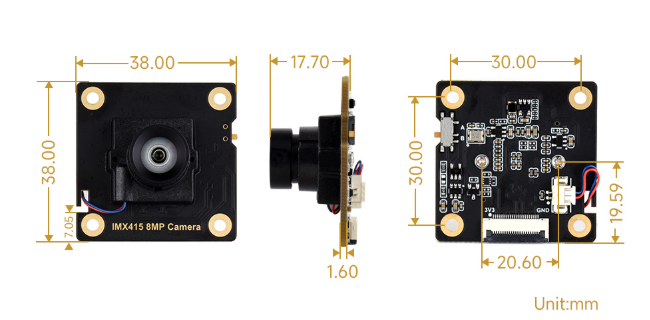

Outline Dimensions
Wiki: IMX415_8MP_Camera_(A)
