The Waveshare 30901 is the PoE HAT (H) module which is the Raspberry Pi 5 PoE HAT for Raspberry Pi 5 / CM 5, 5V 5A Output, Supports 802.3af/at Network Standard, with Isolated Switched-mode Power Supply.
Part No: PoE HAT (H)
* for reference only, the Raspberry Pi 5, the official Raspberry Pi Case, 120W switch and active cooler are NOT included.

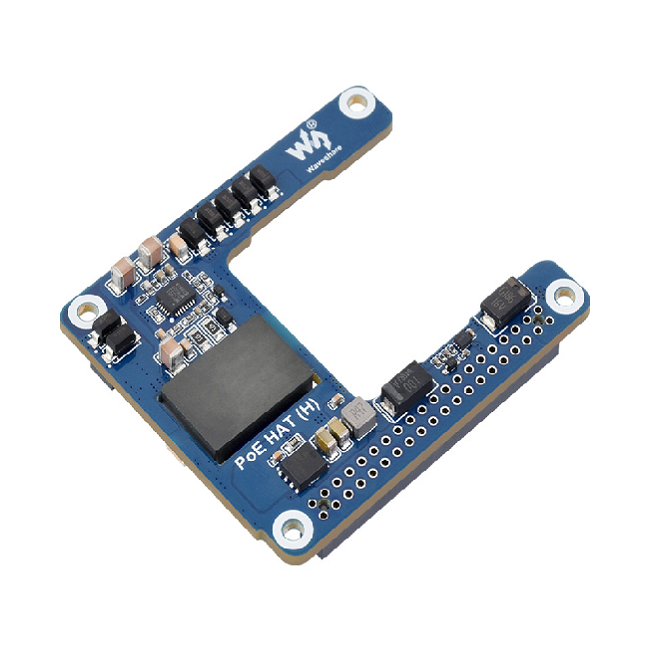

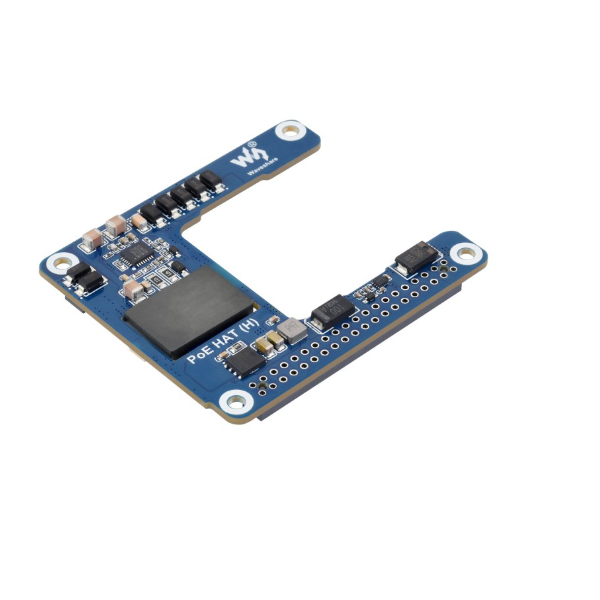

PoE HAT (H) for Raspberry Pi 5
Suitable For Raspberry Pi 5 / CM 5, Supports IEEE 802.3af/at Network Standard
5V 5A Output, Compatible with Raspberry Pi 5 Official Case
Features
The PoE HAT (H) is an IEEE 802.3af/at-compliant PoE+ (Power Over Ethernet) HAT for Raspberry Pi 5 / CM 5. By using with a PoE router or switch that supports the IEEE 802.3af/at network standard, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
- Standard Raspberry Pi 40PIN GPIO header
- PoE / PoE+ capability, IEEE 802.3af/at-compliant
- Onboard original IC solution for more stable PoE power performance
- Adopts isolated switched-mode power supply (SMPS)
- Compact and easy to assemble
Specifications PoE HAT (H)
PoE power input: 38V ~ 57V DC in
Power output: GPIO header: 5V ±5% 5A (MAX)
Dimensions: 56.5 × 65.0mm
Network standard: IEEE 802.3af/at PoE / PoE+
Suitable for Raspberry Pi 5 / CM 5
Standard Raspberry Pi 40PIN GPIO header, easy to assemble
PoE / PoE+ support
Providing both network connection and power supply for the
Raspberry Pi 5 / CM 5 in one single cable

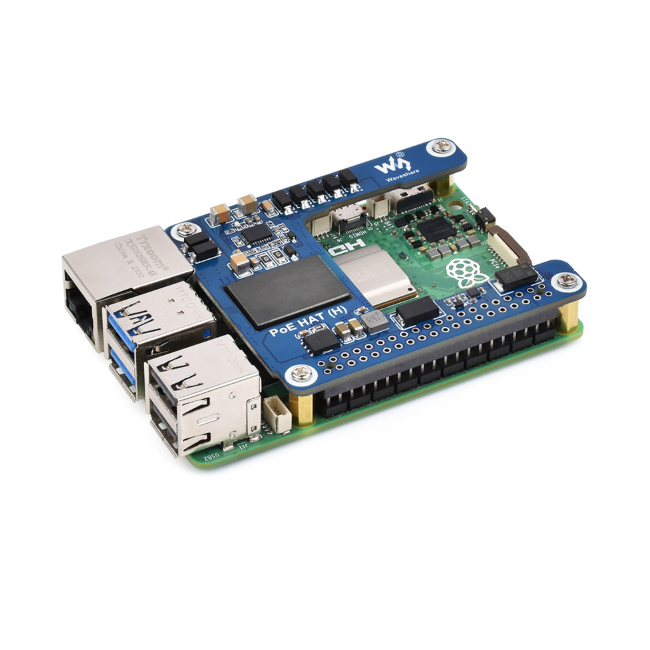

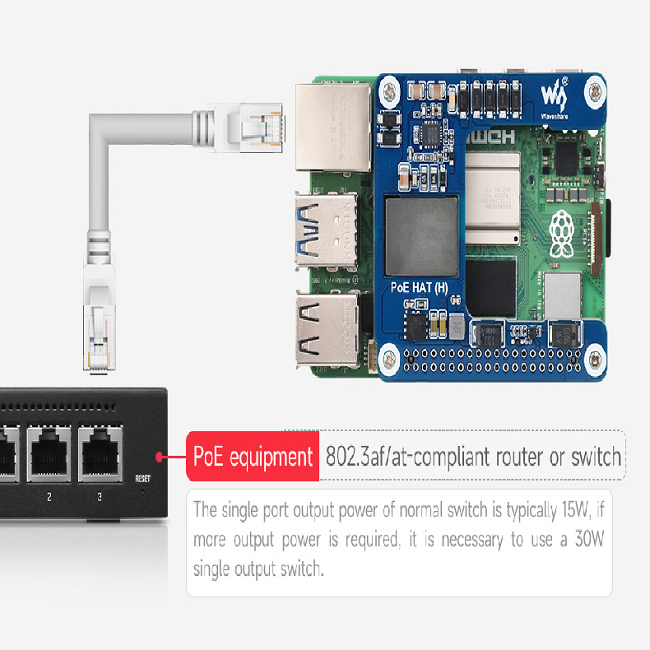

Application Example

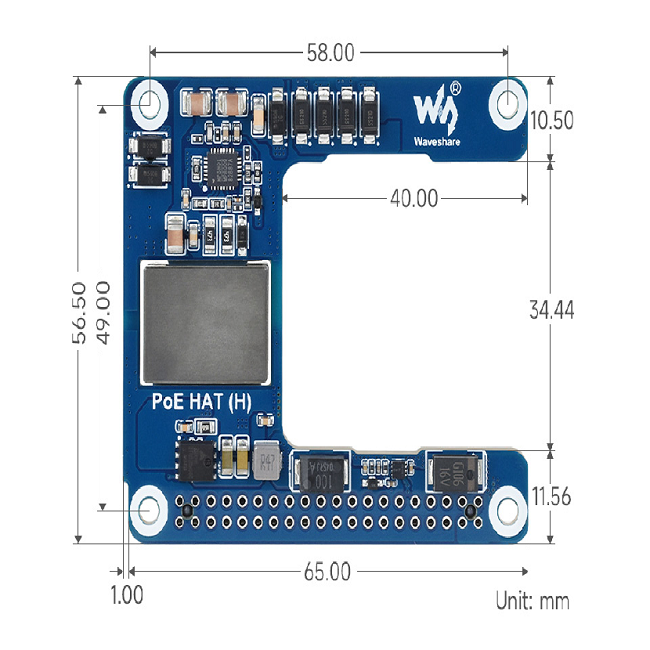

Outline dimensions

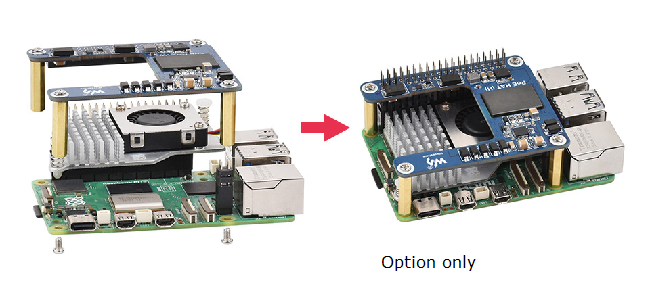

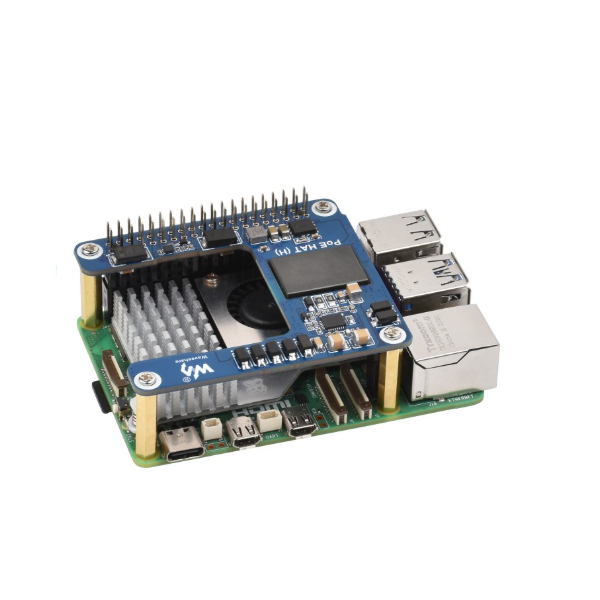

Compatible With Raspberry Pi 5 Official Active Cooler (option)

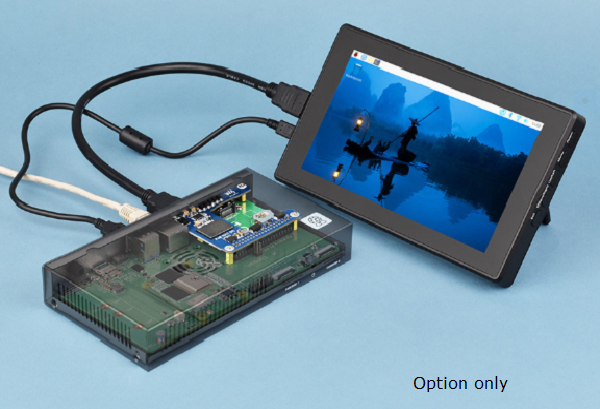

Installation with Raspberry Pi 5 Official Case (option)
WIKI: PoE_HAT_(H)
