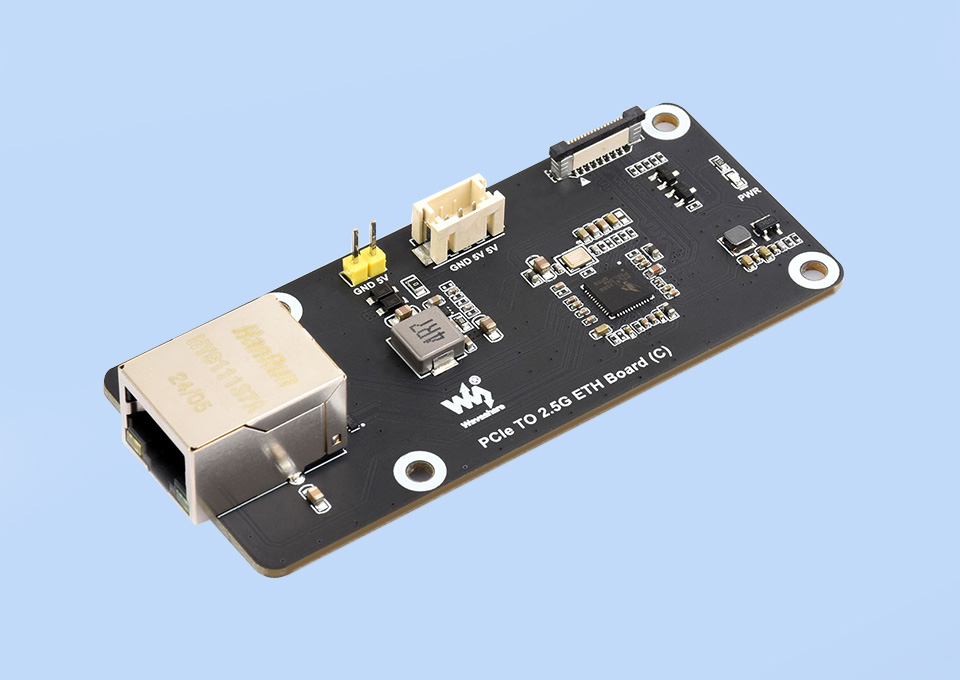

WAVE-33042, PCIe TO 2.5G ETH Board (C) For Raspberry Pi 5, Supports Raspberry Pi OS, Driver-Free, Plug And Play
PCIe TO 2.5G ETH Board (C)
Designed for Raspberry Pi 5
Supports Raspberry Pi OS, Driver-free, Plug and Play
Specifications
| Controller | RTL8125 |
|---|---|
| Ethernet Port | RJ45 2.5G Ethernet |
| PCIe Interface | PCIe x1 GEN2 |
| Power Supply | 5V |
| Network Standard | 10 / 100 / 1000 / 2500Mbps |
| Indicator Status | Green: blinking during communication Yellow: lights up when connected |

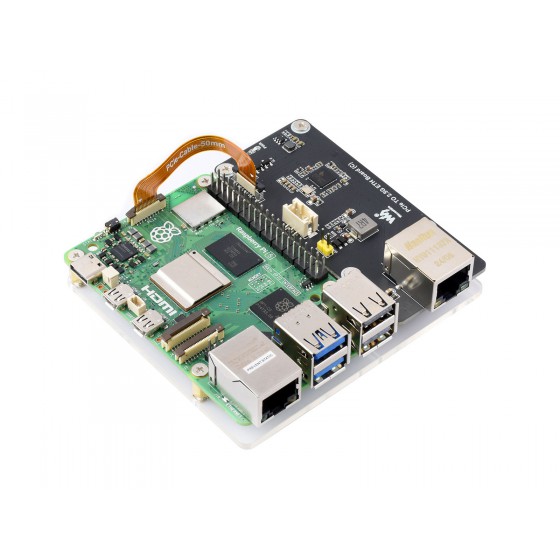

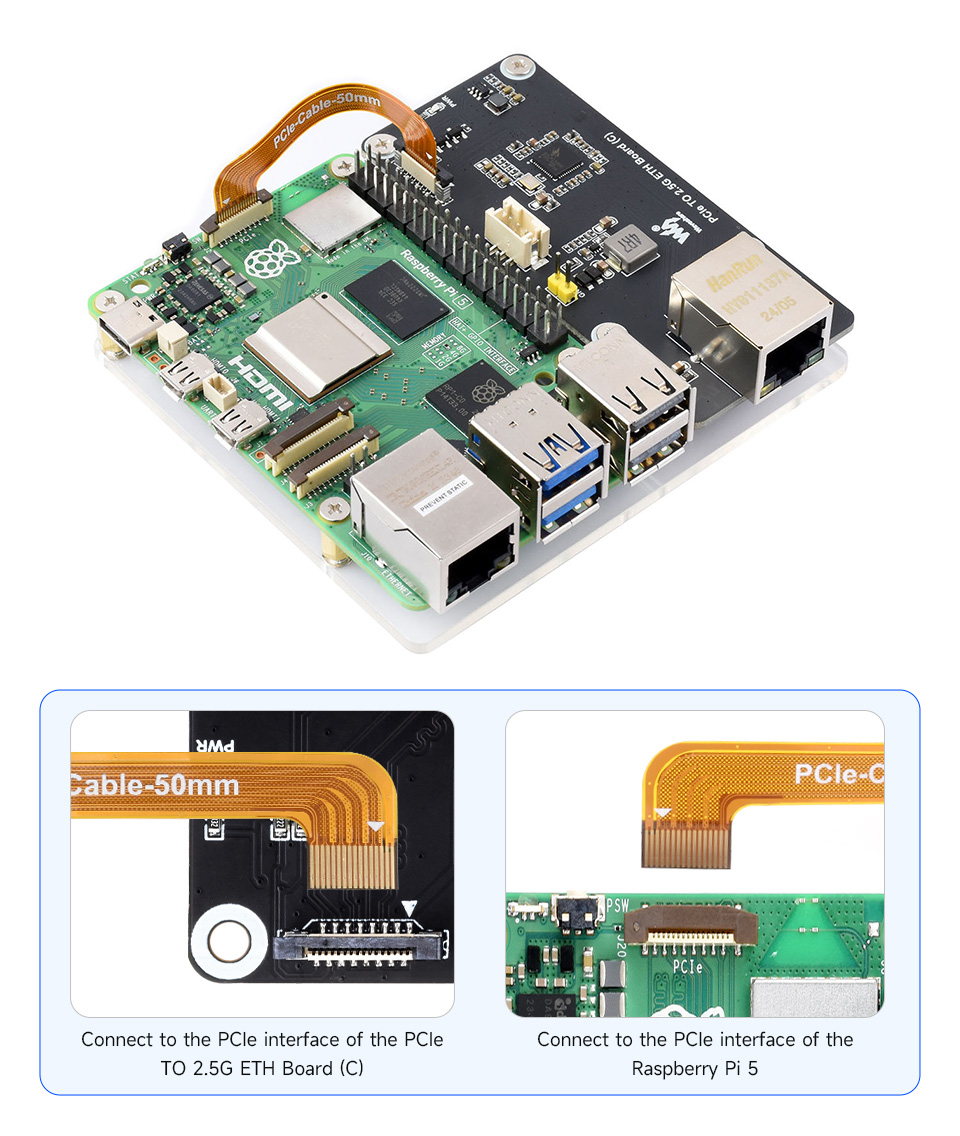

Connecting to Raspberry Pi 5 via 16-pin cable
Based on 16-pin PCIe interface of Raspberry Pi 5
* For reference only, Pi not included.

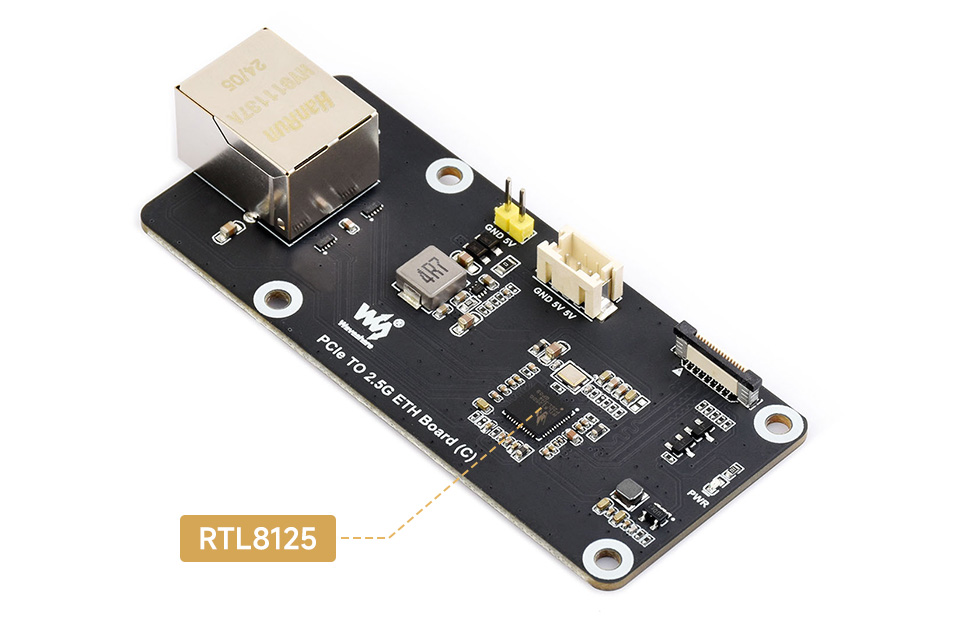

High-performance controller
Onboard original high-performance RTL8125 chip
Supports Raspberry Pi OS, Driver-free, Plug and Play

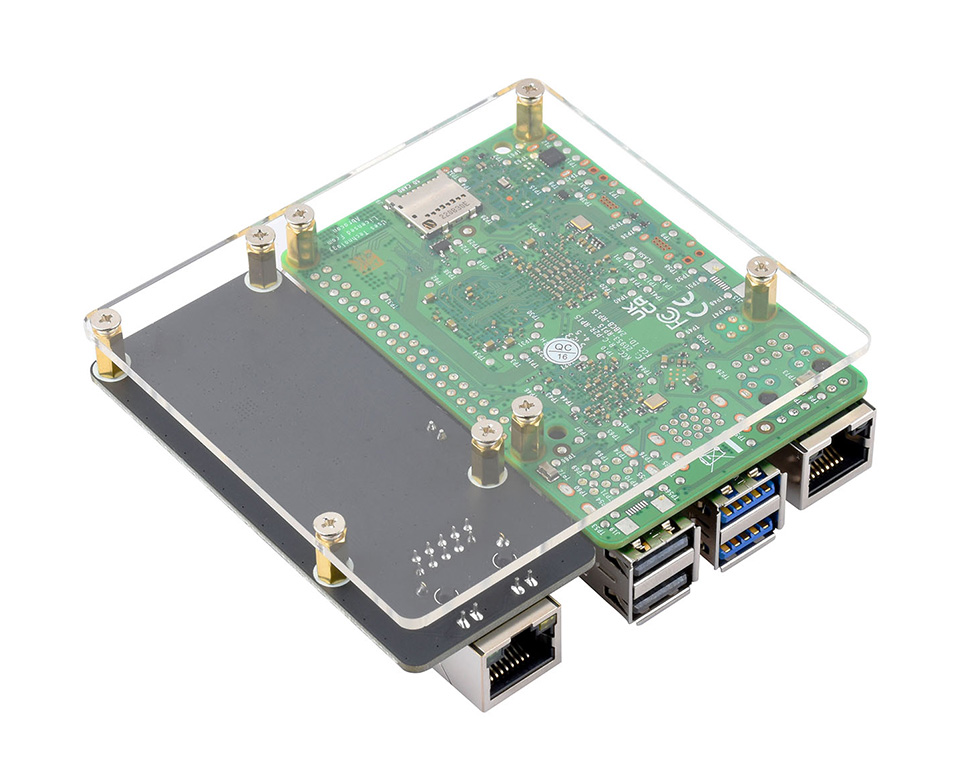

Transparent acrylic mounting plate included
Side-mounting design saves space above the Raspberry Pi 5
* For reference only, Pi not included.

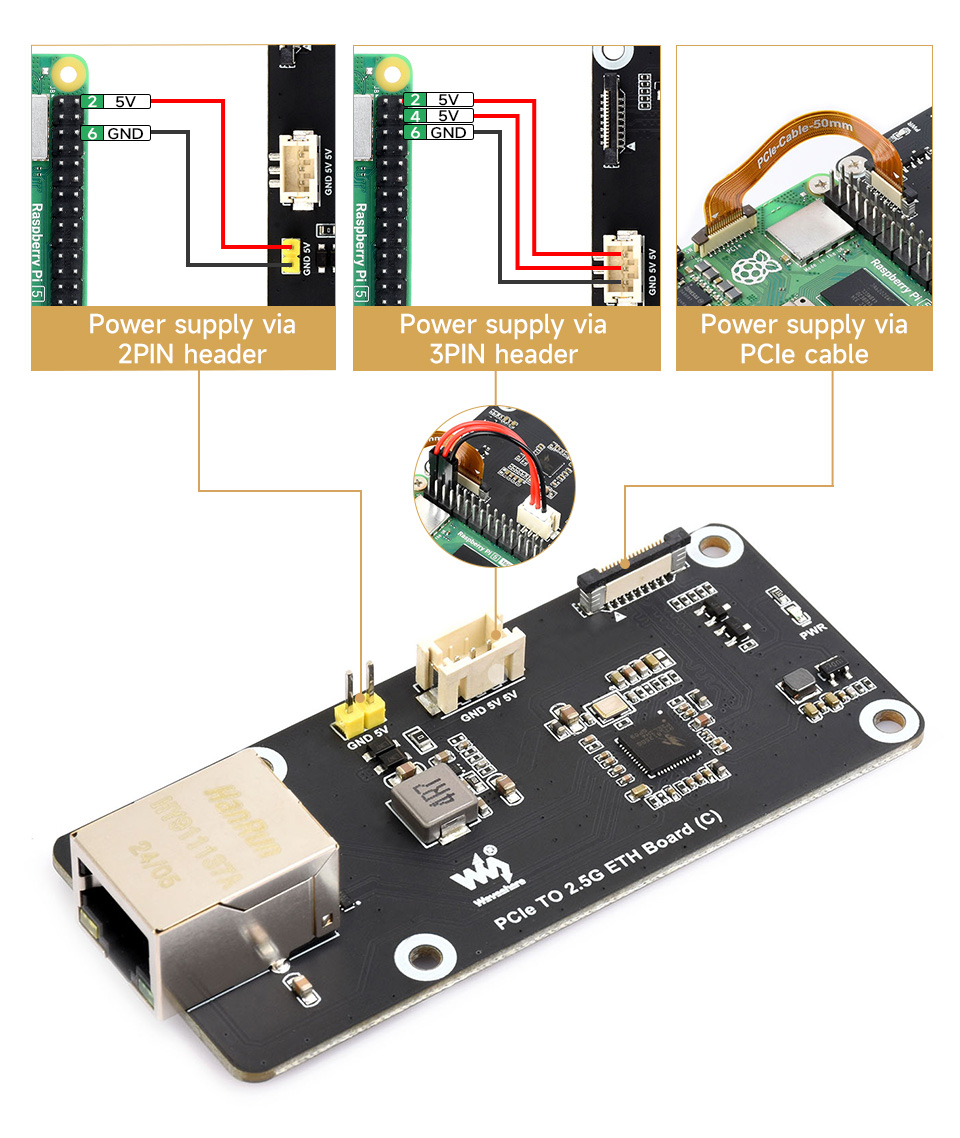

Power supply methods
Powered via PCIe cable by default

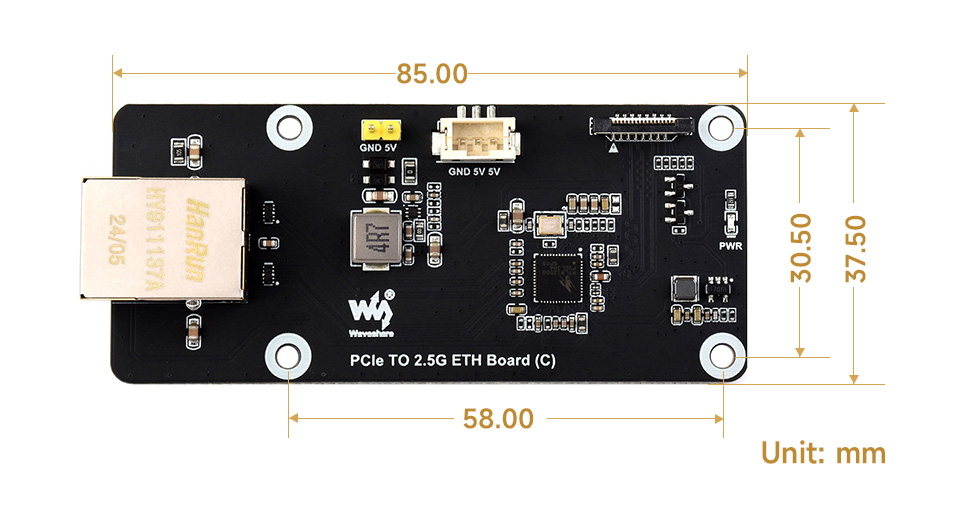

Outline dimensions
