WAVE-30661, RA4M1-Zero Mini Development Board, Based On 32-bit MCU-RA4M1, 48MHz Operating Frequency
RA4M1-Zero Mini Development Board
Based on 32-bit MCU-RA4M1, onboard multiple GPIO pins.
Castellated module, suitable for SMD applications.
Board Specifications
- Powerful Core Performance: Adopts Renesas RA4M1 MCU, based on 32-bit ARM Cortex-M4 architecture. Operates at 48MHz with built-in FPU (Floating Point Unit), equipped with 256KB flash memory, 32KB SRAM, and 8KB EEPROM.
- Rich Hardware Resources: Equipped with 14-bit ADC, 12-bit DAC, CAN bus controller, USB 2.0 interface, and onboard RGB LED.
- Enhanced Security Features: Supports firmware encryption, secure boot, and tamper-proof features to enhance data and system security.
- Efficient Software Ecosystem: Compatible with Arduino IDE for rapid development and convenient debugging.
- Compact Form Factor: Follows Waveshare's classic Zero-size design (18 × 23.5 mm), suitable for space-constrained applications.
- Mass Production Friendly: Uses SMT with all pads on the front side and a castellated hole design for easy custom expansion.
Arduino Development Supported
What's On Board

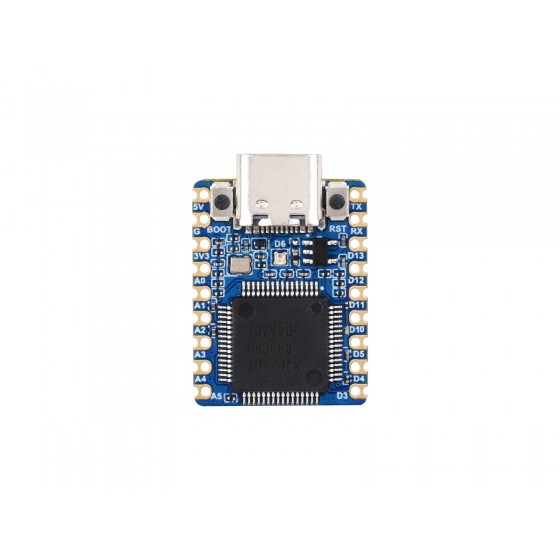

- Renesas R7FA4M1AB3CFM
Onboard FPU, up to 48MHz operating frequency - WS2812 Cool RGB LED
Controlled via MCU GPIO D6 pin - BOOT Button
Press when resetting to enter Bootloader download mode - USB Type-C Connector
For program downloading, supports USB1.1 hosts and slave devices - RESET Button
- ME6217C33M5G
Low dropout LDO, max current 800mA - 0Ω Resistor
3.3V / 5V MCU voltage selection, 3.3V by default

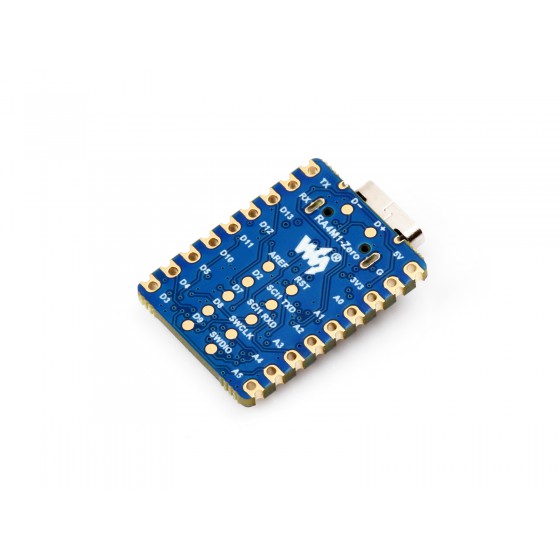

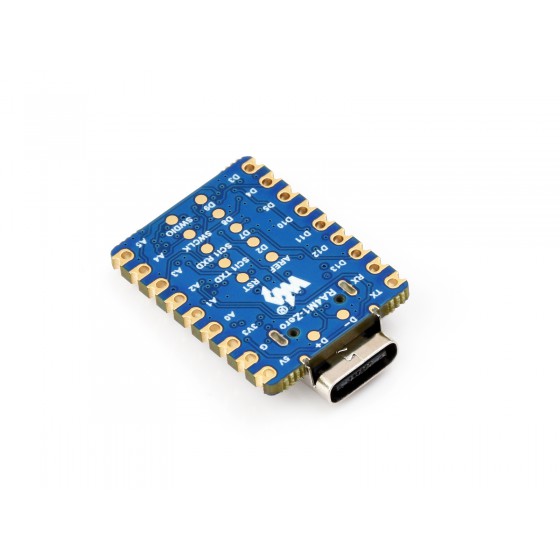

Pin Definition
Outline Dimensions
