WAVE-33495, Waveshare Jetson Orin Nano / NX Super Base Board HDMI Version, Based on Jetson Orin Nano/NX AI Module
This product is the base board only. Please purchase the Orin Module separately.

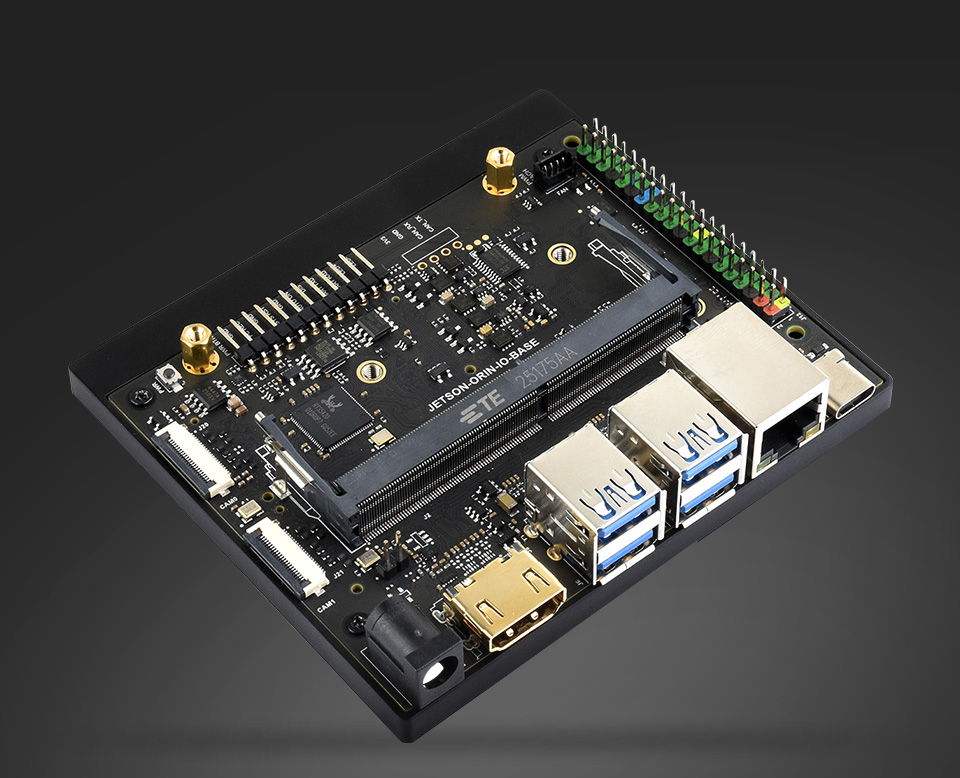

Waveshare Jetson Orin Nano / NX Base Board (HDMI Version)
Based on Jetson Orin Nano and Jetson Orin NX modules, with HDMI video output. Except for the video output interface, it provides almost the same peripheral interfaces, size, and thickness as the official Jetson Orin Nano Developer Kit, making it suitable for developing and deploying various AI applications.
Compatible with Orin Modules
Supports NVIDIA Jetson Orin Nano modules and Jetson Orin NX modules.
Connects to CSI Cameras
Onboard dual CSI camera ports for AI applications such as face recognition, road sign recognition, and license plate recognition.
* Adapter cables are required for connecting cameras.
5 × USB Ports
Includes 4 × USB Type-A and 1 × USB Type-C. USB 3.2 Gen 2 ports support data transmission up to 10Gbps, and the Type-C port can be used for system flashing.
* Orin module and cooling fan are not included.
40-Pin Color-Coded GPIO Header
Color-coded pins help differentiate I/O resources such as I2C, SPI, I2S, UART, and GPIO.
Flexible Storage and Wireless Expansion
Features 2 × M.2 Key M slots for NVMe SSDs and 1 × M.2 Key E slot for wireless network cards, reducing cable clutter.
* SSD and wireless NIC are not included.
Onboard Resources
- 260-pin SO-DIMM socket – for Jetson Orin Nano / NX module
- 12-pin control header – power, reset, force recovery, serial debug, auto power-on, status indication
- Power button
- 2 × 22-pin CSI camera connectors – dual MIPI CSI 4-lane interfaces
- DC power jack – 9V–19V input, 5.5 × 2.5 mm plug
- HDMI port – video output
- 4 × USB 3.2 Gen2 Type-A ports – up to 10Gbps
- Gigabit Ethernet port
- USB Type-C port – system flashing and data
- 40-pin GPIO header
- 4-pin PWM fan header
- M.2 Key E slot – wireless NIC
- 2 × M.2 Key M slots – NVMe SSDs
- RTC battery connector – PH1.25 2-pin
