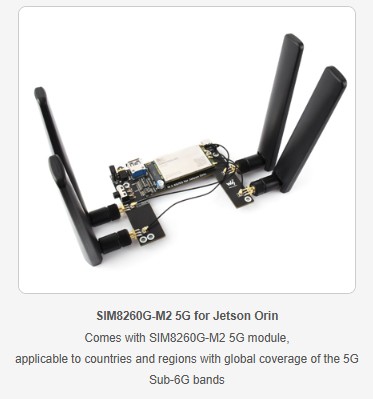

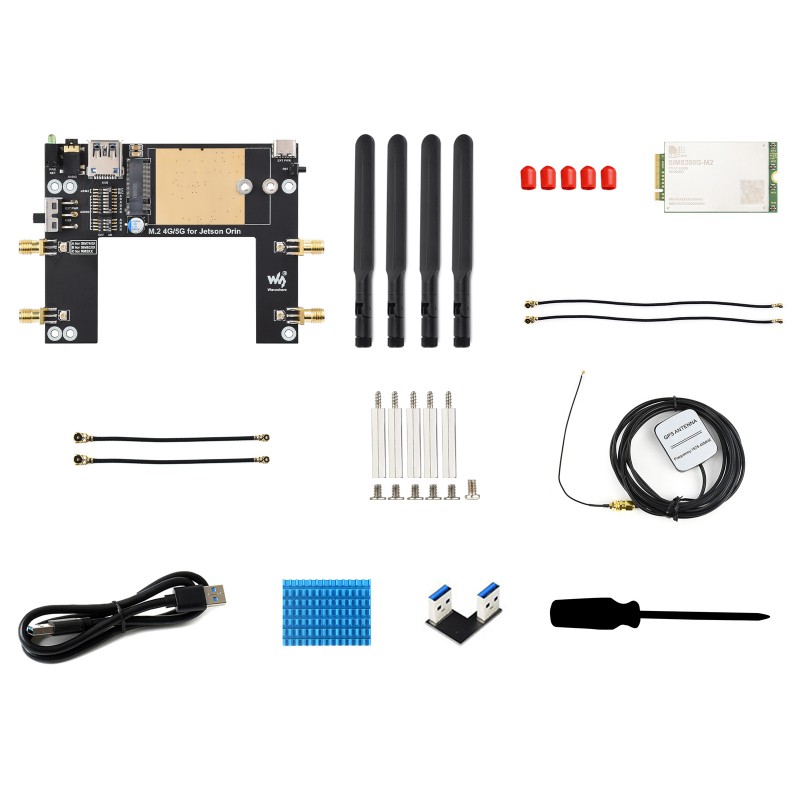

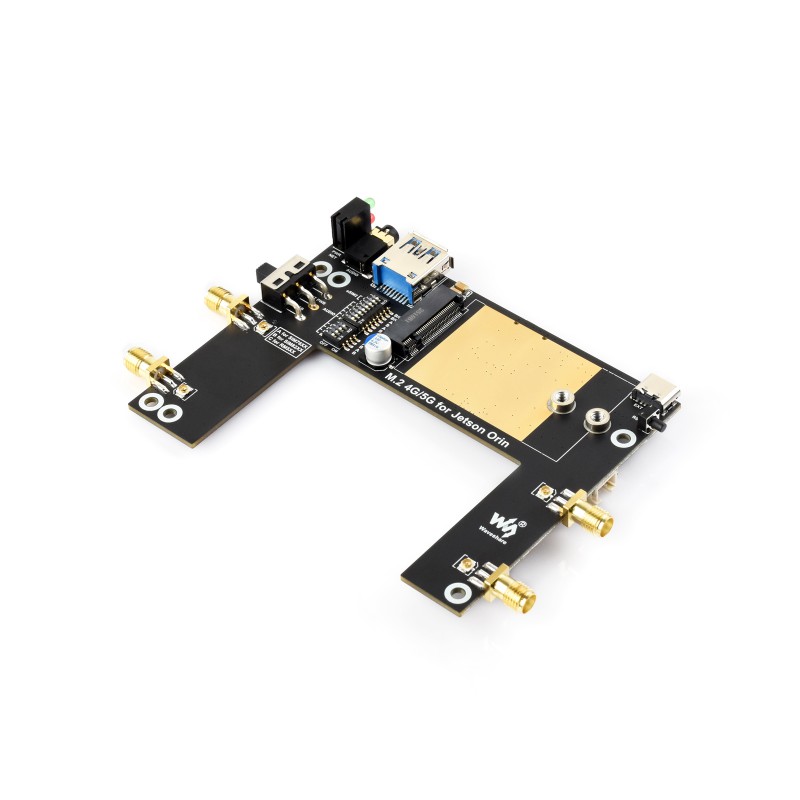

5G/4G/3G Module Designed For Jetson Orin, Supports 5G NSA And SA Networking, GNSS Positioning, Comes with SIM8260G-M2 5G module, applicable to countries and regions with global coverage of the 5G Sub-6G bands
Features:
- Based on Qualcomm platform, supports 5G NSA and SA networking, with multi-mode multi-band support
- Multi-constellation dual-band positioning: GPS, GLONASS, Beidou, Galileo, and QZSS
- USB 3.1 port (USB 2.0 compatible) for connecting to Jetson Orin, PC, or Raspberry Pi to enable high speed 5G network
- Onboard standard M.2 B KEY slot and module selection switches, compatible with SIM8260X-M2 / SIM8262X-M2 / RM5XX / SIM7600 modules
- 4 x SMA antenna connectors, easy to install the antennas
- Reserved UART solder pads for convenient data transmission and other functions with certain modules
- Onboard 1-ch Nano SIM card slot and 1-ch eSIM slot in QFN-8 (5 × 6) package, supporting dual SIM single standby, switchable via AT command
- Onboard audio interface and audio decoding chip, enabling voice operations such as making calls by using SIMXXX series modules
- Onboard power switch, reset button, and LED indicator for convenient power control and status monitoring
- Onboard high-efficiency power supply circuit, up to 3A output current
-
Multi system support: Supports Windows 7 / 8 / 10 / 11, Ubuntu, Raspberry Pi OS, and OpenWRT systems. Just plug it into USB port, go through some driver installation and simple configuration, the high speed 5G network connection would be ready to use
-
Multi host support: Enabling 5G high speed connection for Jetson Orin / PC / Raspberry Pi
-
Cloud Communication:
-
Supported communication protocols: TCP/IP/IPv4/IPv6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/MQTTS/DNS/SSL3.0
-
-
Phone Call & SMS support: Allows using AT commands to make phone call via Audio jack or send SMS
Specifications for SIM8260G-M2
- 5G standard: 3GPP R16
- Chip Solution: Qualcomm Snapdragon X62
- Applicable Regions: Global
- Dimensions (MM): 30.0 × 52.0 × 2.3
- Frequency Band:
- 5G SA: n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79
- 5G N SA: n1, n2, n3, n5, n7, n8, n12, n14, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n75, n77, n78, n79
- LTE-FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71
- LTE-TDD: B34, B38, B39, B40, B41, B42, B43, B46, B48
- WCDMA: B1, B2, B4, B5, B8, B19
- GNSS: GPS, GLONASS, Beidou, Galileo, and QZSS
- Data Rate:
- Sub-6G SA: 2.5Gbps (DL)/0.9Gbps (UL)
- Sub-6G NSA: 3.47Gbps (DL)/460Mbps (UL)
- LTE: 1.6Gbps (DL)/200Mbps (UL)
- HSPA+: 42Mbps (DL)/5.76 Mbps (UL)
Note: The above are the supported modules after testing; If you need to use with other 5G modules, please confirm with the module manufacturer for interface and mode compatibility.

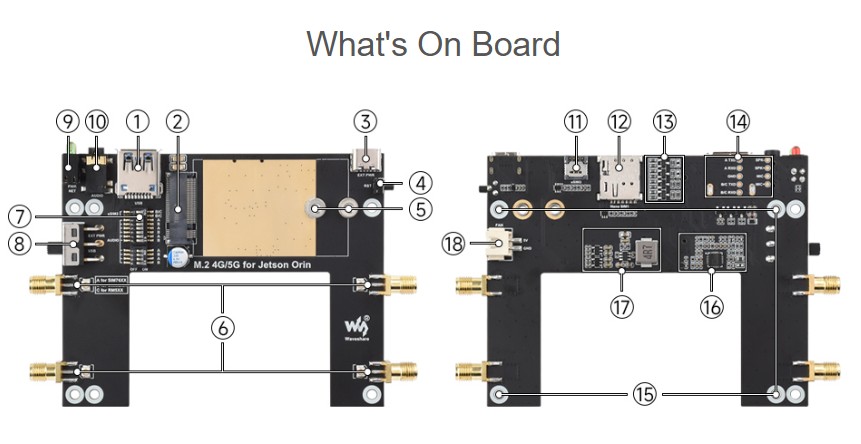

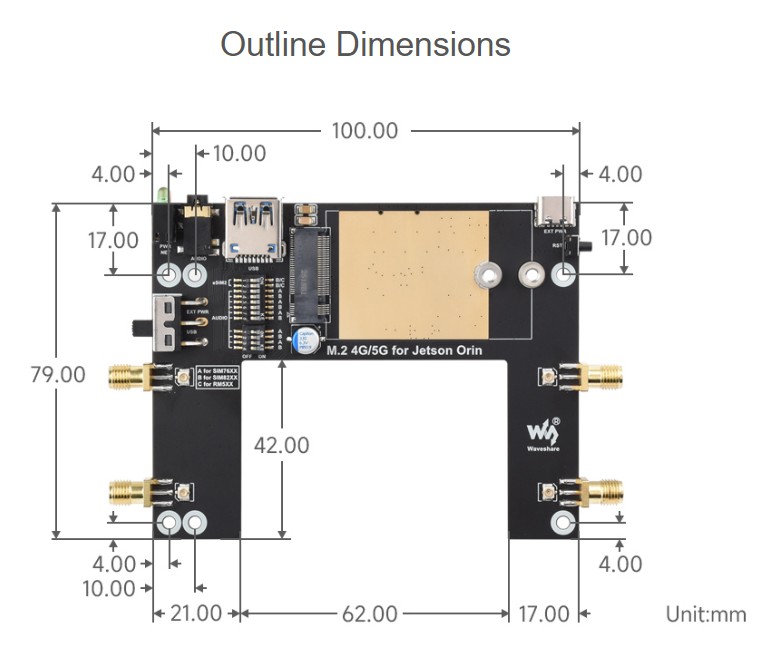

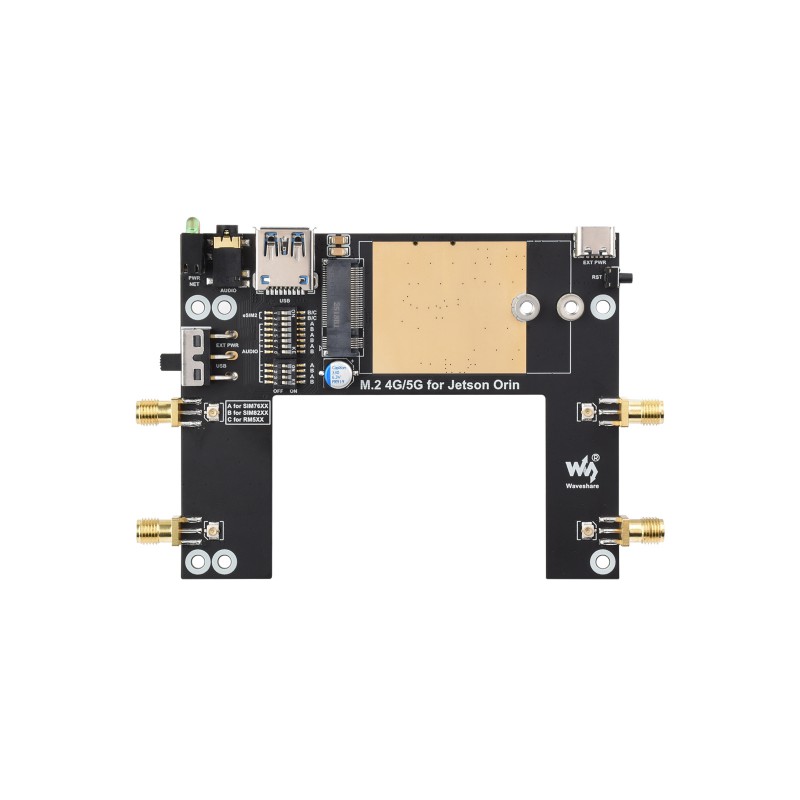

What's On Board?
- USB3.1 port
- USB 2.0 compatible, for connecting with different hosts
- USB 2.0 compatible, for connecting with different hosts
- M.2 slot
- compatible with most SIMCom and QUECTEL 4G / 5G modules in M.2 form factor
- compatible with most SIMCom and QUECTEL 4G / 5G modules in M.2 form factor
- USB Type-C port
- 5V 3A power input, stable and flexible power supply
- 5V 3A power input, stable and flexible power supply
- Reset button
- Module fixing holes
- supports 3042 / 3052 package modules
- supports 3042 / 3052 package modules
- Antenna connectors
- Supports quad antennas
- Supports quad antennas
- Module settings switch
- Switch A to ON for SIM7600X / A7906X / SIM7906X / SIM7912X series 4G M.2 modules;
- Switch B to ON for SIM8202X / SIM8200EA / SIM8262X / SIM8260X series 5G M.2 modules;
- Switch C to ON for RM520N-GL / RM530X / EM06X series 5G / LTE-A M.2 modules
- Switch A to ON for SIM7600X / A7906X / SIM7906X / SIM7912X series 4G M.2 modules;
- Power supply switch
- Switch the power supply mode:
- When set to USB, the module is powered via the "1. USB3.1 port"
- When set to EXT PWR, the module is powered by the external power supply via the "3. USB Type-C port"
- Switch the power supply mode:
- Indicator
- Easy to monitor the operating status of module
- Easy to monitor the operating status of module
- Audio jack
- SIM82XX / SIM7600X series supports audio function, but RM5XX series temporarily does not support this function
- SIM82XX / SIM7600X series supports audio function, but RM5XX series temporarily does not support this function
- eSIM card slot
- QFN-8 (5 × 6) package, configurable via AT commands
- QFN-8 (5 × 6) package, configurable via AT commands
- Nano SIM card slot
- onboard dual SIM card slots, dual card single standby
- onboard dual SIM card slots, dual card single standby

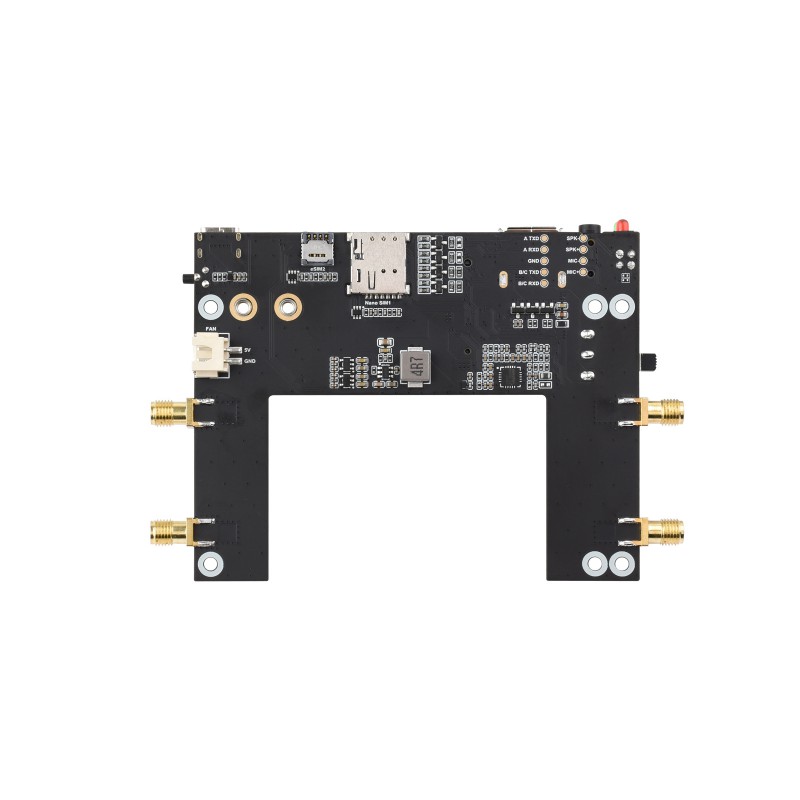

- Level conversion circuit
- Reserved UART and audio interface pads
- Mounting holes
- for installing this module onto the Jetson Orin board via screws
- for installing this module onto the Jetson Orin board via screws
- Audio drive circuit
- Power supply circuit
- Fan header
- for 5V cooling fan
