WAVE-24359 Waveshare Jetson Orin Nano / NX Super Dual Ethernet Base Board

Manufacturer: Waveshare
Price:
US$136.27
WAVE-24359
Delivery within 2-3 weeks
+ −
Add to wish list

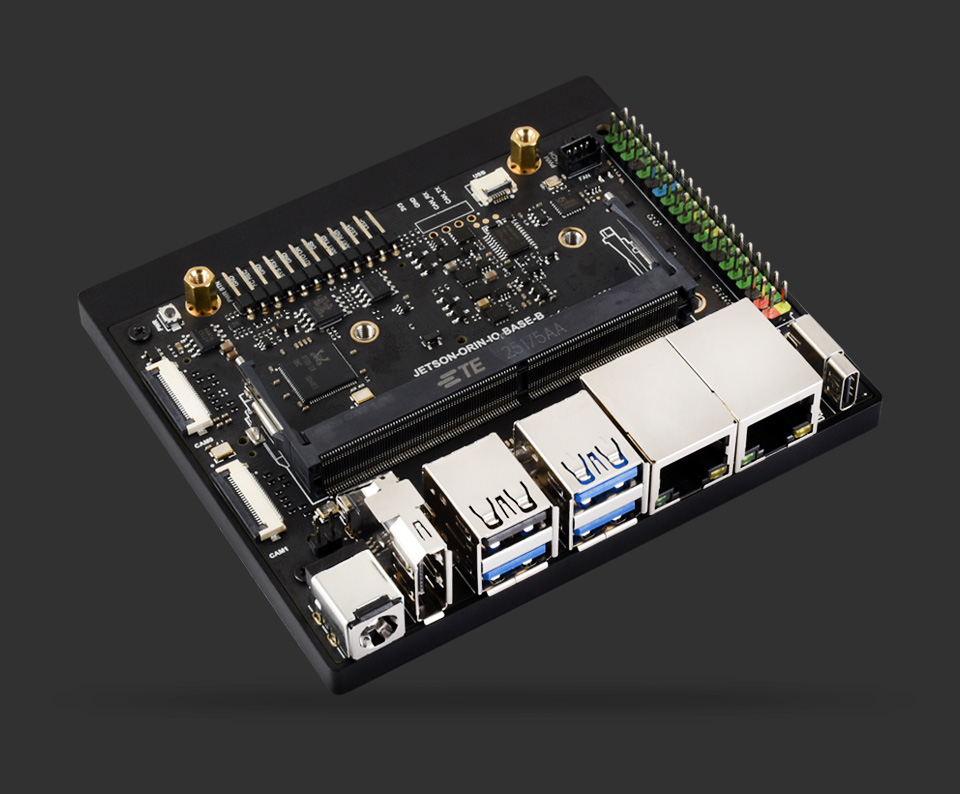

Waveshare Jetson Orin Nano / NX Super Dual Ethernet Base Board – Compatible with NVIDIA Jetson Orin Nano & Orin NX Modules

The Waveshare Super Dual Ethernet Base Board is designed for developers working with NVIDIA Jetson Orin Nano and Jetson Orin NX modules. It provides a robust foundation for AI development, robotics, and edge computing applications.

  • Compatibility: Supports Jetson Orin Nano and Jetson Orin NX modules
  • Networking: Equipped with dual Gigabit Ethernet ports for high-speed data transfer
  • Expansion: Multiple interfaces for sensors, cameras, and peripherals
  • Form Factor: Designed to match NVIDIA’s Jetson Orin Nano Super AI Development Kit
  • Applications: Ideal for robotics, AI vision, machine learning, and intelligent edge systems
JETSON-ORIN-IO-BASE-B

Waveshare Jetson Orin Nano / NX Base Board

Based on the Jetson Orin Nano and Jetson Orin NX modules, onboard dual Ethernet ports

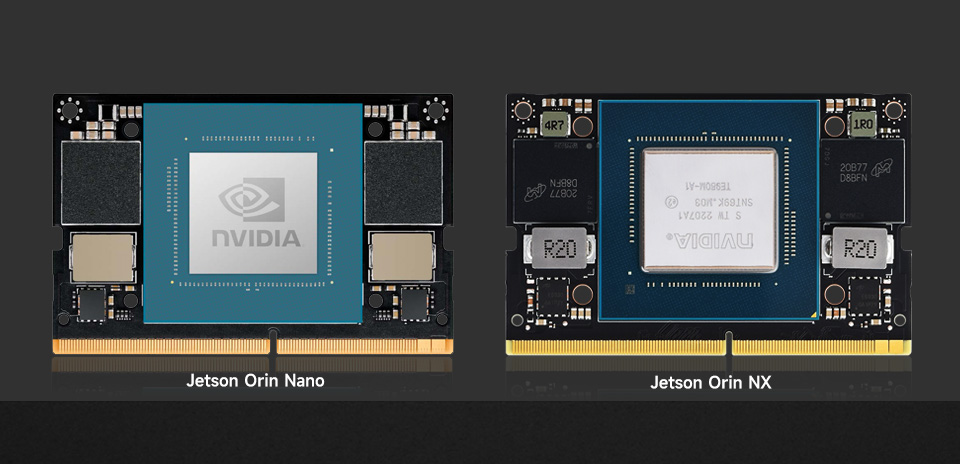

Compatible with Orin Modules

Supports connecting to N-VIDIA Jetson Orin Nano Module and Jetson Orin NX Module

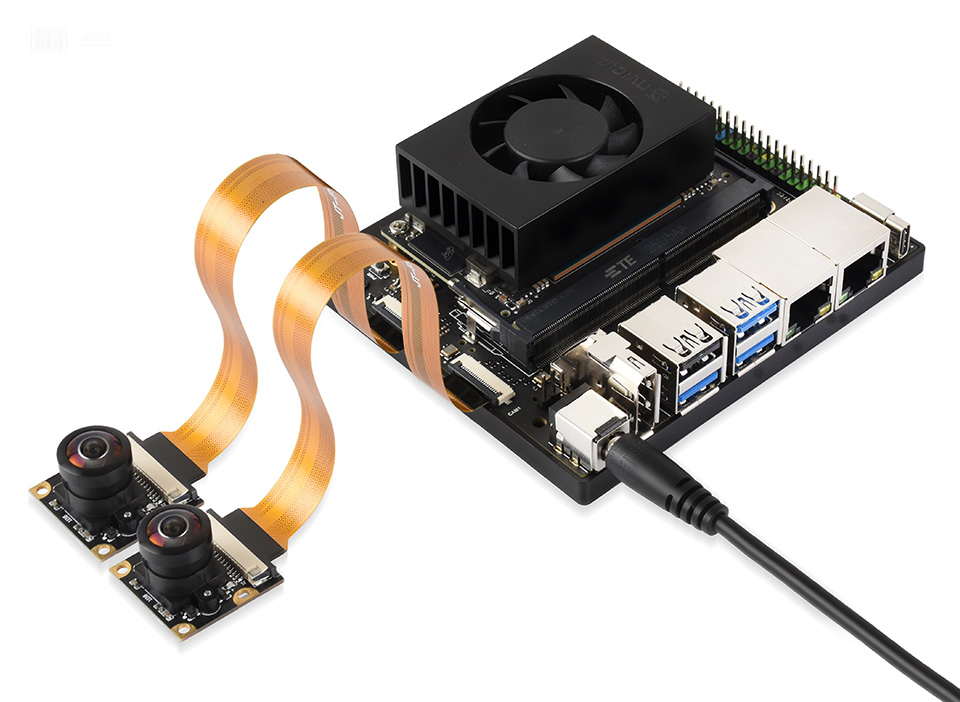

Connect to CSI camera

Expands 2 × CSI camera interfaces for AI Intelligence applications such as face recognition road sign detection, Lane Line detection, and license plate recognition

* Note: the adapter cable is required for connecting the camera.

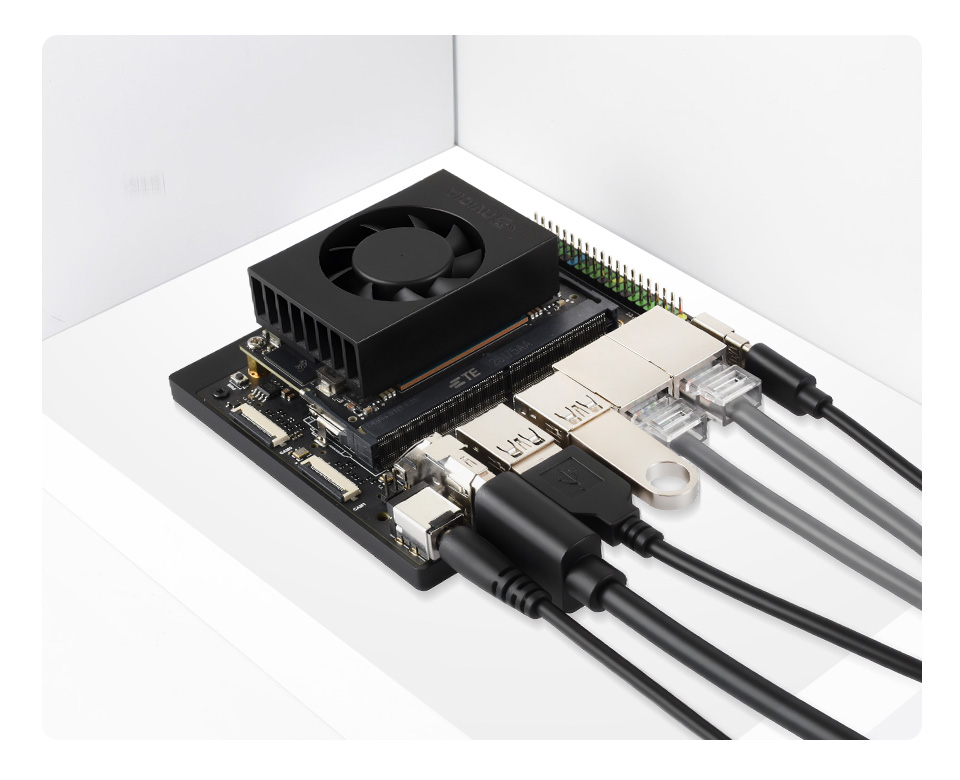

7 × USB ports

4 × Type-A + 1 × Type-C + 2 × USB2.0 FFC connectors

Supports connecting to more peripherals, USB 3.2 Gen 2 ports for data transmission up to 10Gbps, Type-C port can be used for system burning, and Onboard 2 × USB 2.0 FFC connectors

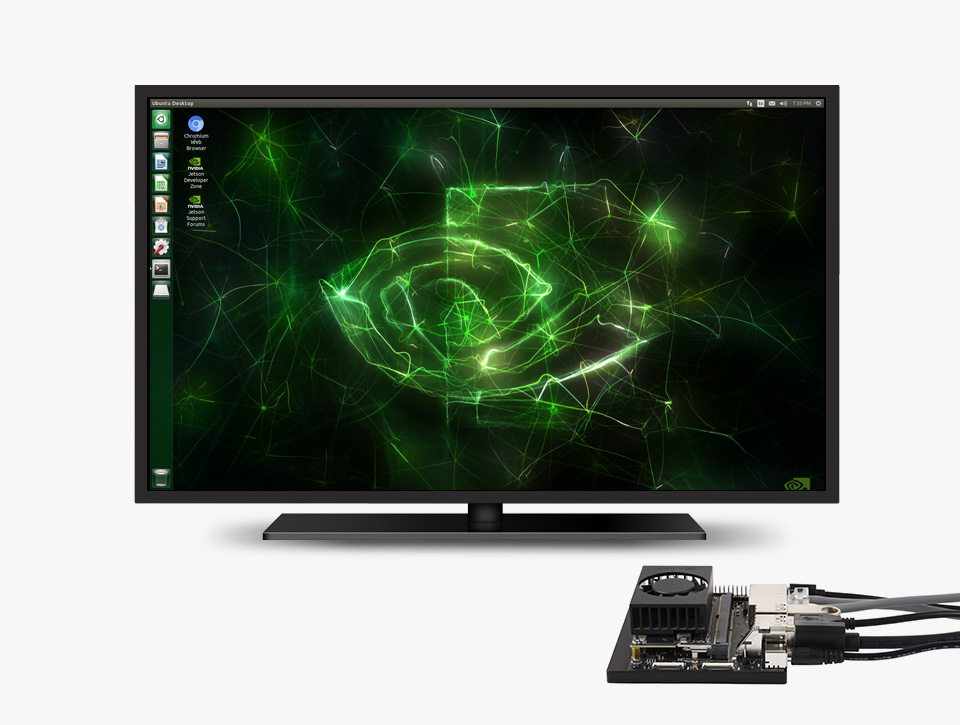

4K High Definition output

Supports DP High-definition Port

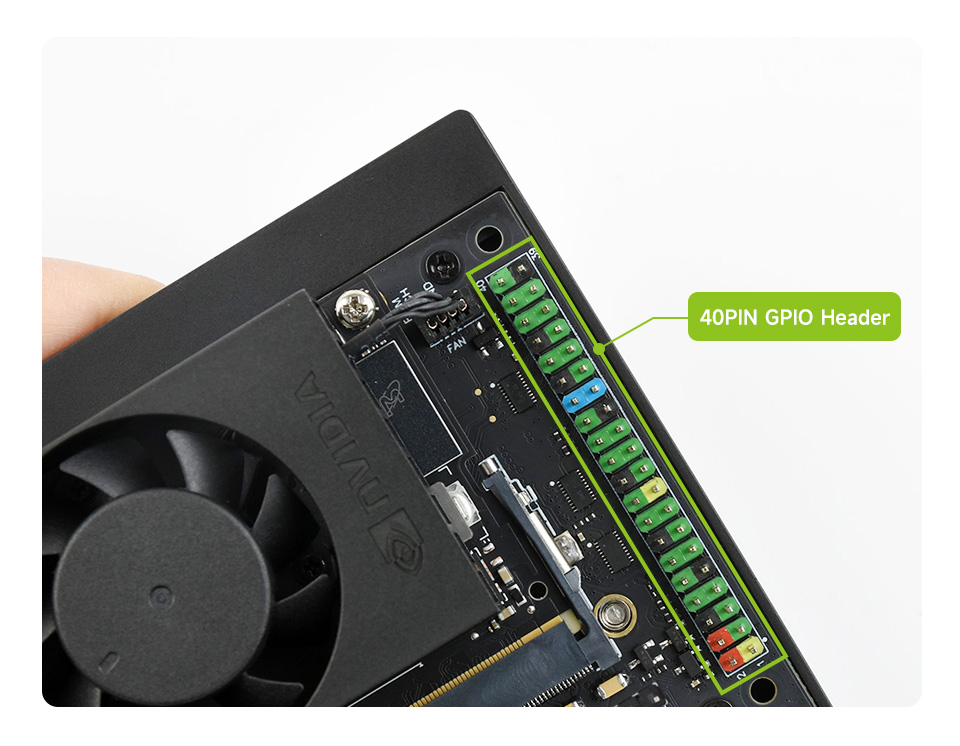

Color-coded 40PIN GPIO header

Color-Coded header pins to differentiate IO resources such as I2C, SPI, I2S, UART, GPIO, etc.

Flexible Storage And Wireless Expansion

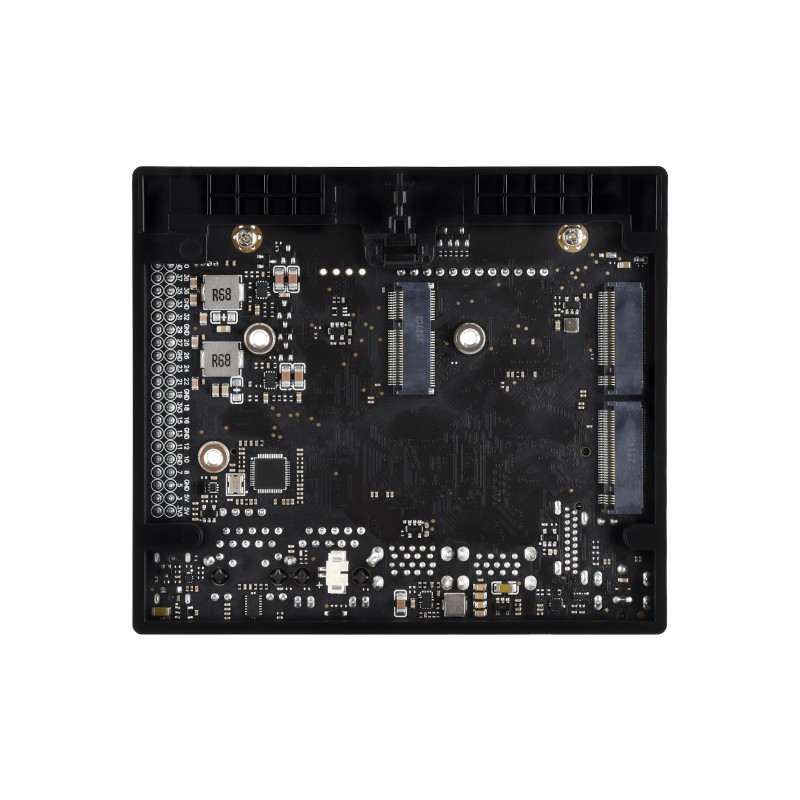

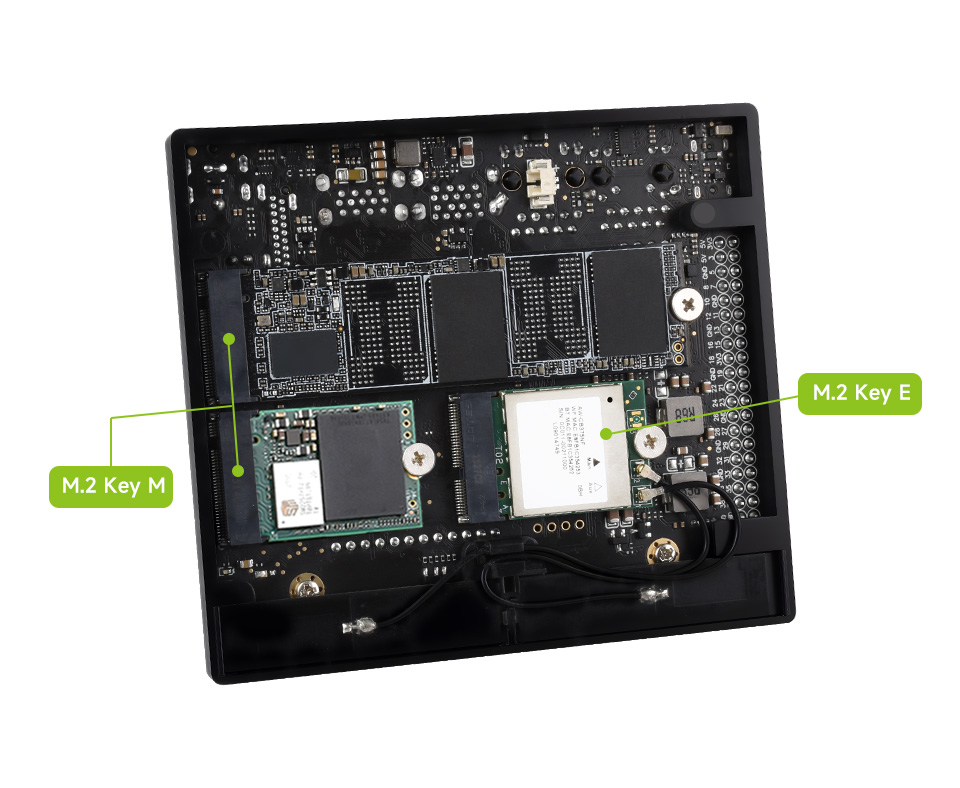

Onboard 2 × M.2 Key M ports for easy connecting Solid State Drives and 1 × M.2 Key E interface for connecting wireless NIC, which can reduce cable connection

* for reference only, the Solid State Drive and wireless network card are NOT included.

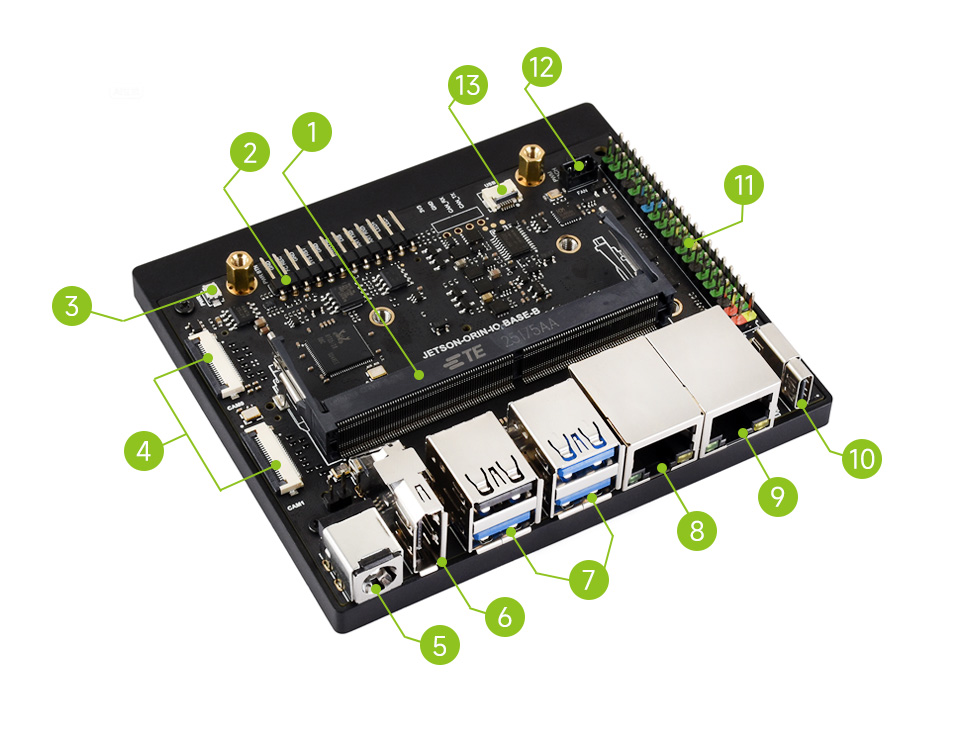

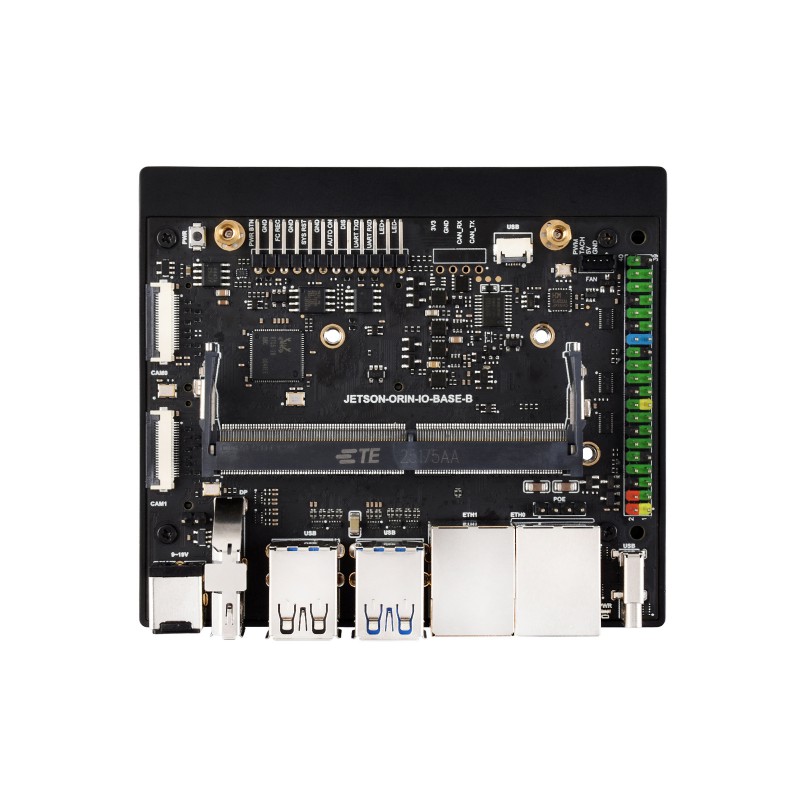

What's On Board

  1. 260 Pin DO-DIMM socket
    1. for connecting Jetson Orin Nano/NX module
  2. 12 Pin header
    1. Adapting pins for power supply button, reset button, debug serial port, force recovery setting, auto power-up enable and power indicator functions
  3. Power button
  4. 2 × 22 pin CSI camera interfaces
  5. DC Power jack
    1. Supports wide range 9V ~ 19V power supply, compatible with 5.5 × 2.5mm male plug
  6. DisplayPort port
    1. Supports 4K display
  7. 4 × USB Type-A ports
    1. 3 × USB 3.2 Gen2 ports, up to 10Gbps data transmission,
    2. 1 × USB 2.0 port, supports 480Mbps data transmission
  8. RJ45 2.5G Ethernet port
  9. RJ45 Gigabit Ethernet por
  10. USB Type-C port
    1. For system burning and data communication
  11. 40 PIN header
  12. 4 PIN PWM fan header
  13. 2 × USB 2.0 connectors
    1. FFC 0.5mm 6PIN connectors

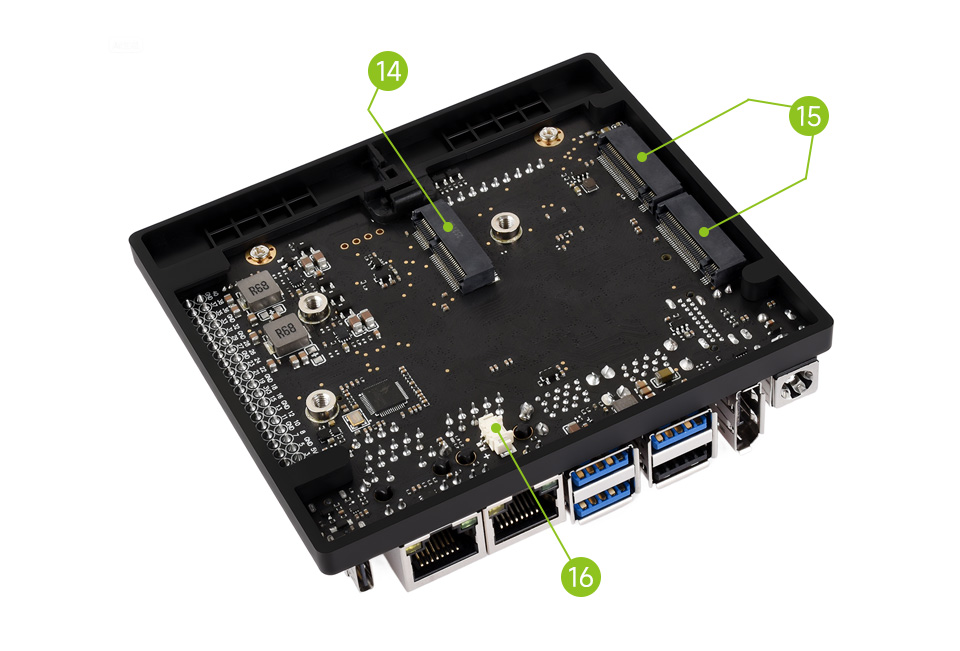

  1. M.2 Key E
    1. For connecting wireless NIC
  2. 2 x M.2 Key M
    1. For connecting NVME solid state drives
  3. RTC backup battery header
    1. PH1.25 2P

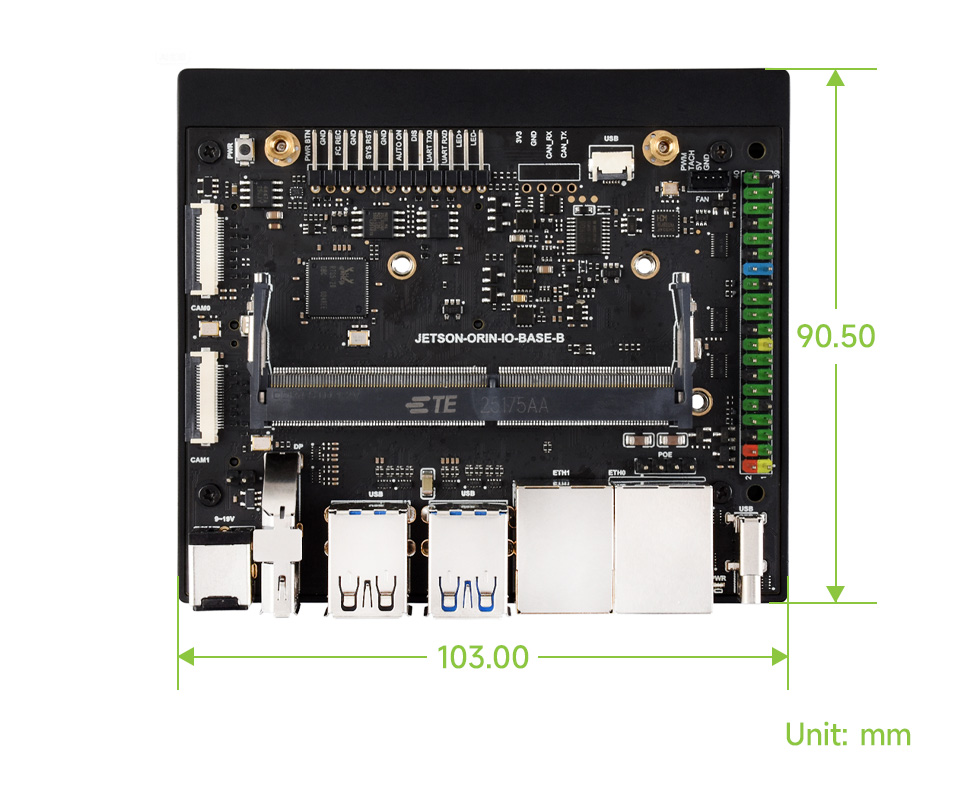

Outline dimensions





Resources & Services

Wiki: www.waveshare.com/wiki/JETSON-ORIN-IO-BASE-B


Package Content:

  • Weight: 0.093kg
    • JETSON-ORIN-IO-BASE-B x1
    • Screws pack x1
