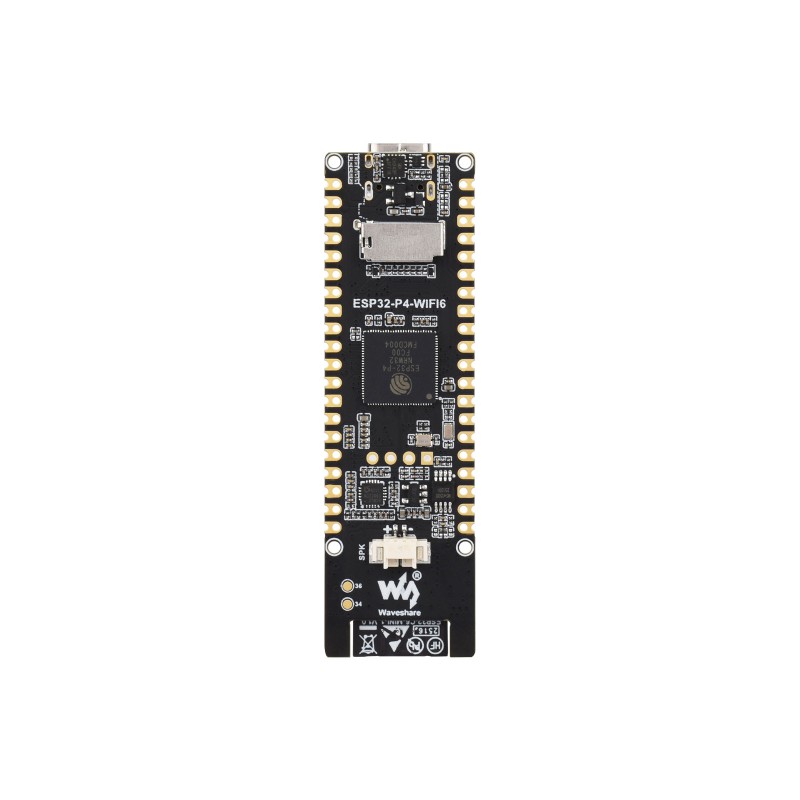

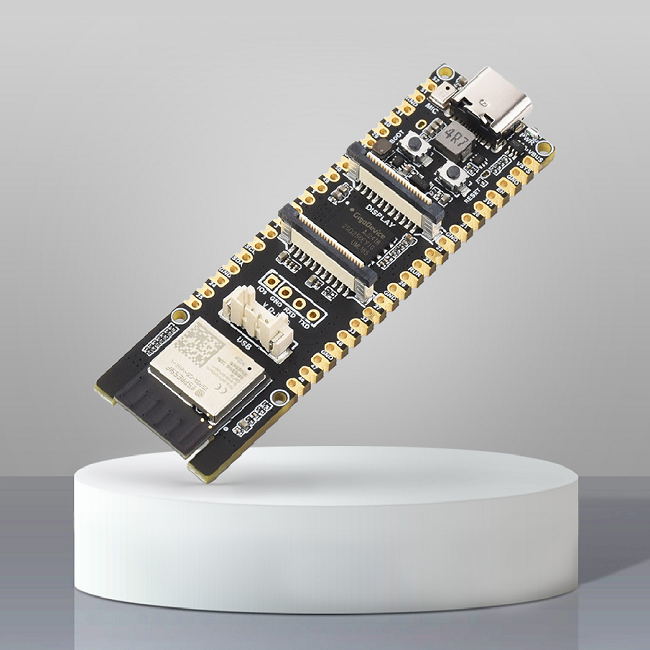

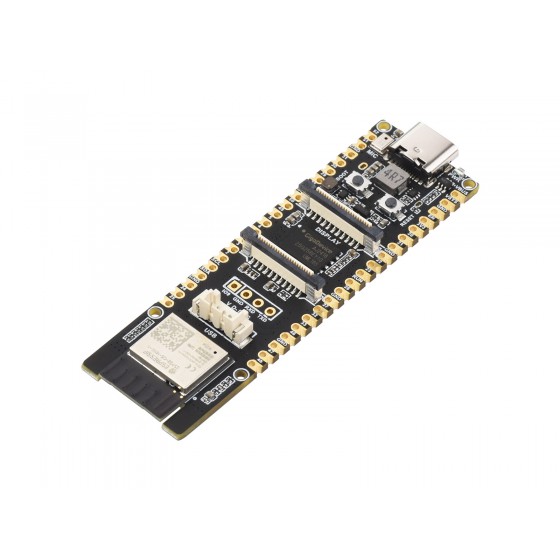

WAVE-32020 ESP32-P4-WIFI6, ESP32-P4 and ESP32-C6 Development board only, without headers

The Waveshare 31647 is the ESP32-P4-WIFI6-M model which is the ESP32-P4-WIFI6 High-Performance Development Board, based on ESP32-P4 and ESP32-C6, Supports Wi-Fi 6 And Bluetooth 5 / BLE, Board only without headers soldered.

Part N: ESP32-P4-WIFI6-M   Board only, without headers soldered.

ESP32-P4-WIFI6 Development Board
High-performance Development Board Based on ESP32-P4 and ESP32-C6
Rich Human-machine Interfaces

Development Board Introduction

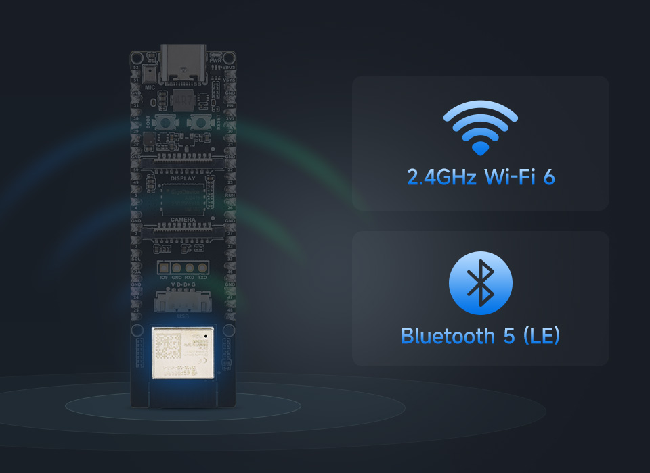

This product is a multimedia development board based on ESP32-P4 with integrated ESP32-C6, supports Wi-Fi 6 and Bluetooth 5 wireless connection. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, and onboard 40PIN GPIO header which is compatible with some Raspberry Pi Pico HATs, enabling a wider range of application adaptability.

The ESP32-P4 adopts a 400MHz dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI/DSI, H.264 encoder, and other peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development. It also integrates the Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-WIFI6 meets the requirements of Human-Machine interaction, efficient edge computing, and IO expansion.

Key features include:

• High-performance MCU with RISC-V 32-bit dual-core and single-core processors
• 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
• Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder

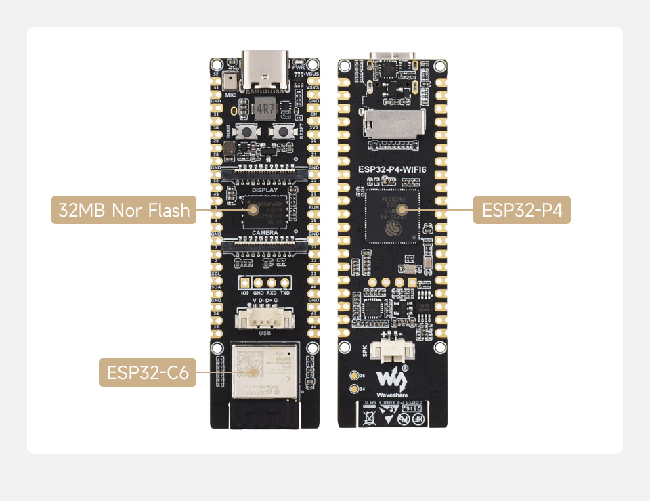

• 32MB PSRAM in the chip's package, with onboard 32MB Nor Flash

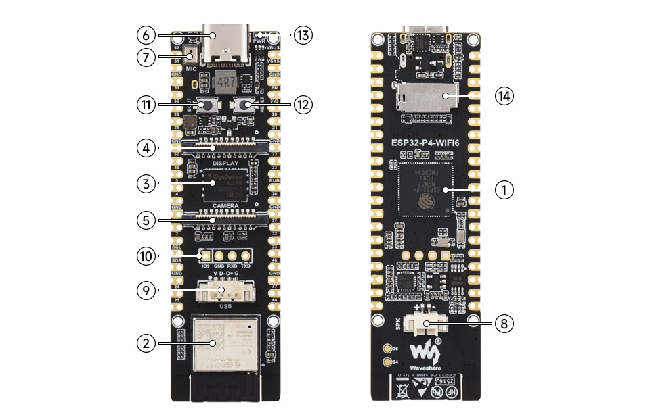

• Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, SDIO 3.0 TF card slot, microphone, and speaker header, etc.

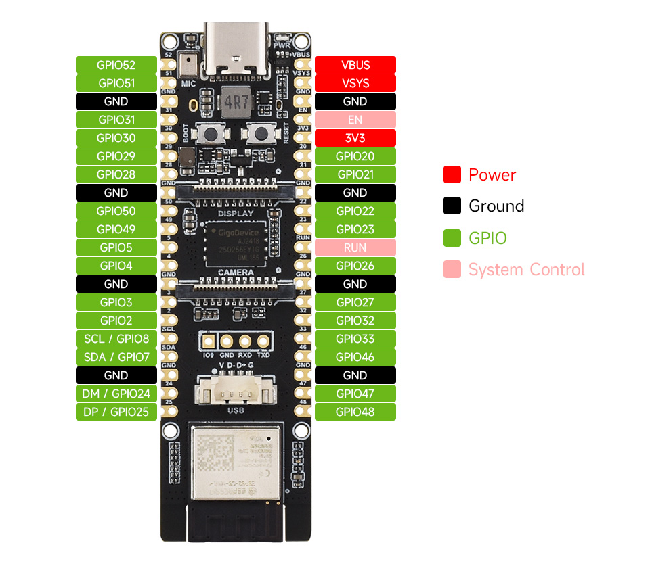

• Adapting 2*20 GPIO headers with 27 x remaining programmable GPIOs
• Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation.

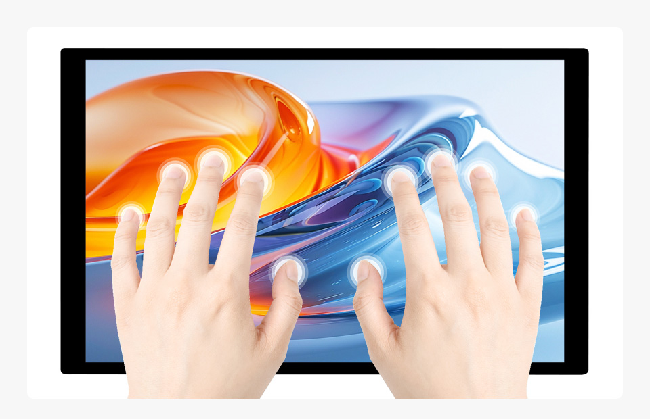

DSI Capacitive Touch Display
Optional For 10.1inch DSI Capacitive Touch Display, IPS Screen, Optical Bonding Toughened Glass Panel,
With 178° Wide Viewing Angle. Supports 10-Point Touch, provides a clear image and an excellent visual experience
