Arduino Pro Mini ATmega328P 5v Micro controller at 16Mhz

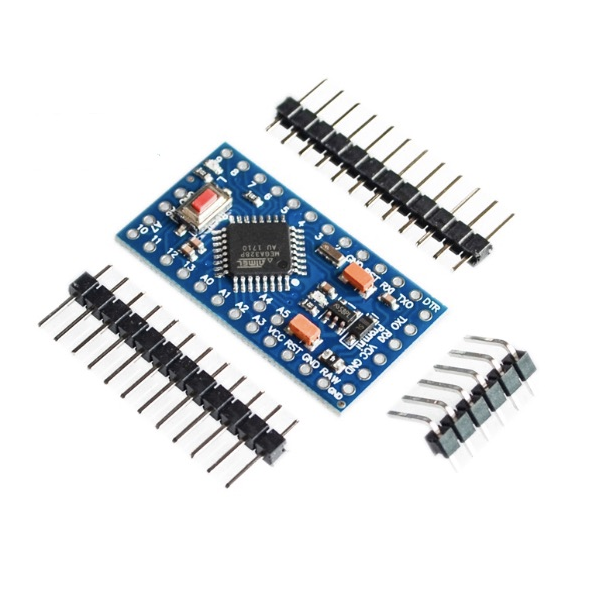

The 5V Arduino Pro Mini Micro controller is based on the ATmega328P chipset and runs at 16 MHz. It comes with two 12 pin headers and one 6 pin
angled connector for header based connections, some soldering is required. Use this 3.3cm by 1.8cm board, which weighs less than 2 grams can be used for any
Arduino application projects you may have in mind.
Preloaded with the boot loader translates to a quick plug and play system, only requires a FTDI Cable at logic level of 5V for communication to USB port.
Smaller, loaded with more features and more affordable than the Arduino Uno. Use this board for permanent applications or temporary usage.
Features:
ATmega328P-AU Running at 16MHz with external resonator
USB connection off board
Supports auto-reset
Includes SMT reset button
5V regulator
Max 150mA output
Over Current Protected
Reverse Polarity protected
DC input 5v up to 12V
On board Power LED (Red) & Status LED (Blue)
Analog ports: (A0, A1, A2, A3) & (A4, A5, A6, A7 flip board to access) total of 8 pins
Digital I/Os: (2- 13) & (TX0/RXI) total of 14 pins
1 Serial Port
PWM ports: (3, 5, 6, 9, 10, 11) total of 6 pins
Compatible FTDI Connection with:
284-ADA (cut/short trace on back as indicated for this product)
DEV-09718
