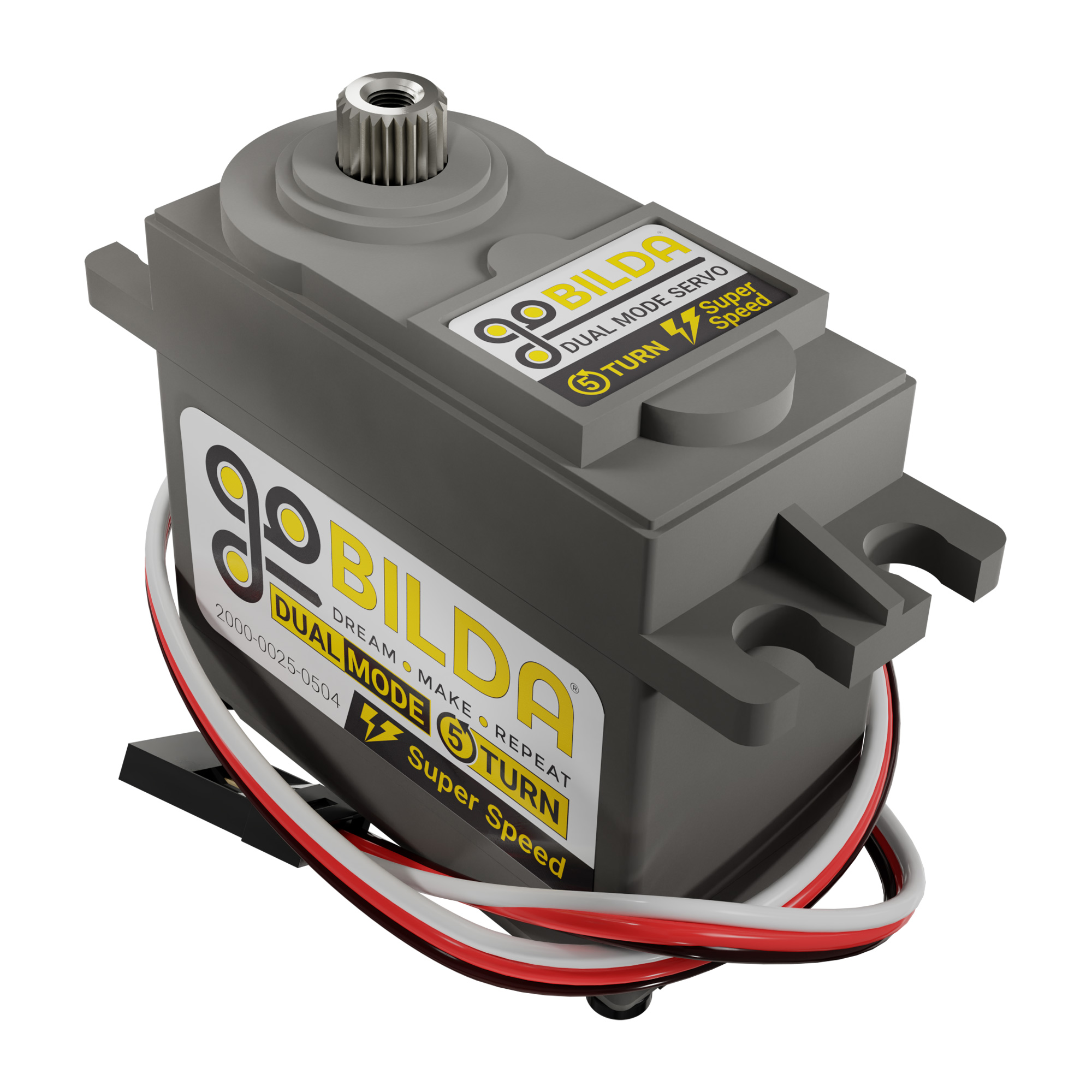

2000-0025-0504, 2000 Series 5-Turn, Dual Mode Servo (25-4, Super Speed)
Default ModeIn Default Mode the servo is able to rotate while having positioning feedback. In this mode, the PWM signal will determine the position of the servo.
Continuous Rotation ModeUsing the 3102 Series Dual Mode Servo Programmer (1-1), the servo can be toggled into continuous rotation mode. In this mode, the servo will have proportional speed control based on the PWM signal that you send with your servo controller.
How Far Will This Servo Rotate in Default Mode?With an Average Radio System:
2.25 Turns (810°)
Your average transmitter and receiver will output a relatively narrow PWM signal range.
Radio System + Travel Tuner:
5 Turns (1800°)
Adding a Servo Travel Tuner to your radio system setup will allow you to achieve wide PWM signal ranges.
Wide Signal Controllers:
5 Turns (1800°)
Servo Controllers, Arduinos, and Raspberry Pi servo hats can usually send a wide signal.
| Weight | 58g (2.04oz) |
|---|---|
| Gear Ratio | 67:1 |
| Output Shaft Style | H25T Spline |
| Voltage Range | 4.8V - 7.4V |
| No-Load Speed (4.8V) | 0.055 sec/60° (180RPM) |
| No-Load Speed (6.0V) | 0.043 sec/60° (230RPM) |
| No-Load Speed (7.4V) | 0.035 sec/60° (290RPM) |
| Stall Torque (4.8V) | 55 oz-in (4.0 kg.cm) |
| Stall Torque (6.0V) | 65 oz-in (4.7 kg.cm) |
| Stall Torque (7.4V) | 75 oz-in (5.4 kg.cm) |
| No-Load Current (4.8V) | 190mA |
| No-Load Current (6.0V) | 200mA |
| No-Load Current (7.4V) | 230mA |
| Stall Current (4.8V) | 2,000mA |
| Stall Current (6.0V) | 2,500mA |
| Stall Current (7.4V) | 3,000mA |
| Max PWM Range | 500–2500μsec |
| Max PWM Range (Continuous) | 1000–2000μsec |
| Travel per μsec | 0.90°/μsec |
| Max Rotation (Default Mode) | 5 Turns (1800°) |
| Pulse Amplitude | 3–5V |
| Deadband Width | 4μsec |
| Motor Type | Brushed DC |
| Feedback Style | 5KΩ Potentiometer |
| Output Shaft Support | Dual Ball Bearing |
| Gear Material | Steel |
| Wire Length | 11.81" (300mm) |
| Wire Gauge | 22AWG |
| Connector Type | 3-Pos TJC8 Servo Connector [MH-FC] |
| Servo Size | Standard |
| Direction with Increasing PWM Signal | Clockwise |
