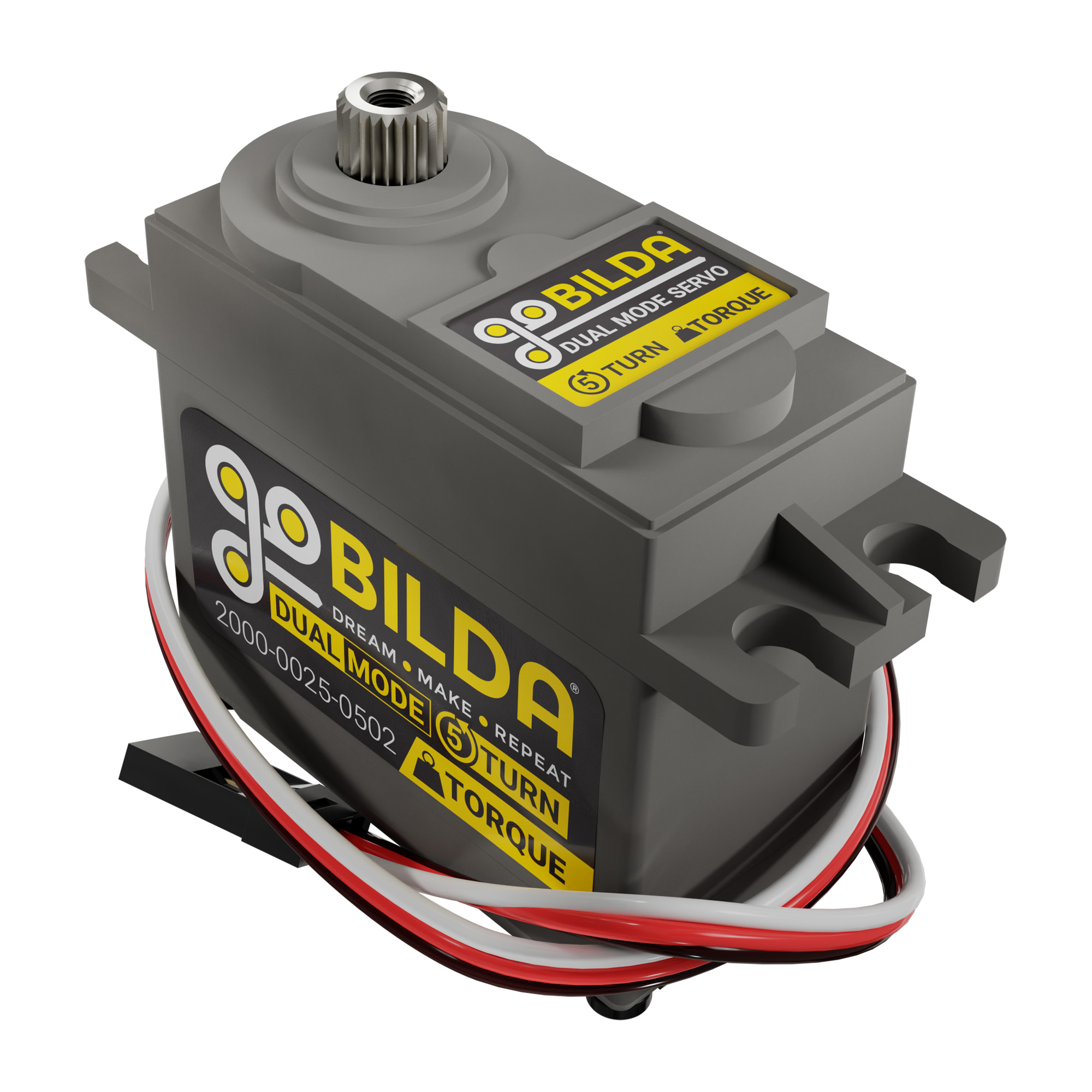

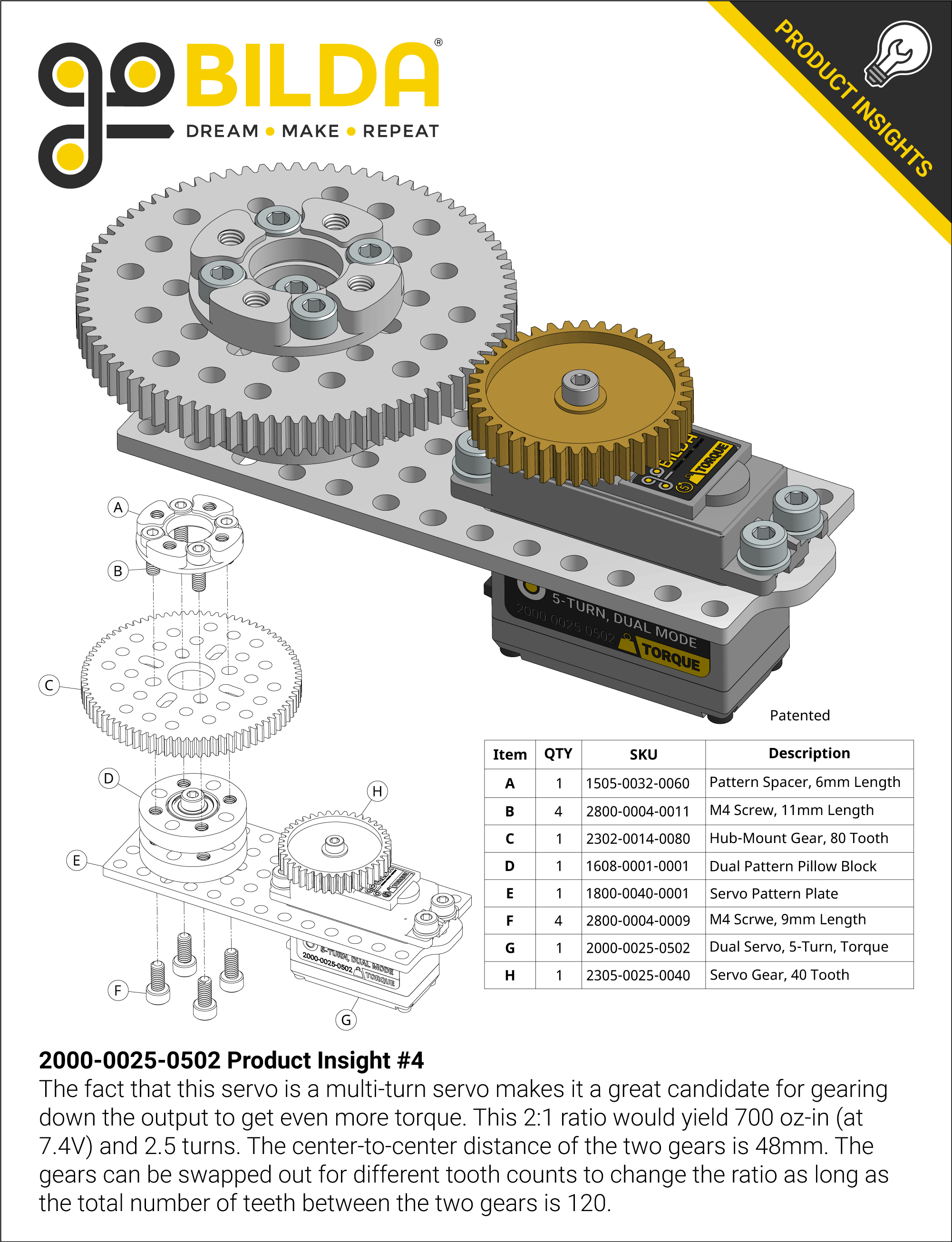

2000-0025-0502, 2000 Series 5-Turn, Dual Mode Servo (25-2, Torque)
Default Mode
In the default mode, the servo is able to rotate while providing positioning feedback. The PWM signal determines the position of the servo.
Continuous Mode
Using the 3102 Series Dual Mode Servo Programmer (1-1), the servo can be toggled into continuous rotation mode. In this mode, the servo has proportional speed control based on the PWM signal you send with your servo controller.
How Far Will This Servo Rotate in Default Mode?
With an Average Radio System:
2.25 Turns (810°)
Your average transmitter and receiver will output a relatively narrow PWM signal range.
Radio System + Travel Tuner:
5 Turns (1800°)
Adding a Servo Travel Tuner to your radio system setup will allow you to achieve wide PWM signal ranges.
Wide Signal Controllers:
5 Turns (1800°)
Controllers such as the Servo Commander, Arduinos, and Raspberry Pi servo hats can usually send a wide signal.
Specs
| Weight | 2.26oz (64g) |
|---|---|
| Gear Ratio | 300:1 |
| Output Shaft Style | H25T Spline |
| Voltage Range | 4.8V - 7.4V |
| No-Load Speed (4.8V) | 0.25 sec/60° (40RPM) |
| No-Load Speed (6.0V) | 0.20 sec/60° (50RPM) |
| No-Load Speed (7.4V) | 0.17 sec/60° (60RPM) |
| Stall Torque (4.8V) | 240 oz-in (17.2 kg.cm) |
| Stall Torque (6.0V) | 300 oz-in (21.6 kg.cm) |
| Stall Torque (7.4V) | 350 oz-in (25.2 kg.cm) |
| No-Load Current (4.8V) | 150mA |
| No-Load Current (6.0V) | 160mA |
| No-Load Current (7.4V) | 200mA |
| Stall Current (4.8V) | 2,000mA |
| Stall Current (6.0V) | 2,500mA |
| Stall Current (7.4V) | 3,000mA |
| Max PWM Range | 500–2500 μsec |
| Max PWM Range (Continuous) | 900–2100 μsec |
| Travel per μsec | 0.90°/μsec |
| Max Rotation (Default Mode) | 5 Turns (1800°) |
| Pulse Amplitude | 3–5V |
| Deadband Width | 4 μsec |
| Motor Type | Brushed DC |
| Feedback Style | 5KΩ Potentiometer |
| Output Shaft Support | Dual Ball Bearing |
| Gear Material | Steel |
| Wire Length | 11.81" (300mm) |
| Wire Gauge | 22 AWG |
| Connector Type | 3-Pos TJC8 Servo Connector [MH-FC] |
| Servo Size | Standard |
| Direction with Increasing PWM Signal | Clockwise |
