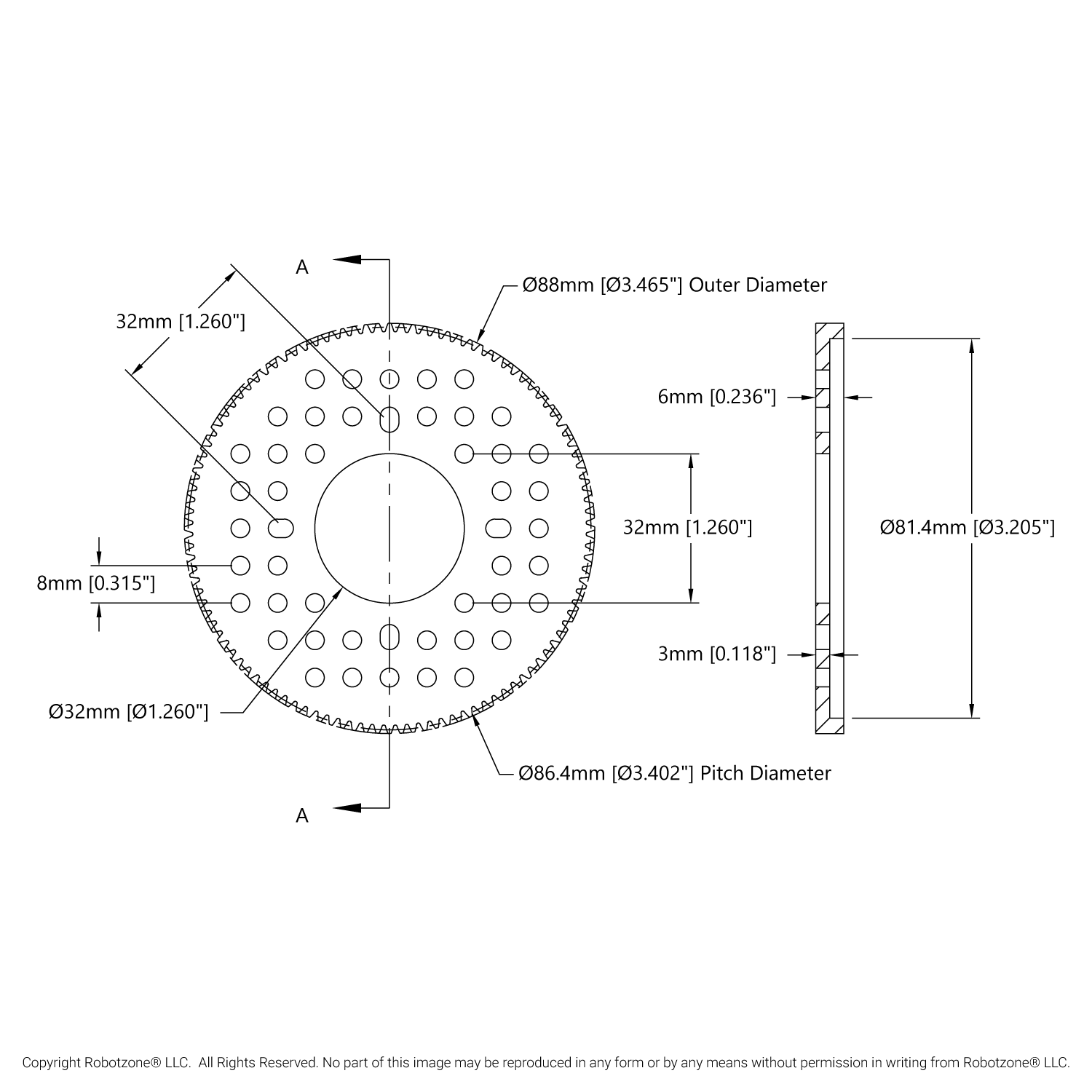

2302-0032-0108, (32mm Bore, 108 Tooth) 2302 Series Aluminum, MOD 0.8, Hub Mount Gear
The 108 tooth, MOD 0.8 gear will mate with any MOD 0.8 gear. However when building on pattern, the most common partner for this gear is a 12 tooth servo gear. When used with the 12 tooth servo gear, the combo creates a 9:1 underdrive, slowing the final speed while increasing the torque by 9x.
Specs
| Weight | 41g |
|---|---|
| Material | Aluminum |
| Finish | Clear Anodized |
| Tooth Count | 108 |
| Gear Pitch | MOD 0.8 |
| Pressure Angle | 20 Degree |
