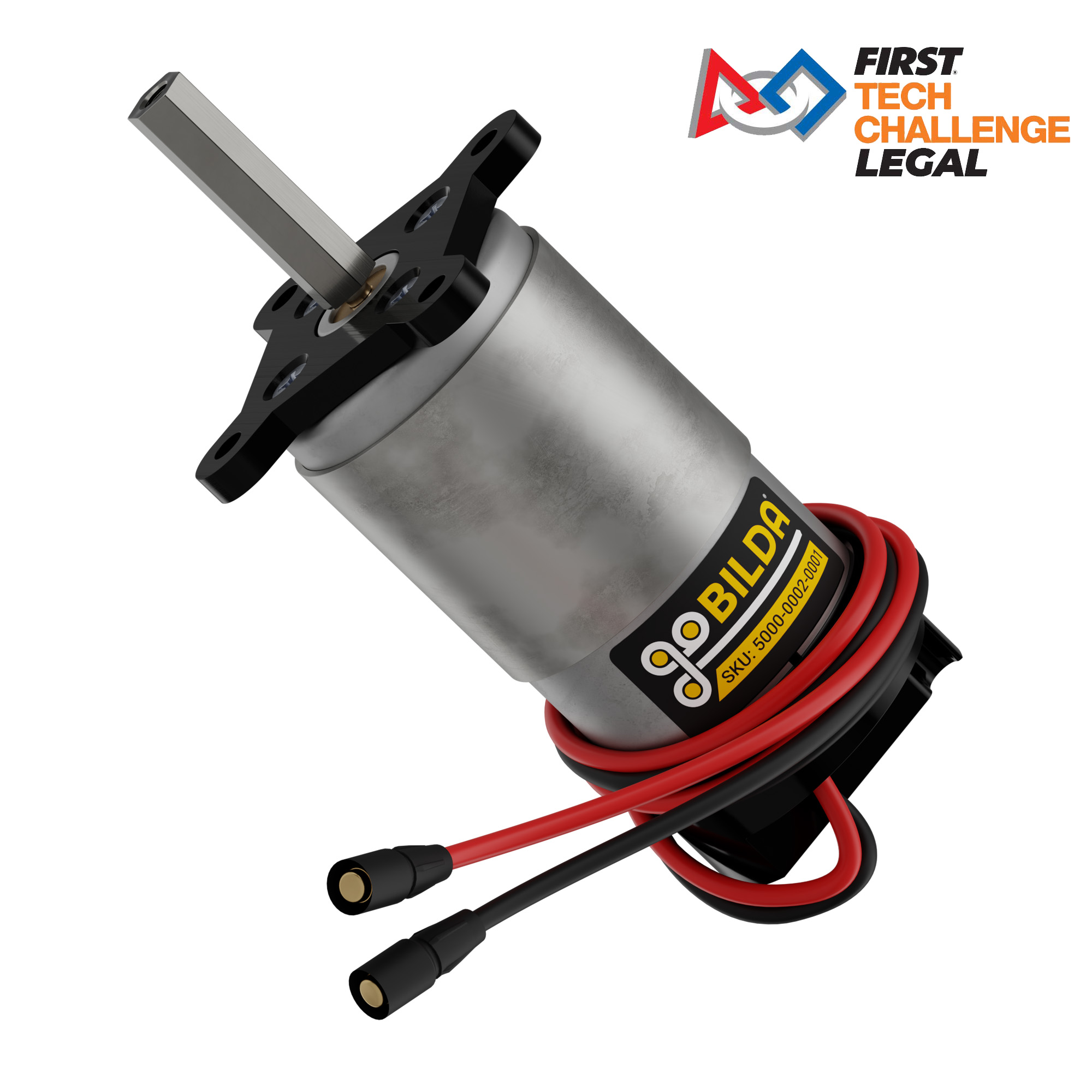

5000-0002-4008, 5000 Series 12VDC Motor with 8mm REX™ Pinion Shaft

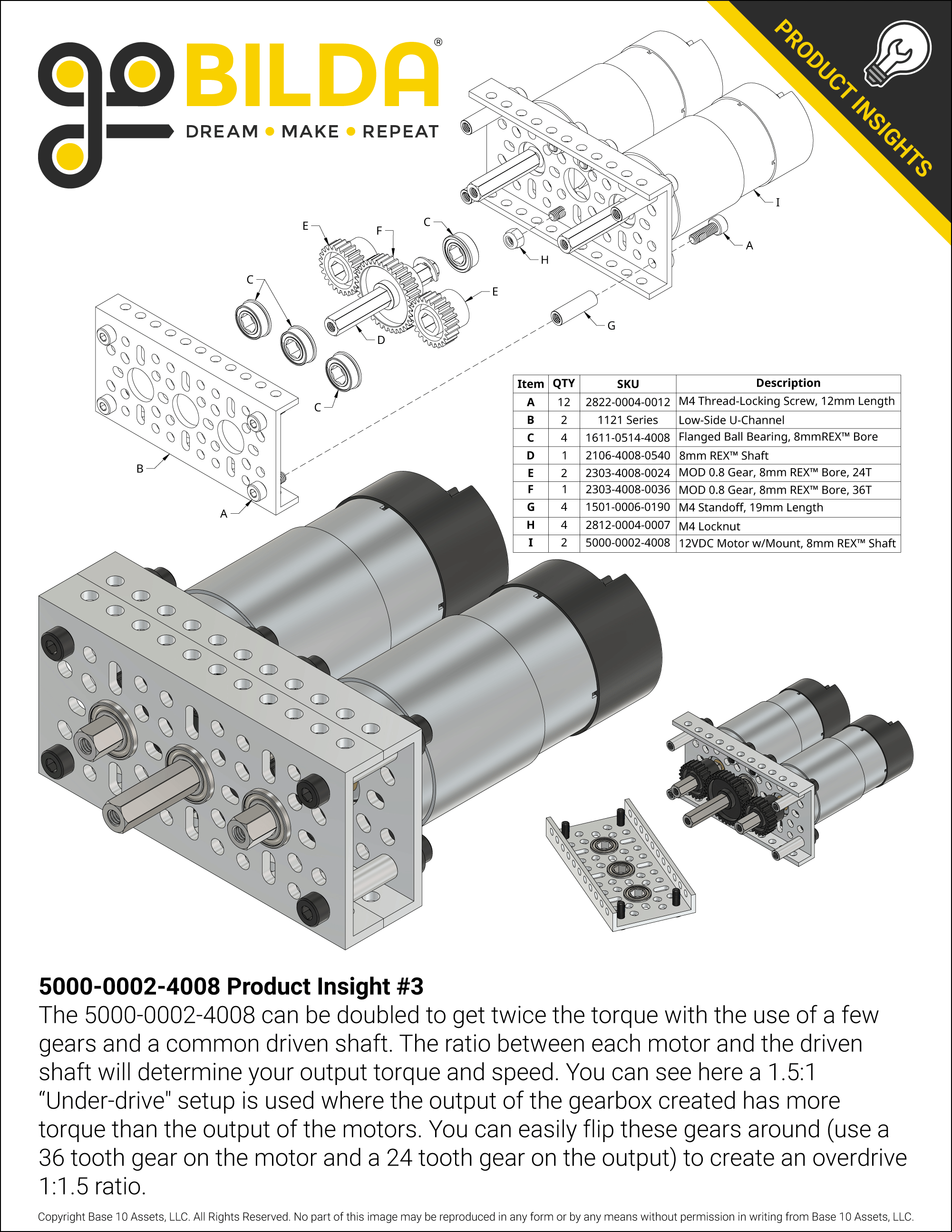

This motor drives the popular Yellow Jacket Planetary Gear Motors, but with an 8mm REX™ pinion shaft instead of a traditional pinion gear. The 8mm REX™ profile provides a positive-drive connection compatible with a wide range of goBILDA® components, including hubs, gears, sprockets, pulleys, and more.

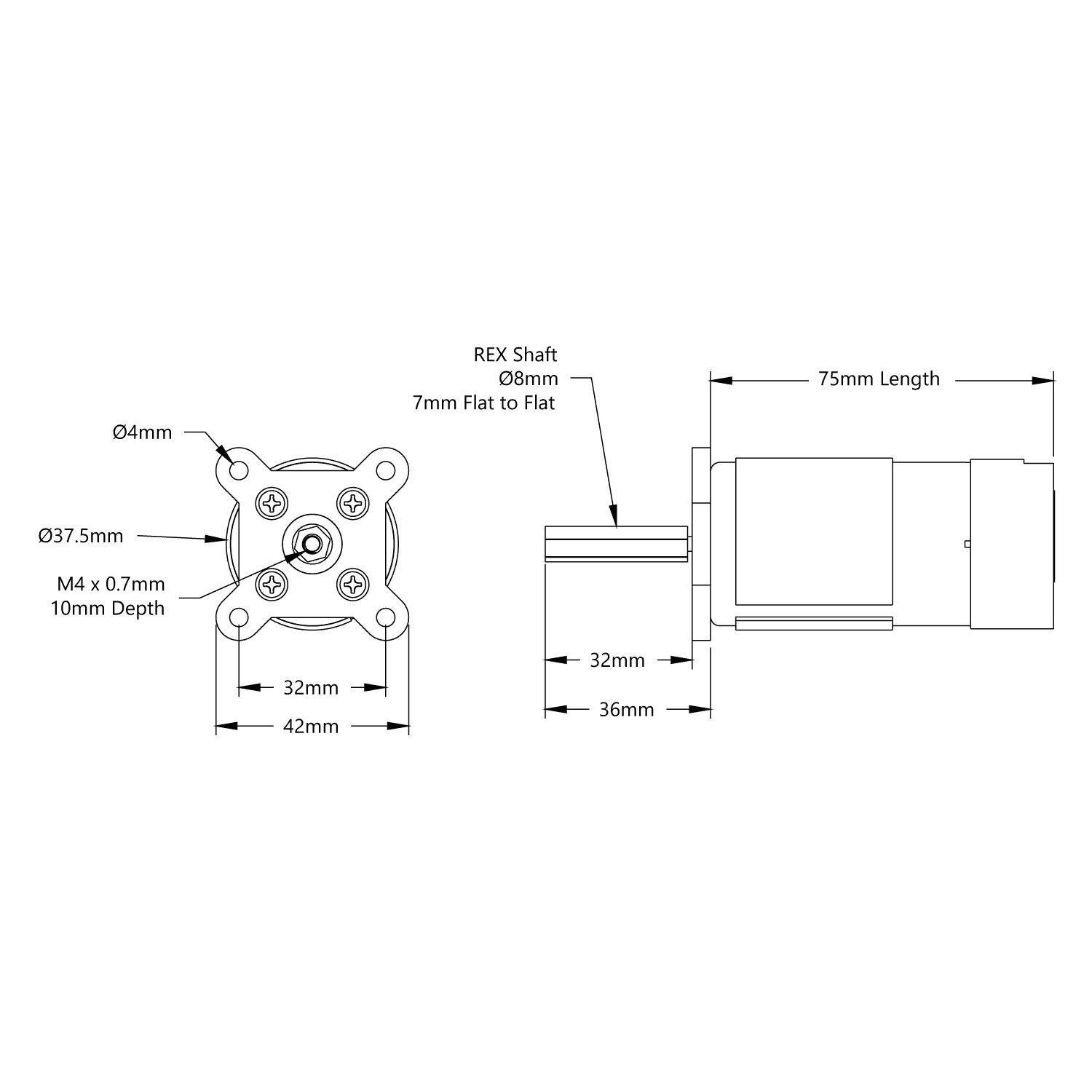

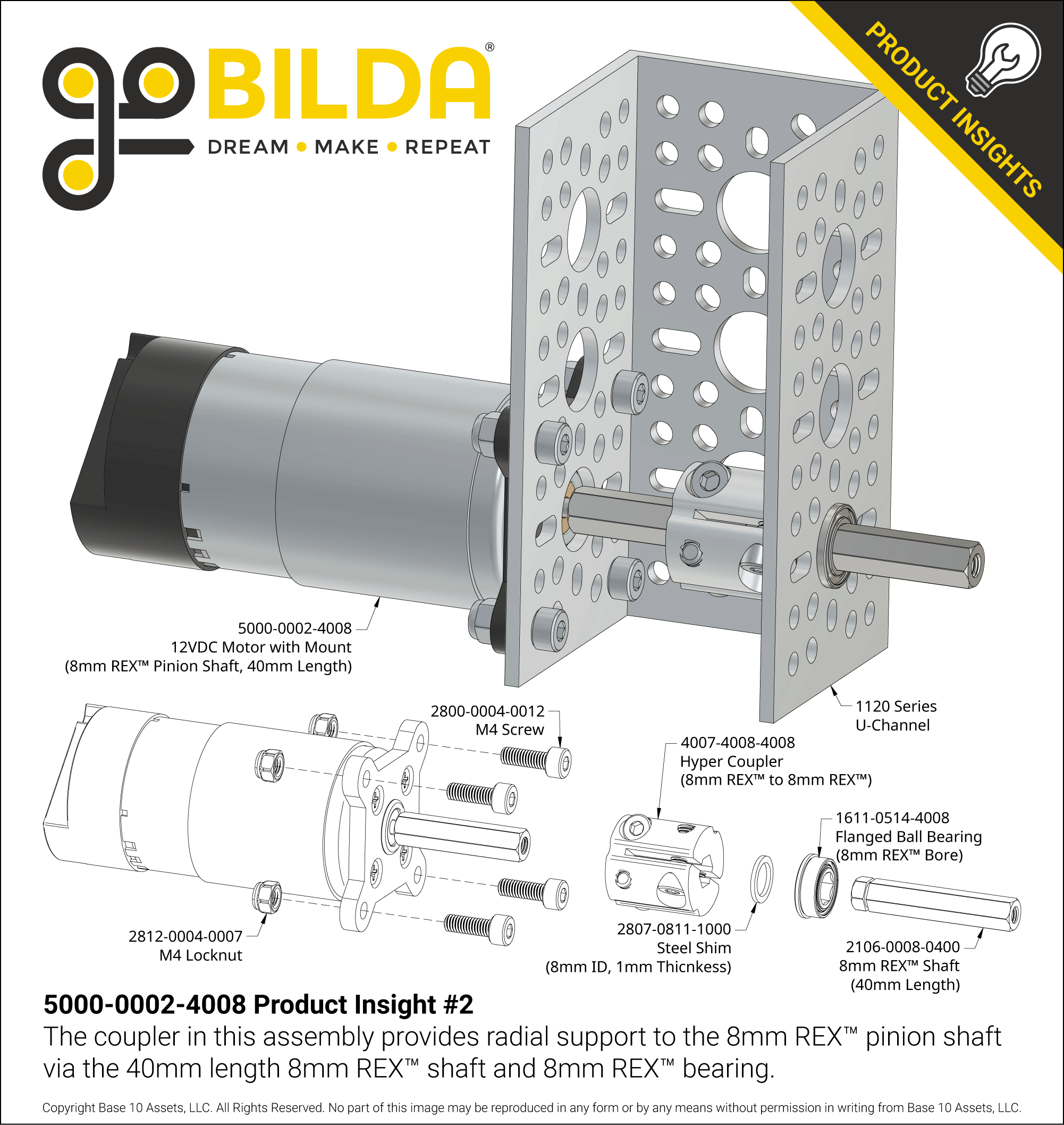

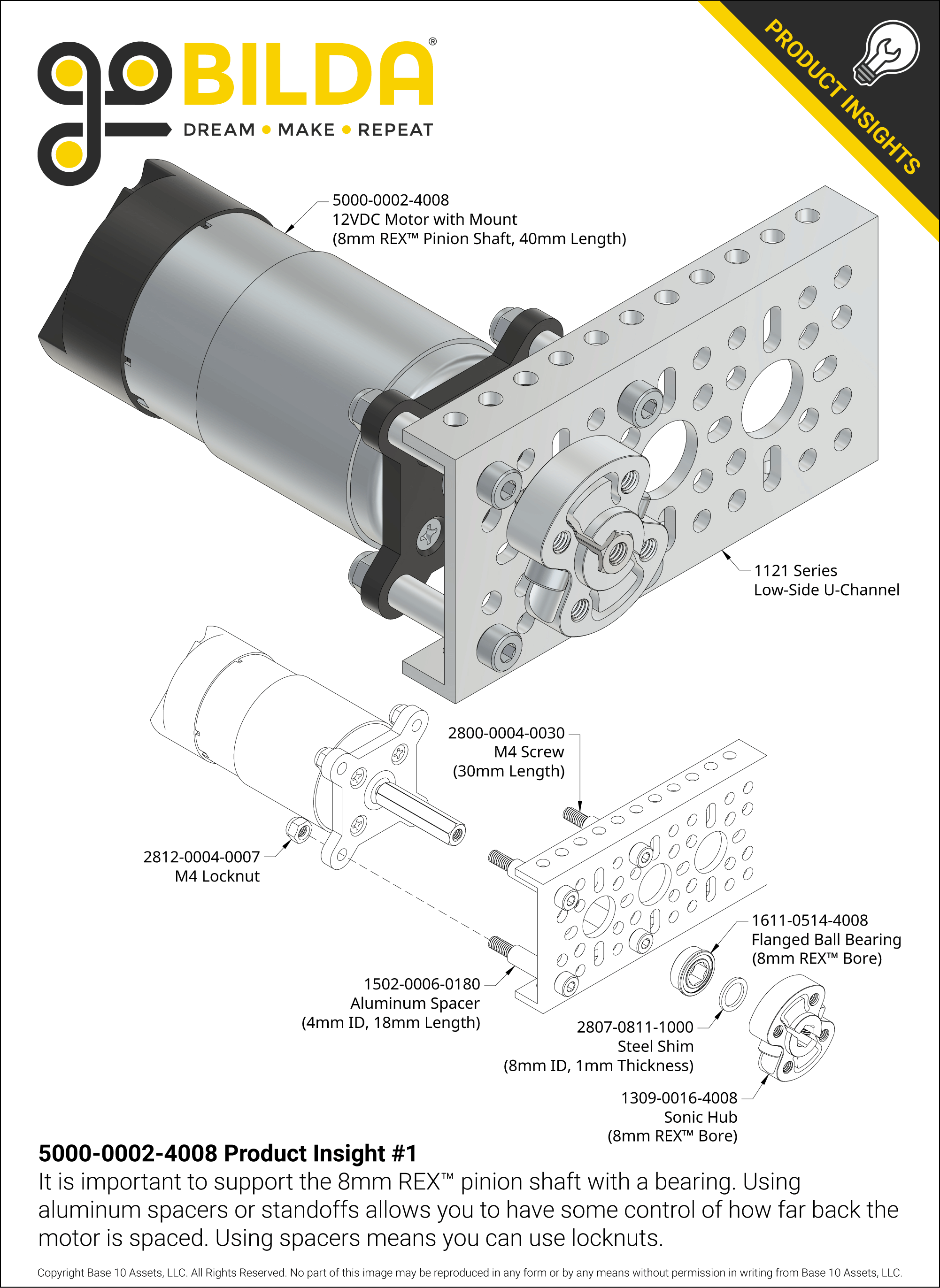

The 8mm REX™ output shaft extends 33.5mm from the plastic mounting plate, providing ample space to attach gears, pulleys, or hubs, while leaving room for an 8mm REX™ bearing for added support. This motor has a tested speed of 5800 RPM.
Specs
| Weight | 261g |
|---|---|
| Motor Type | Brushed DC |
| Nominal Voltage | 12VDC |
| No-Load Speed @ 12VDC (Theoretical) | 6000 RPM |
| No-Load Speed @ 12VDC (Tested) | 5800 RPM |
| No-Load Current @ 12VDC | 0.25A |
| Stall Current @ 12VDC | 9.2A |
| Stall Torque @ 12VDC | 1.47 kg·cm (20.45 oz-in) |
| Wire Length | 470mm (including connectors) |
| Motor Connector Type | 3.5mm FH-MC Bullet Connectors |
| Encoder Connector Type | 4-Pos JST XH [FH-MC] |
| Encoder Type | Relative, Quadrature |
| Encoder Sensor Type | Magnetic (Hall Effect) |
| Encoder Voltage Range | 3.3 – 5VDC |
| Encoder Cycles Per Revolution (Encoder Shaft) | 7 (Rises of Ch A) |
| Encoder Cycles Per Revolution (Output Shaft) | 7 (Rises of Ch A) |
| Encoder Countable Events Per Revolution (Encoder Shaft) | 28 (Rises & Falls of Ch A & B) |
| Encoder Countable Events Per Revolution (Output Shaft) | 28 (Rises & Falls of Ch A & B) |
