Hotrc HT-6A 2.4GHz 6CH PWM FHSS Transmitter & F-06A Receiver
Advanced Control & Performance
The Hotrc HT-6A is a 2.4GHz 6-channel PWM FHSS transmitter, designed to enhance the precision and control of your RC models. Whether you're piloting an airplane, car, ship, or tank, the HT6A's mixed control function offers seamless operation, allowing users to switch between 1/2CH, 2/4CH, and 1CH/2CH/4CH settings effortlessly.
Reliable Connectivity & Long-Range Operation
Equipped with FHSS (Frequency Hopping Spread Spectrum) technology, the HT6A transmitter interference-resistant connection. The included F-06A receiver is highly compatible with a wide range of RC models, offering a control distance of up to 300m on the ground and 800m in the air, providing extended operational range for both land and aerial applications.User-Friendly Design & Safety Features
- Weight: 365g
- Automatic Shutdown: After 15 minutes of inactivity, the transmitter powers down.
- Throttle Alarm: If the throttle is not at its lowest value upon startup, an alarm will sound.
- Locking Function: The remote can be locked to prevent unintended button presses.
- Fail-Safe Protection: In case of signal loss, the system automatically reduces throttle to its lowest value.
Specifications
- Suitable for: RC aircraft, cars, ships, and tanks
- Number of Channels: 6
- Transmission Power: ≈90mW
- Modulation Mode: GFSK
- Spread Spectrum: FHSS
- Response Speed: PWM ≤ 20ms
- Frequency Range: 2.4GHz ISM Band (2.4005-2.483.5GHz)
- Receiver Sensitivity: < -97dBm
- Receiver Power Supply: DC 4-9V
- Transmitter Power Supply: DC 4.5-9V
- Control Distance: ~300m on the ground, ~800m in the air
Usage Notes
- Maintain Line of Sight: The 2.4GHz band differs from low-frequency radio bands. Always keep your model within visible range during operation.
- Avoid Touching the Antenna: Gripping the transmitter antenna can weaken the wireless signal.

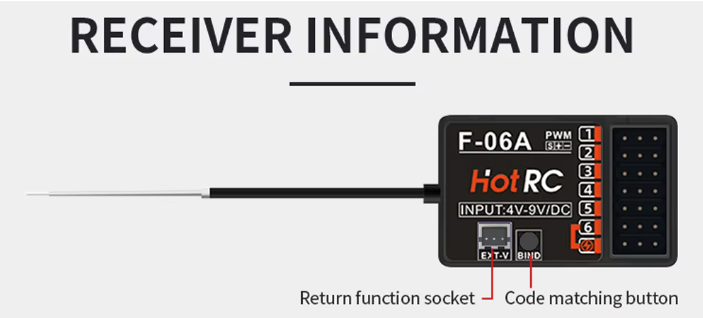

Product Introduction/Information:
WARNING
