80-piece set with 20 WH148 Potentiometers with values 5KΩ, 10KΩ, 20KΩ, 50KΩ and 100KΩ, 4 each, which also includes multi-colored knobs and single-colored washers and nuts.
Contents:
- 20× WH148 Potentiometers:
- 4× B5 kΩ
- 4× B10 kΩ
- 4× B20 kΩ
- 4× B50 kΩ
- 4× B100 kΩ
- 16x Plastic Colored knobs: 4 each color – Red, yellow, blue and white.
- 4x Aluminum knobs: Color: Black
- 20x Washers (Single Color)
- 20x Mounting nuts (Single Color)

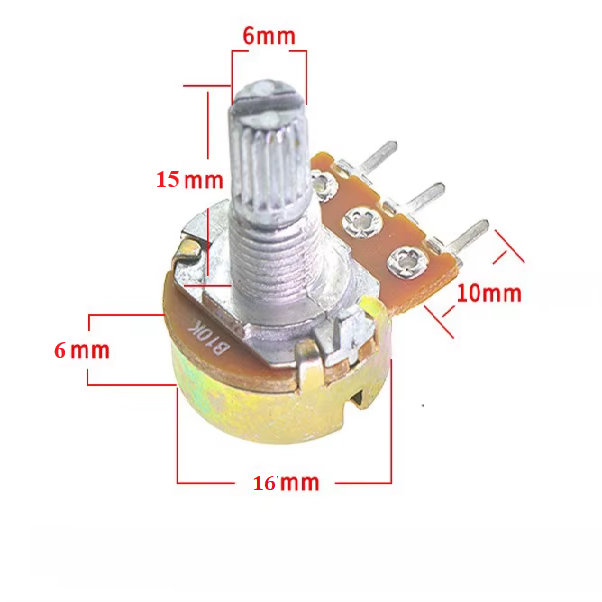

- Diameter: 16mm
- Shaft: 6mm diameter x 15mm height
- Spacing between pins (Side-to-side): 4.38mm
- Notes: Grooved Shaft
- Colors: Red, yellow, blue and white.
- Dimensions: 17mm high x 15.75mm wide
- Additonal Features: Plastic and Grooved
Audio Aluminum Knob Specifications:
- Color: Black
- Dimensions: 17mm x 12.32mm
- Additional Features: Metal and Grooved
- Dimensions: 17cm long x 10cm wide
