MAX7219 8x8 1088AS Red LED Dot Matrix Module 16-in-1 Display
This is a 16-in-1 MAX7219 8x8 Dot LED matrix for microcontrollers using 1088AS LED displays. Imagine being able to control not only 64 LEDs but 1024 LED’s. Works with Arduino, ESP32, Raspberry Pi, etc.
Specifications:

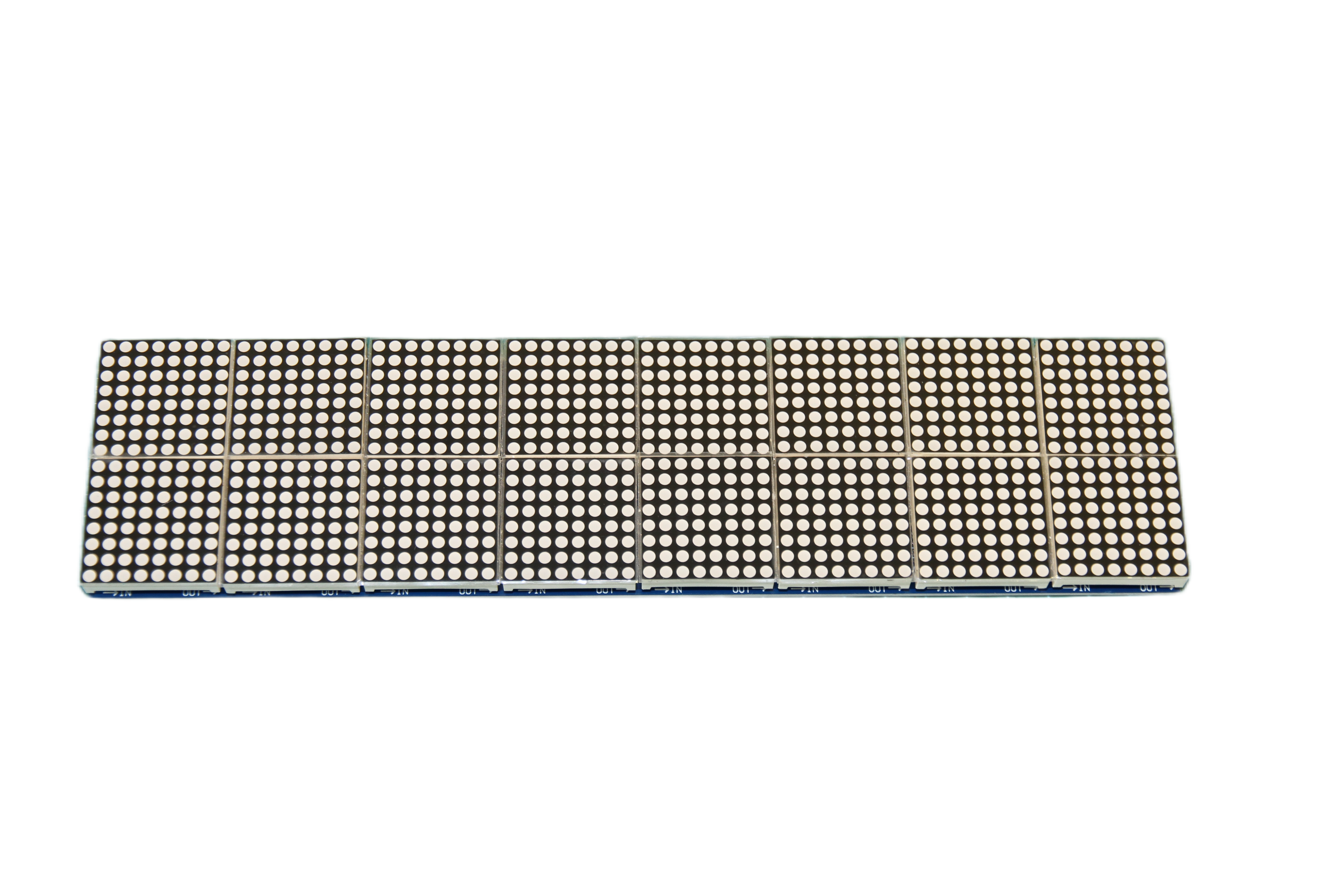

- LED Matrix Type: 1088AS (Red LEDs, Common Cathode)
- Matrix Resolution: 8x8 pixel per module (64 LEDs each)
- Total Modules: 16 (fixed on one PCB strip)
- Total Display Area: 64 x 16 pixels (1024 total LEDs)
- Operating Voltage: 5V DC
- LED colour: Red

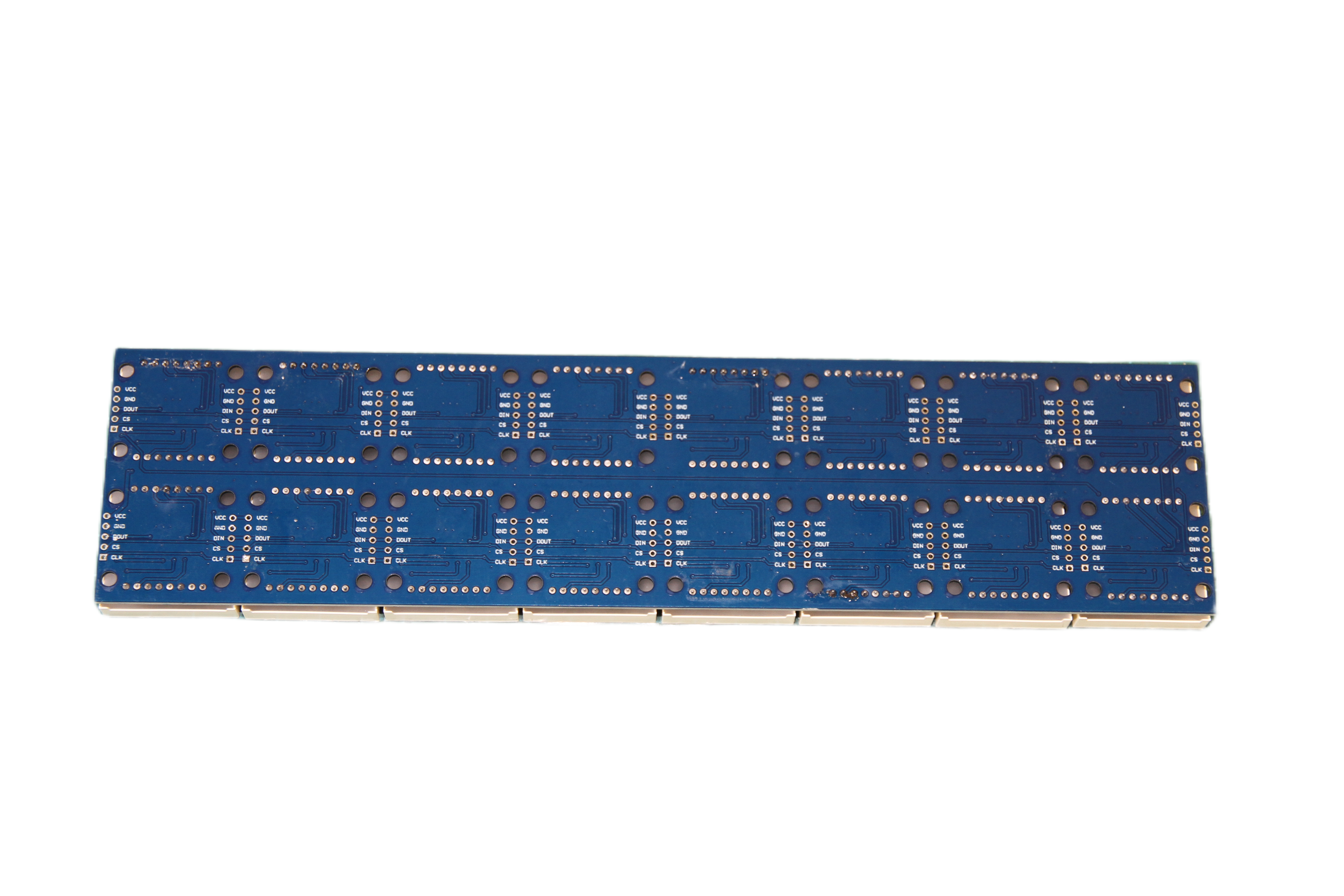

- PCB colour: Blue
- Dimensions (Approx.): 265mm x 65mm x 13mm (L x W x H)
- Pinouts: 2 x 16 sets of 5-pin headers (VCC, GND, DIN, CS, CLK)
Applications:
- Scrolling marquee text (e.g., store signage, messages)
- Digital clocks and timers
- Sensor readout displays (e.g., temperature, humidity)
- Animations and LED graphics
- Custom badge displays and wearables
- Scoreboards and counters
