AD16-22DS series 220V AC 22mm blue Panel Mount LED Indicator Light

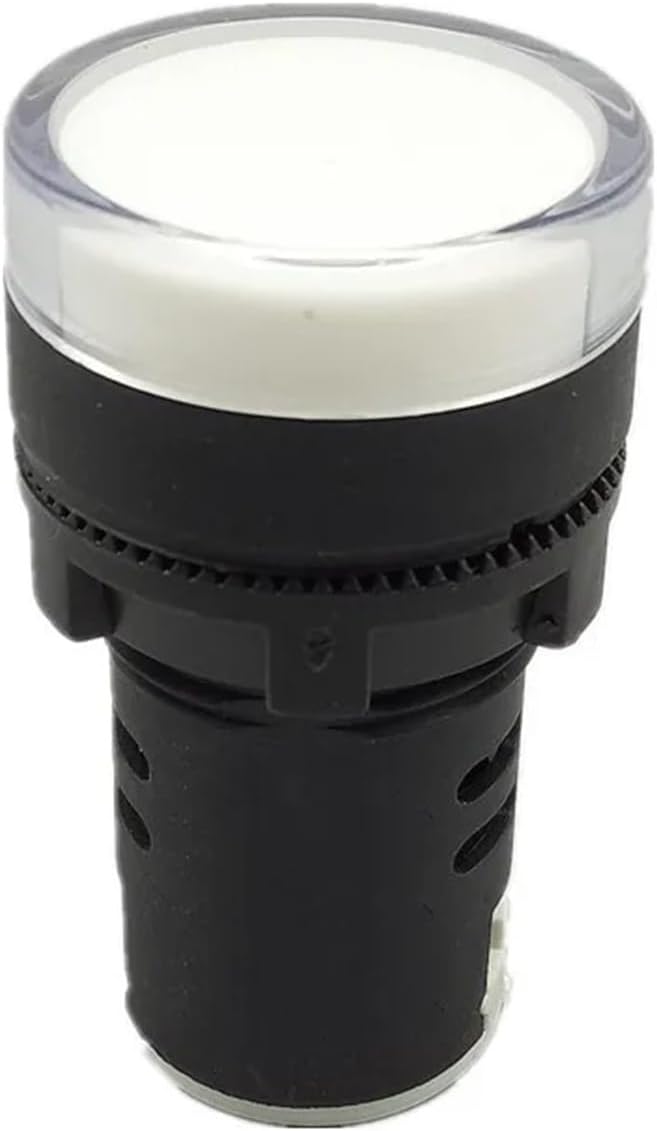

The white LED indicator light features a standard 22mm mounting size and operates at 220V AC with a current draw of 20mA or less. It is ideal for use in control panels, machinery interfaces, and industrial automation systems where low-current signaling or status indication is required.
Specifications:
- Model #: AD16-22DS
- LED Color: White

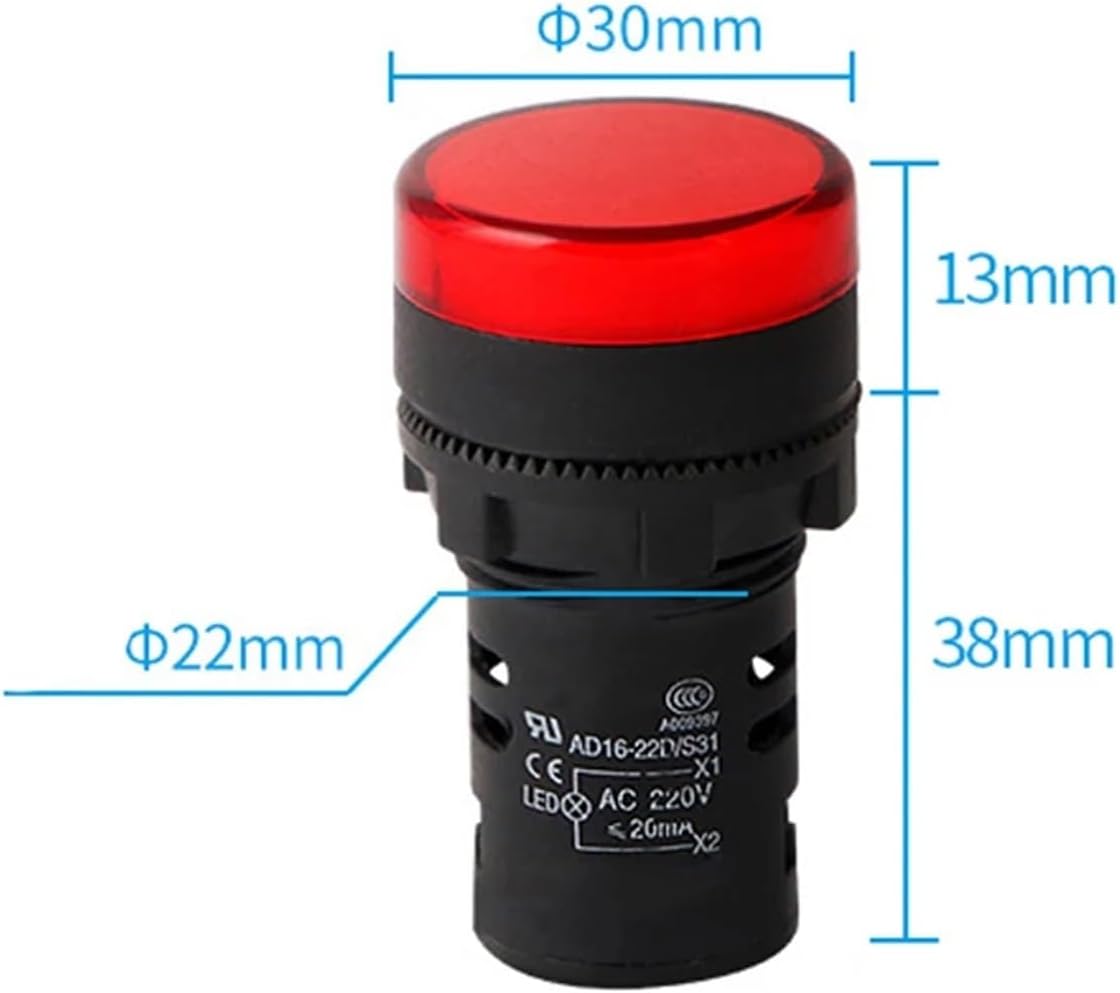

- Mounting Hole Size: 22mm (standard panel cutout)
- Operating Voltage: AC 220V
- Current Consumption: ≤ 20mA
- Lens & Body Material: Plastic
- Mounting Type: Twist-to-lock panel mount with threaded securing nut
- IP Rating: IP65 (splash-resistant front panel)
- Operating Temperature: -25°C to +55°C
