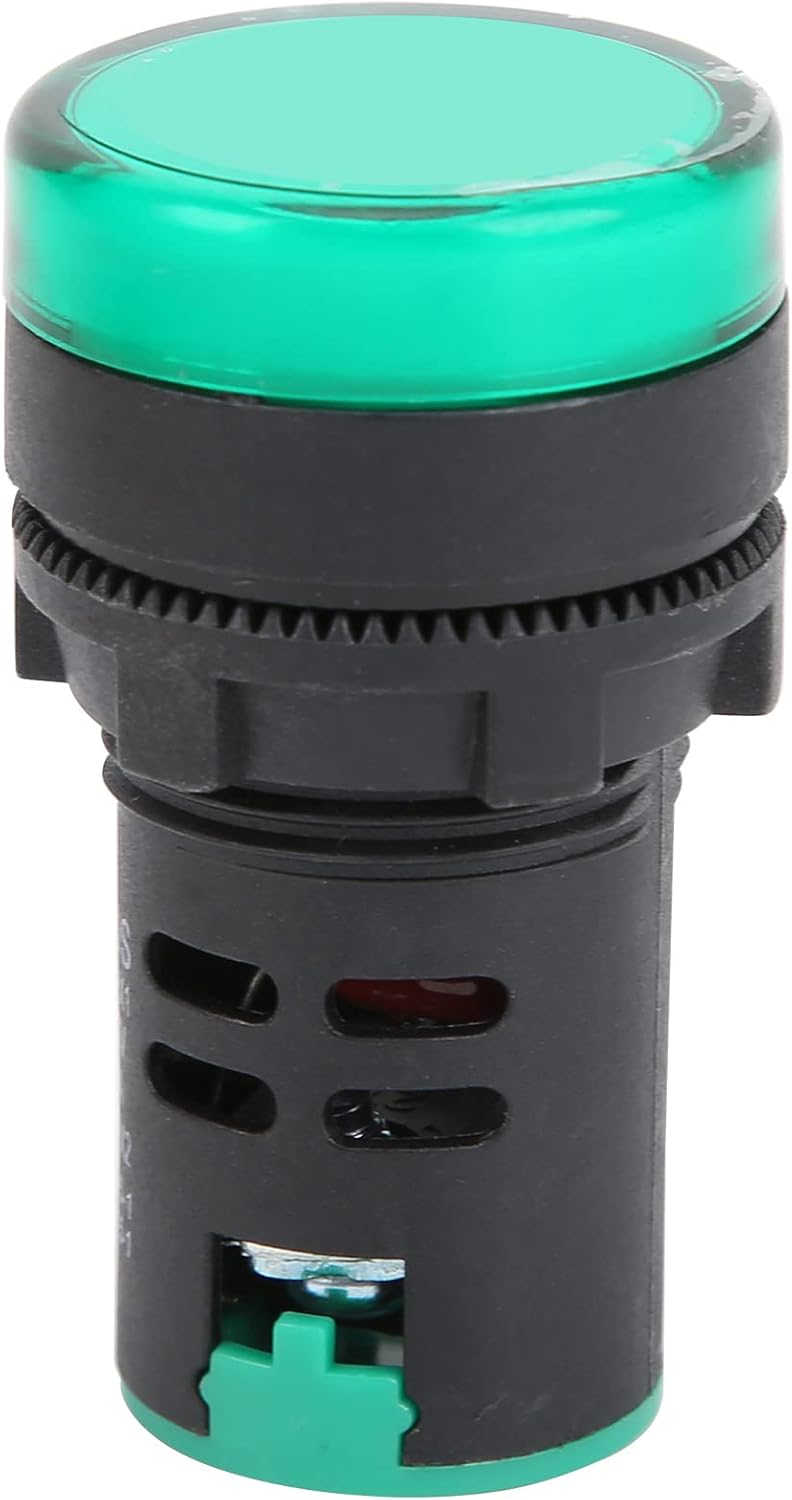

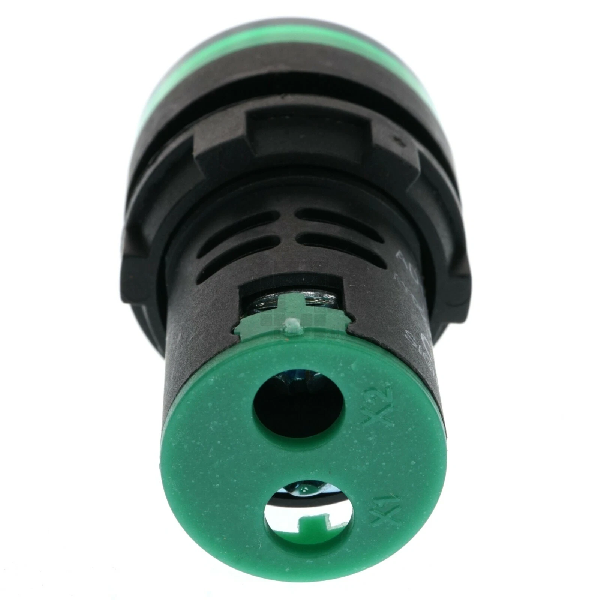

AD16-22DS series 12V 22mm Green Panel Mount LED Indicator Light
The green LED indicator light features a standard 22mm mounting size and operates around 12V AC/DC with a current draw of 20mA or less. It is ideal for use in control panels, machinery interfaces, and industrial automation systems where low-current signaling or status indication is required.
Specifications:
- Model #: AD16-22DS
- LED Color: Green
- Mounting Hole Size: 22mm (standard panel cutout)
- Operating Voltage: 12V AC/DC
- Current Consumption: ≤ 20mA
- Lens & Body Material: Plastic
- Mounting Type: Twist-to-lock panel mount with threaded securing nut
- IP Rating: IP65 (splash-resistant front panel)
- Operating Temperature: -25°C to +55°C
