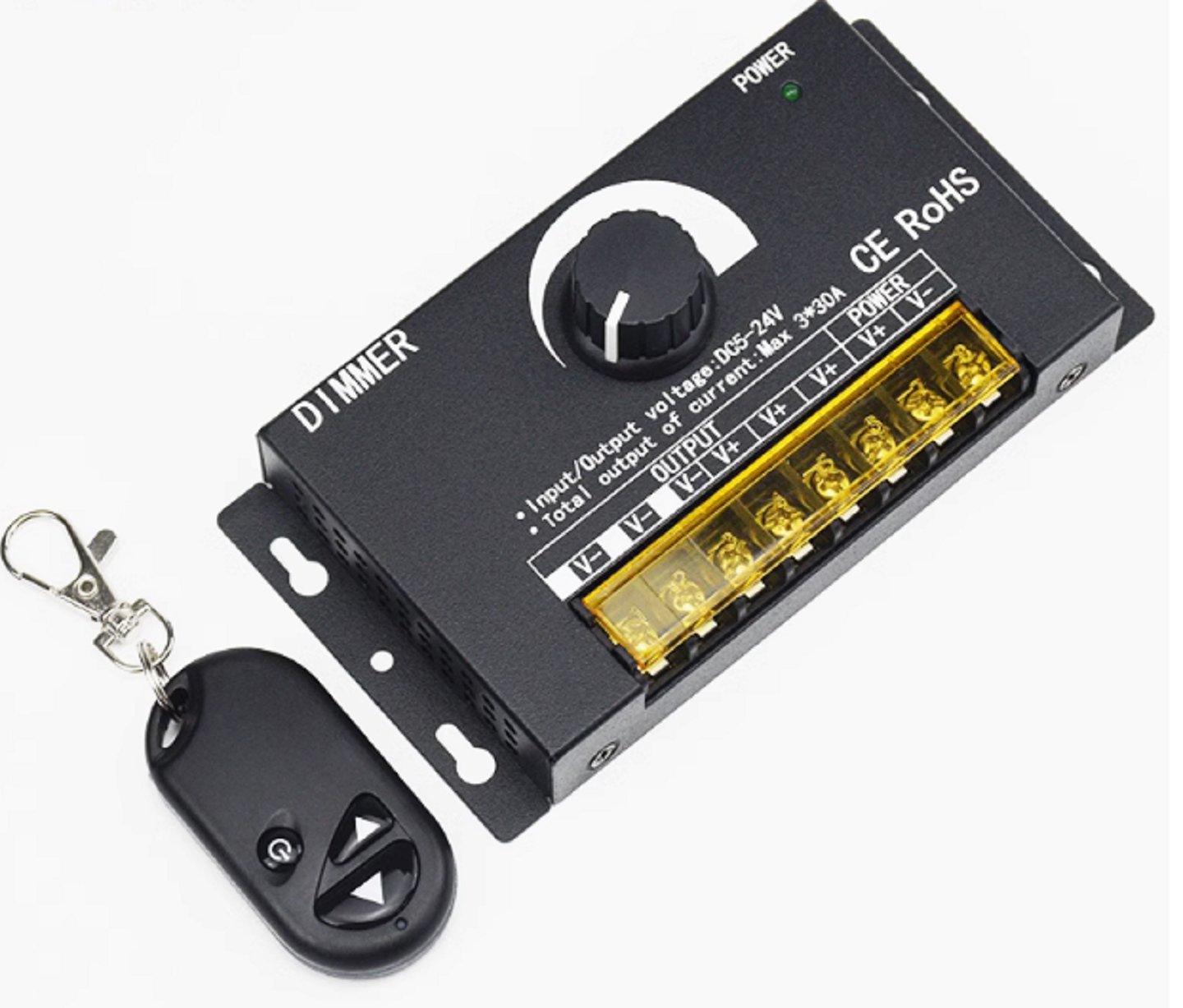

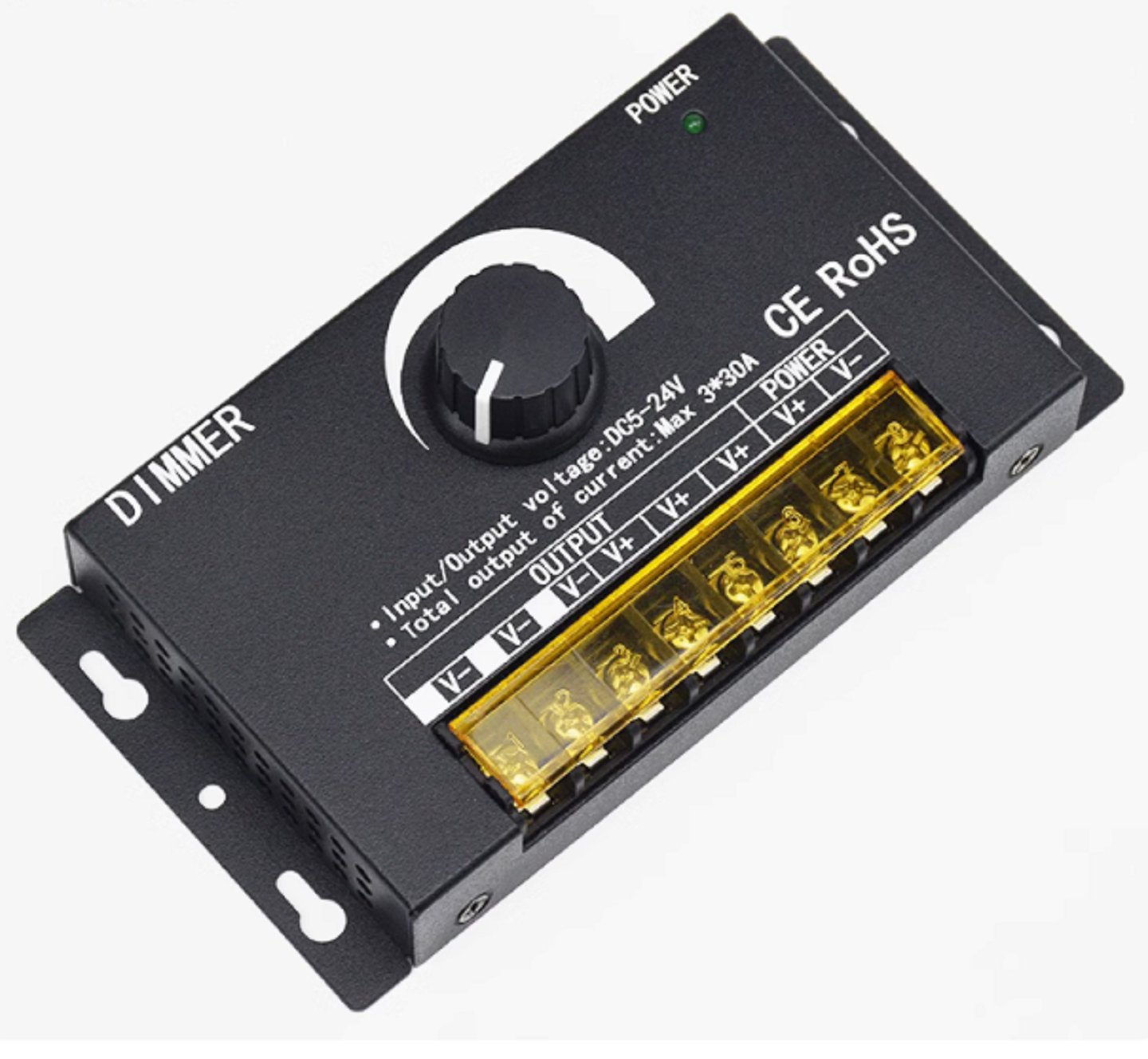

Smoothly control LED brightness with this 90A dimmer for 5–24V single-color strips. Includes knob control and wireless remote for flexible lighting adjustment.
Specifications:- Input Voltage: DC 5-24V
- Max Current: 90A
- Power Capacity:
- 5V: up to 450W
- 12V: up to 1080W
- 24V: up to 2160W
- Dimming Range: 0% to 100% with flicker-free PWM digital dimming
- Brightness Adjustment: Soft and stable, no flicker or impulse current
- Control Modes: Knob rotation and wireless remote control (range > 20 meters)
- Operating Temperature: -20°C to 60°C
- Size: 147 x 75 x 40 mm
- Material: Durable iron shell
- Connect the load wires first, then the power wires. Ensure there is no short circuit.
- Use the knob to adjust brightness smoothly: clockwise to increase, counterclockwise to decrease until off.
- Designed for single-color LED strips (e.g., 5050, 3528)
- Not suitable for multi-color (RGB) LED strips, CFLs, bulbs, fans, or other appliances
