WAVE-30326, 8inch DSI Capacitive Touch Display, 800×1280, IPS Panel, 10-Point Touch

The Waveshare 30326 is the 8-DSI-TOUCH-A module, which is an 8inch DSI Capacitive Touch Display, with 800×1280 resolution, IPS Panel, Optical Bonding Toughened Glass Panel, and 10-Point Touch.

Part No: 8-DSI-TOUCH-A

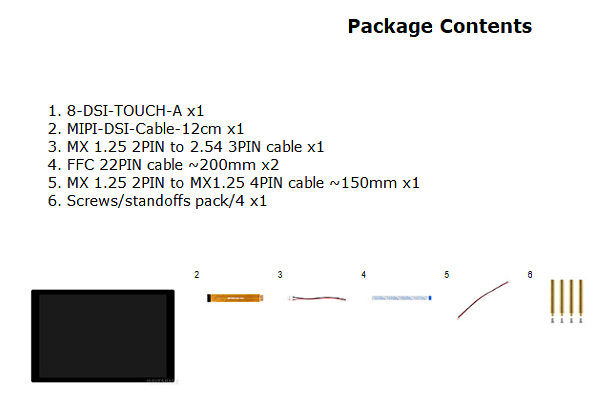

* for reference only, the controller boards or hosts are NOT included

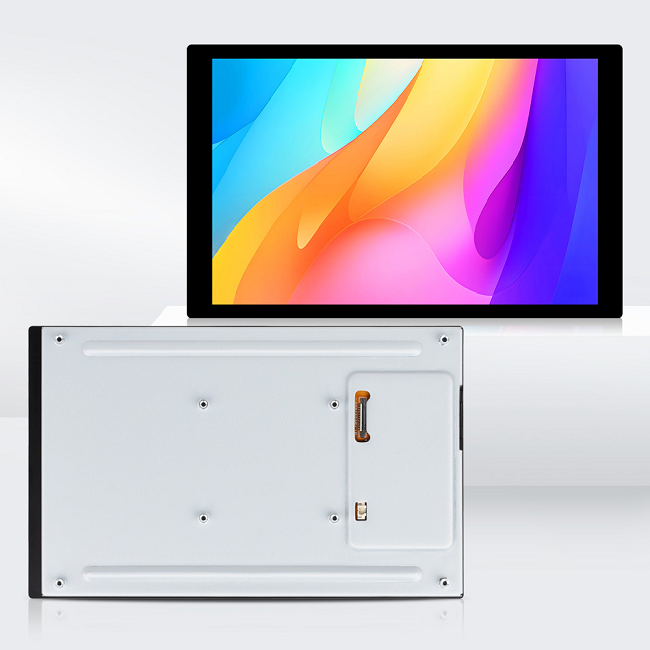

8″ DSI Capacitive Touch Display

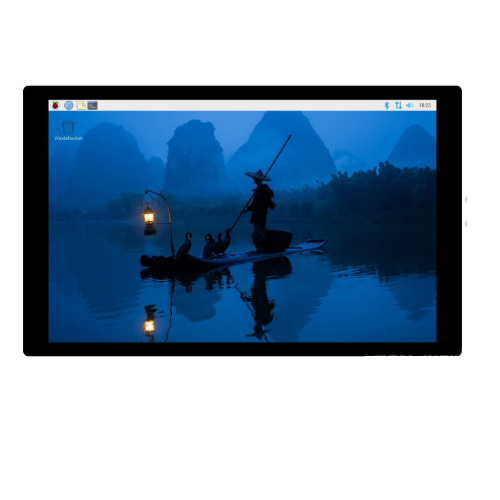

The display orientation is set to portrait by default, with 800×1280 resolution (H×V).
Change the software configuration for landscape display.

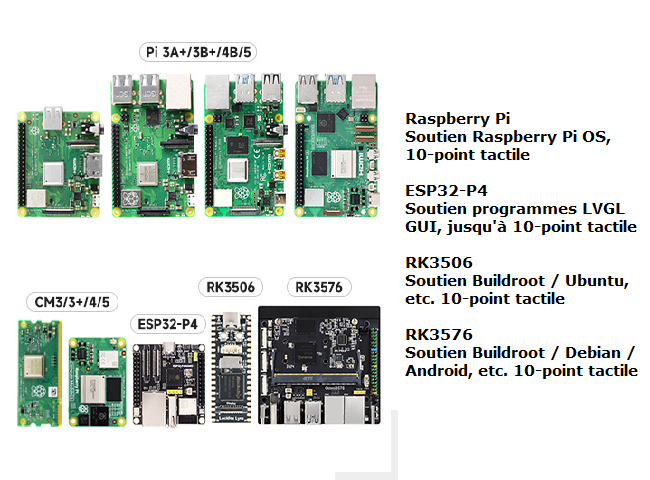

Device & System Support

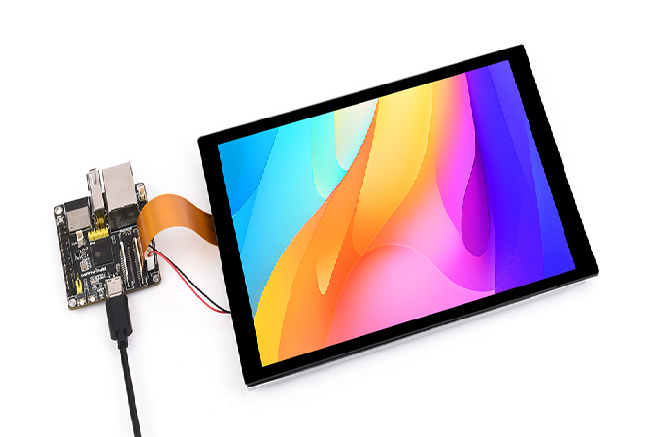

Connection examples

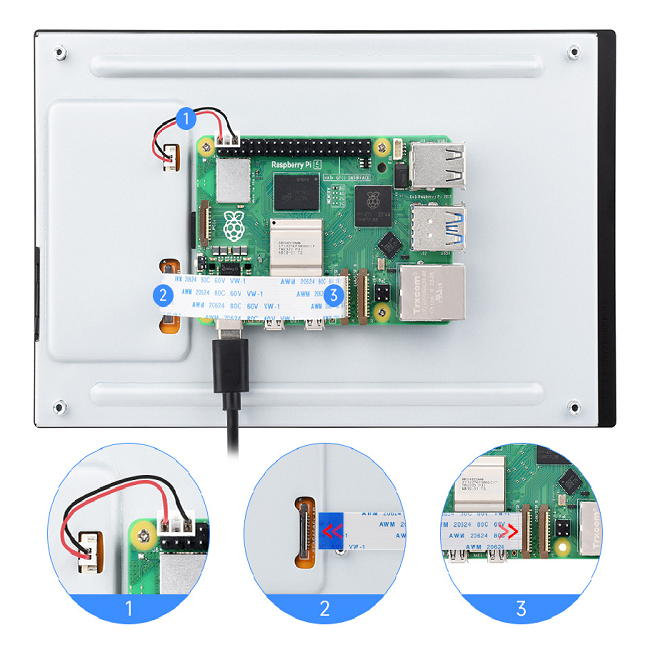

Connecting to Raspberry Pi 5

Connecting to ESP32-P4-NANO

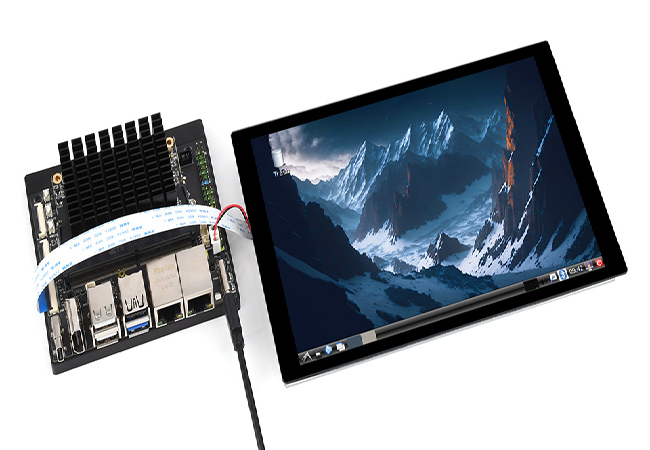

Connecting to Luckfox-Omni3576 Development Board

Connecting to Luckfox Lyra Development Board

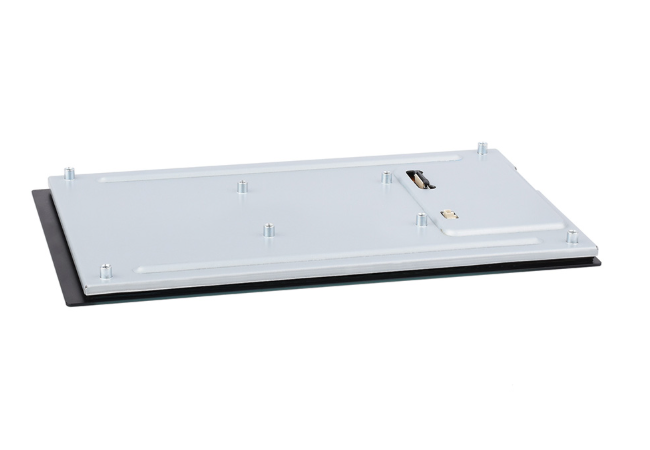

Thinner and more space-saving

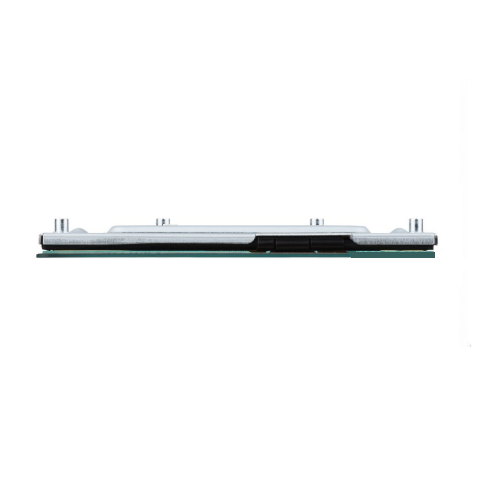

Integrates the driver circuit into an FPC cable, the total thickness of the LCD is only 11.6mm

IPS Display Panel
Excellent Display Performance With 178° Wide Viewing Angle

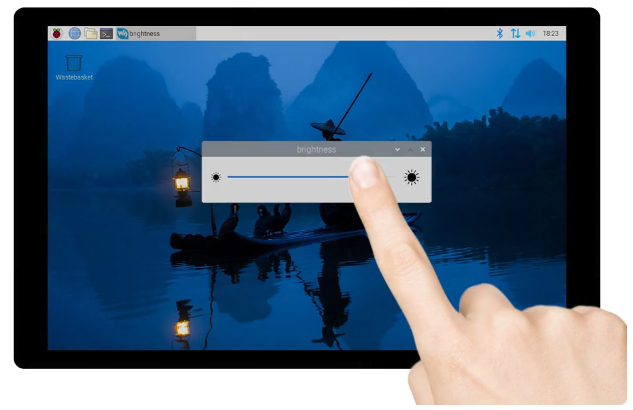

10-Point Capacitive Touch
1. up to 10-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel
3. Optical bonding provides clear image, dustproof.
