The Waveshare 25269 is the 7inch DSI LCD (B) module, which is a 7inch Capacitive Touch Display, with DSI Interface, IPS Screen, 800×480, 5-Point Touch.
Part #: 7inch DSI LCD (B)
Note: Display only.

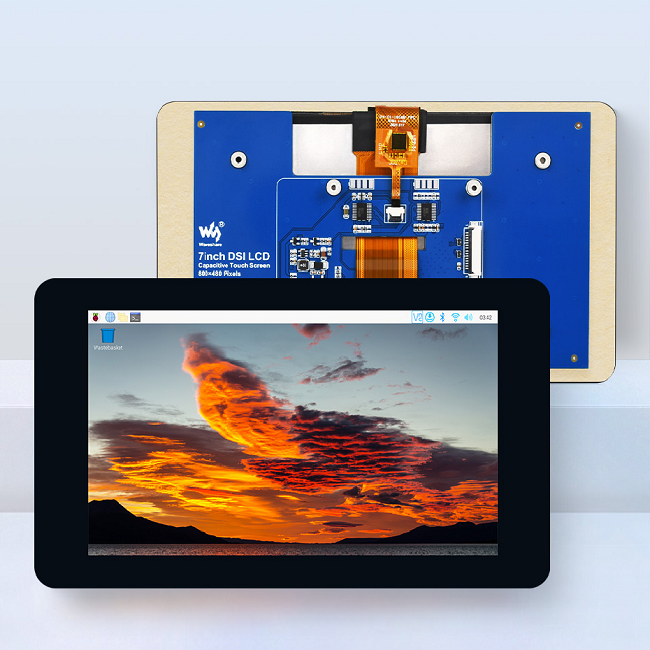

7″ DSI Touch Display
Multi-touch | With Case (Optional)

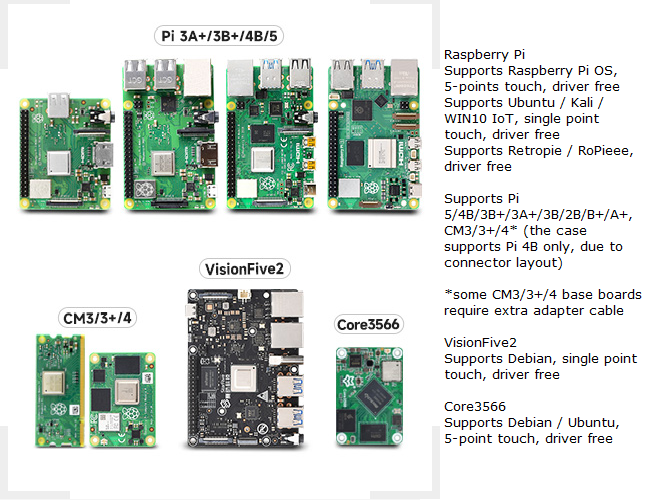

Device & System Support

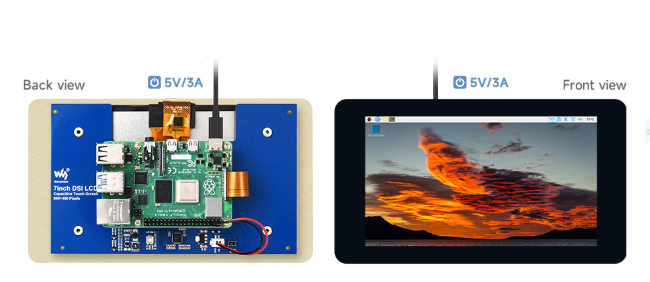

Working with Raspberry Pi 4B
The display only

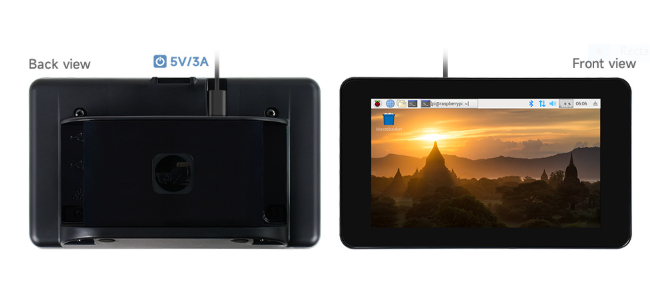

The display with case
* The black and white cases support Pi 4B only, due to connector layout
Working with Raspberry Pi 3B+

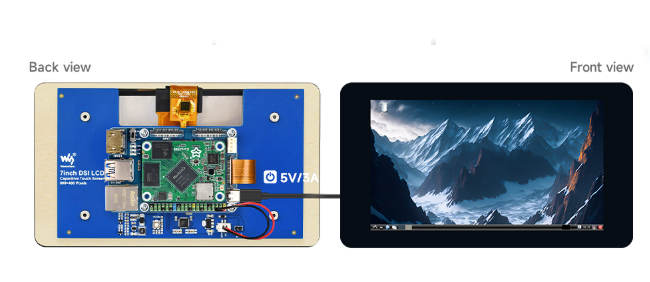

Working with Core3566 to Pi 4B Kit

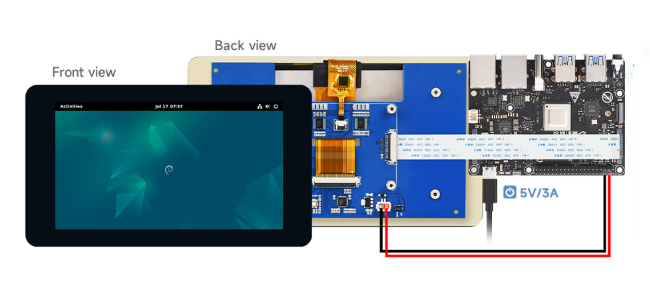

Working with VisionFive2
IPS Display Panel
Excellent Display Performance With 170° Wide Viewing Angle
High quality picture, clear and bright
New generation IPS LCD screen with more natural gradual color change
Display Color is More Vivid
Better visual experience with more color details on the screen

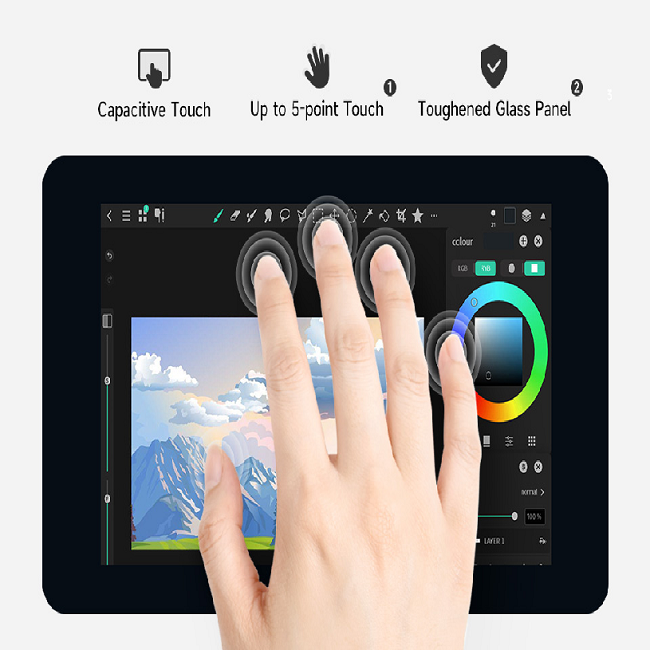

Capacitive 5-point Touch
1. up to 5-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel

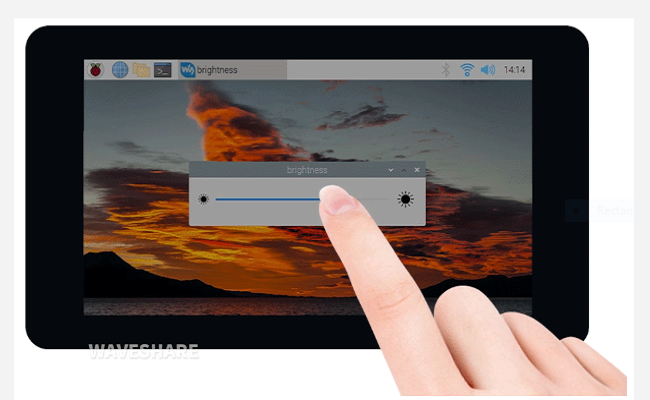

Adjustable Brightness Via Software

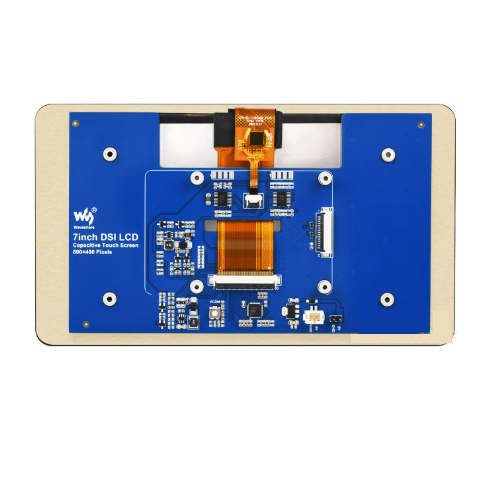

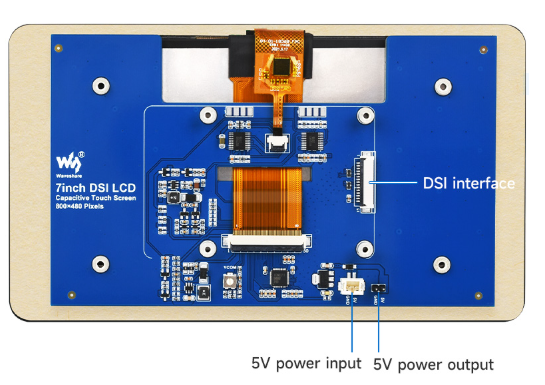

Interface Introduction
The display only

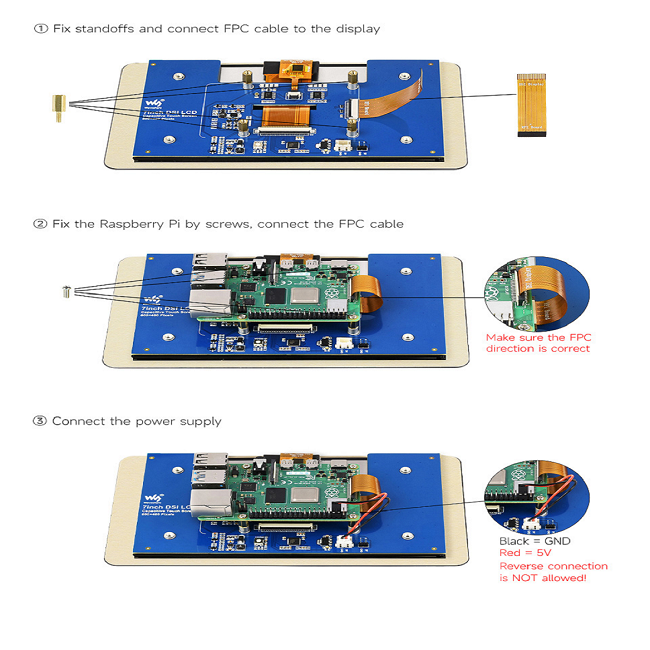

How to install

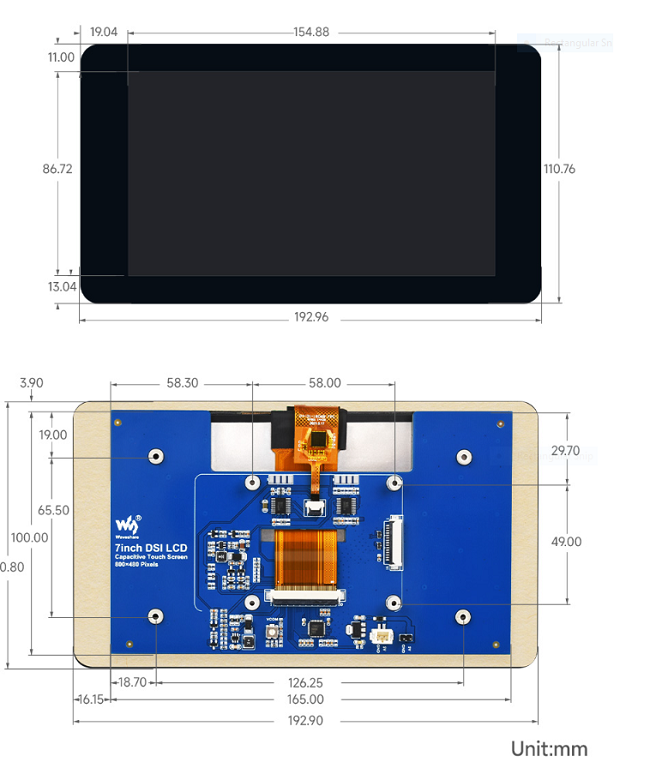

Contour Dimensions
Wiki: 7inch_DSI_LCD_(B)
